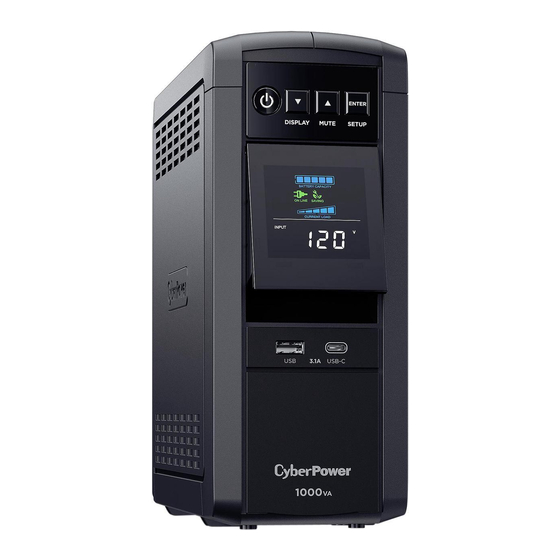

CyberPower CP1000PFCLCD PFC Sinewave UPS System,

1000VA/600W, 10 Outlets, AVR, Mini-Tower

User Manual of Product 2:

CyberPower CP850PFCLCD PFC Sinewave UPS System,

850VA/510W, 10 Outlets, AVR, Mini-Tower

Table of Contents

Need help?

Do you have a question about the CP1000PFCLCD and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberPower CP1000PFCLCD

Page 1 User Manual of Product 1: CyberPower CP1000PFCLCD PFC Sinewave UPS System, 1000VA/600W, 10 Outlets, AVR, Mini-Tower User Manual of Product 2: CyberPower CP850PFCLCD PFC Sinewave UPS System, 850VA/510W, 10 Outlets, AVR, Mini-Tower...
Page 2 YOUR ULTIMATE ALLY IN POWER PFC SINEWAVE UPS SERIES CP1350PFCLCD/1500PFCLCD USER MANUAL FEATURES Power Switch 9. Full-Time Surge Protection Outlets 2. Power On Indicator 10. Circuit Breaker 3. LCD Module Display 11. DB9/USB Ports to PC 4. Down/Display Button 12. Wiring Fault Indicator (red) 5.
Page 3: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed power protection, operation, and performance during the lifetime of the product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft, and entitles you to free technical support.
Page 4: Installing Your Ups System
80% of the unit’s rated capacity. SUPPORTS Active PFC POWER SUPPLIES This CyberPower UPS system supports High HARDWARE INSTALLATION GUIDE Efficiency power supplies with Active Power 1. Your new UPS may be used immediately Factor Correction (Active PFC).
Page 5 CYBERPOWER GREENPOWER UPS™ TECHNOLOGY Advanced Energy-Saving Patented Bypass Technology CyberPower’s patented GreenPower UPS™ with Bypass Technology reduces UPS energy costs by up to 75% compared to conventional UPS models. Even when utility power is normal, conventional UPS models constantly pass power through a transform- er.
Page 6: Basic Operation
BASIC OPERATION 1. Power Switch (DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum cleaner, sump Used as the master on/off switch for pump, or other large electrical device into equipment connected to the battery power the “Battery and Surge Protected Outlets.” supplied outlets.
Page 7: Replacing The Battery
1. When replacing batteries, replace with the 5. CAUTION: A battery can present a risk same number of the following battery: CyberPower / RB1270X2C for the of electrical shock and high short circuit CP1350PFCLCD; CyberPower / RB1290X2 current. The following precautions should for the CP1500PFCLCD.
Page 8: Definitions For Illuminated Lcd Indicators
UPS system is receiving from the utility E01: Charger Fault – Overcharge wall outlet. The UPS is designed, through (Contact CyberPower Systems for support.) the use of automatic voltage regulation, to continuously correct output voltage to E02: Charger Fault – No Charge connected equipment to a safe 110/120 (Contact CyberPower Systems for support.)
Page 9: Troubleshooting
The UPS will not turn on. Contact CyberPower Systems The battery is worn out. about replacement batteries at: cyberpowersystems.com/support. Contact CyberPower Systems at: Mechanical problem. cyberpowersystems.com/support. Connect the USB / serial cable to the UPS unit and an open USB The USB cable is not connected.
Page 10: Technical Specifications
TROUBLESHOOTING Problem Possible Cause Solution Shutdown your computer and turn The unit is not providing battery the UPS off. Wait 10 seconds and power. turn the UPS back on. This should PowerPanel® is inactive reset the unit. (all icons are gray). Please use the serial cable The serial cable is not the cable that came with the unit for...
Page 11: Fcc Compliance Statement
State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. © 2021 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc. All rights reserved. All other trademarks are the property of their respective owners.
Page 12 YOUR ULTIMATE ALLY IN POWER PFC SINEWAVE UPS SERIES CP1350PFCLCD/1500PFCLCD USER MANUAL FEATURES Power Switch 9. Full-Time Surge Protection Outlets 2. Power On Indicator 10. Circuit Breaker 3. LCD Module Display 11. DB9/USB Ports to PC 4. Down/Display Button 12. Wiring Fault Indicator (red) 5.
Page 13 PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed power protection, operation, and performance during the lifetime of the product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft, and entitles you to free technical support.
Page 14 80% of the unit’s rated capacity. SUPPORTS Active PFC POWER SUPPLIES This CyberPower UPS system supports High HARDWARE INSTALLATION GUIDE Efficiency power supplies with Active Power 1. Your new UPS may be used immediately Factor Correction (Active PFC).
Page 15 CYBERPOWER GREENPOWER UPS™ TECHNOLOGY Advanced Energy-Saving Patented Bypass Technology CyberPower’s patented GreenPower UPS™ with Bypass Technology reduces UPS energy costs by up to 75% compared to conventional UPS models. Even when utility power is normal, conventional UPS models constantly pass power through a transform- er.
Page 16 BASIC OPERATION 1. Power Switch (DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum cleaner, sump Used as the master on/off switch for pump, or other large electrical device into equipment connected to the battery power the “Battery and Surge Protected Outlets.” supplied outlets.
Page 17 1. When replacing batteries, replace with the 5. CAUTION: A battery can present a risk same number of the following battery: CyberPower / RB1270X2C for the of electrical shock and high short circuit CP1350PFCLCD; CyberPower / RB1290X2 current. The following precautions should for the CP1500PFCLCD.
Page 18 UPS system is receiving from the utility E01: Charger Fault – Overcharge wall outlet. The UPS is designed, through (Contact CyberPower Systems for support.) the use of automatic voltage regulation, to continuously correct output voltage to E02: Charger Fault – No Charge connected equipment to a safe 110/120 (Contact CyberPower Systems for support.)
Page 19 The UPS will not turn on. Contact CyberPower Systems The battery is worn out. about replacement batteries at: cyberpowersystems.com/support. Contact CyberPower Systems at: Mechanical problem. cyberpowersystems.com/support. Connect the USB / serial cable to the UPS unit and an open USB The USB cable is not connected.
Page 20 TROUBLESHOOTING Problem Possible Cause Solution Shutdown your computer and turn The unit is not providing battery the UPS off. Wait 10 seconds and power. turn the UPS back on. This should PowerPanel® is inactive reset the unit. (all icons are gray). Please use the serial cable The serial cable is not the cable that came with the unit for...
Page 21 State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. © 2021 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc. All rights reserved. All other trademarks are the property of their respective owners.
