Manufacturer:
Model Number(s):
Minimum Core Module Version:
Comments:
Document Revision Date:
O
S
VERVIEW AND
UPPORTED

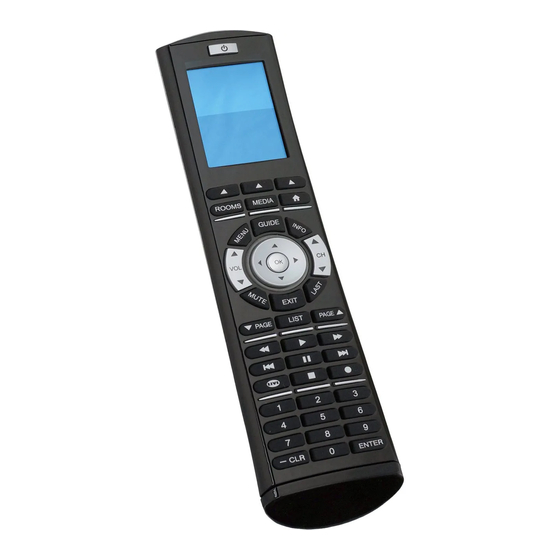

The HR2 Handheld Remote Control utilizes instant-on WiFi technology to provide a quick and seamless
interface to a g! system for control of media devices and various subsystems in the home. The remote
includes a touch screen interface for feedback and control plus adds several of the most common hard
buttons found on typical universal remotes.
Important! The HR2 remote is not compatible with legacy HomeBrick and MultiBrick controllers.
T
HR2 H
R
HE
ANDHELD
EMOTE
Wireless Connectivity: The HR2 connects via Wi-Fi and can be used up to 30' from its WAP. See the
Wi-Fi connections section below for details on the HR2 compatibility.
System Mode Control: The home interface may be optionally configured to provide system mode status
and control.
Current Weather and Forecast information: The home interface may be optionally configured to
display basic weather conditions and forecast information. (USA ONLY) Press and hold the home icon
on the HR2 main menu page to access the house mode and all weather pages.
Lighting Control: The lighting interface can be configured to display one or more custom lighting
keypads and custom lighting pages on the touchscreen interface for 2-way control of scenes or lighting
devices. Lighting scheduling is not supported. Press and hold the lighting icon on the HR2 main menu
page to access the lighting keypad and lighting custom page list.
Security Control: The security interface can be configured to display status of one or more partitions on
the touchscreen interface and provides a keypad to arm/disarm the security panel. Press and hold the
security icon on the HR2 main menu page to access the security partition list.
Climate Control: The climate interface displays status of one or more climate zones and provides mode
and fan control plus climate set point adjustments. Scheduling and custom tabs are not supported.
Press and hold the climate icon on the HR2 main menu page to access the climate zone list.
Media Control: The media touchscreen interface displays status of one or more media zones and
provides an interface for source selection and control. Press and hold the media icon on the HR2 main
menu page to access the media zone list. The touchscreen interface provides metadata feedback for
supported two way devices or customizable single or multi-page interfaces for one way device control.
Custom controls that are supported for use on the remotes touchscreen UI are: Audio Button, Audio
Keypad, Audio Keypad Text View, Audio Mode Control, Audio Sound Adjust, Channel Favorite Button, &
Static Text control. See other limitations below.
OSD Control: The HR2 remote can be used to navigate the On Screen Display.
ELAN Home Systems ● 1690 Corporate Circle ● Petaluma, CA 94954 USA
tech support: 800.622.3526 • main: 760.710.0990 • sales: 877.289.3526 • email: elan@elanhomesystems.com
©2013 ELAN Home Systems. All rights reserved. ELAN and g! are trademarks of ELAN Home Systems. All other trademarks are the property of their respective owners.
ELAN Home Systems
HR2 Wi-Fi Handheld Remote Control
g! 5.2 build 562
ELAN HR2 – Main Application 1.0.1.6, Boot loader version 1.0.0.3
USB MSD Version 1.0.1.6, Radio Configurator version 1.0.1.6
04/24/2015
F
EATURES
C
S
ONTROL
UPPORTS THE FOLLOWING FEATURES
Integration Note
:
Advertisement
Related Manuals for Elan HR2
Summary of Contents for Elan HR2
- Page 1 ELAN Home Systems ● 1690 Corporate Circle ● Petaluma, CA 94954 USA tech support: 800.622.3526 • main: 760.710.0990 • sales: 877.289.3526 • email: elan@elanhomesystems.com ©2013 ELAN Home Systems. All rights reserved. ELAN and g! are trademarks of ELAN Home Systems. All other trademarks are the property of their respective owners.
-
Page 2: Installation Overview
HR2. IR Blaster: The HR2 includes an IR blaster for providing power control of a video display where it is not possible to run an IR emitter or other control method to the display. - Page 3 2. Verify the HR2 firmware is as indicated in this document header or newer. If the firmware is not the minimum from this document header then stop and contact ELAN tech support for details on updating.
- Page 4 Controller. (Note: Your HC Controller must be assigned a static IP for this function!) 13. Enter your predetermined static IP address for the HR2 in the HR2 IP field. Note the static IP must be outside of the network DHCP range, and not currently in use by another device. If you do not know this address you will need to get it from your network administrator.
- Page 5 19. Once the remote is online and associated you can check the remotes name by pressing the Menu and Info button at the same time. The HR2 Screen will display the name as it is in the configurator on the interface tab. This is useful to identify which remote you are working on if you have multiple remotes in one install.
- Page 6 Notes: 1. The HR2 remotes are automatically discovered; refer to Initial Configuration Notes above 2. If not already chosen, select the COM device that refers to the HR2 Comm. Device set above 3. Select the desired Power button behavior 4. Select the desired return to media control time 5.
- Page 7 LASTER The HR2 can be used to flash IR out of its front IR blaster for local control of video displays when it is not possible to run an IR emitter or other control method to the display. Configuring the remote for local IR control is done in a similar fashion to any IR control in g!.
- Page 8 2) WPA-PSK + AES 3) WPA2-PSK + TKIP 4) WPA-Enterprise 5) WPA2-Enterprise These options are not supported because the radio module in the HR2 doesn’t implement them. What encryption types are supported 1) No encryption 2) 128 bit WEP 3) WPA-PSK + TKIP 4) WPA2-PSK + AES There are a few terms here which can appear with different names on different access points.
- Page 9 ELAN has verified the HR2 performance with the ELAN HWRTR100 router/access point. ELAN strongly recommends that you use this device as the router when using an HR2 in your installation. Due to the quantity of wireless access points available on the market today and their complexity ELAN tech support will not be able to provide support for connecting an HR2 to any wireless access point or wireless router other than the HWRTR100.
- Page 10 If it still fails then check the table above for encryption settings that work with the ELAN HWRTR100 and try another encryption method. b. If this test fails then your WAP may be faulty or incompatible with the HR2. Try using the ELAN HWRTR100.
-
Page 11: Common Mistakes
4. Incorrect universal function mapping for source control. Verify your button mapping on your source device page. 5. Actiontec routers – there have been a few reports of issues with the HR2 remotes communicating within an Actiontec served network. If you are using an Actiontec router and are seeing problems with HR2 communications then you will need to add the ELAN D-Link router behind the Actiontec router to resolve the problem. - Page 12 2. Heavy traffic may affect download times When a download to an HR2 is in progress, the amount of traffic on the Wireless Router / Access Point may affect the download times. Under extremely heaving traffic, downloads may fail and will be restarted.
- Page 13 While connected to the weaker signal, the HR2 performance may be degraded slightly. Once the HR2 goes to sleep and is awoken at a later time, it will attempt to connect to the stronger signal. If the nearest Access Point is not under heavy traffic at this time, the HR2 will connect to this Access Point.
