Elan HHR HR10 Integration Note

Wi-fi handheld remote control
Hide thumbs

Advertisement

Quick Links

Download this manual
Manufacturer:
Model Number(s):
Minimum Core Module Version:
Comments:
Document Revision Date:
O
VERVIEW AND
The HHR (Hand Held Remote) family of Handheld Remote Controls utilize instant-on WiFi technology to
provide a quick and seamless interface to an Elan Home Control system for control of media devices and

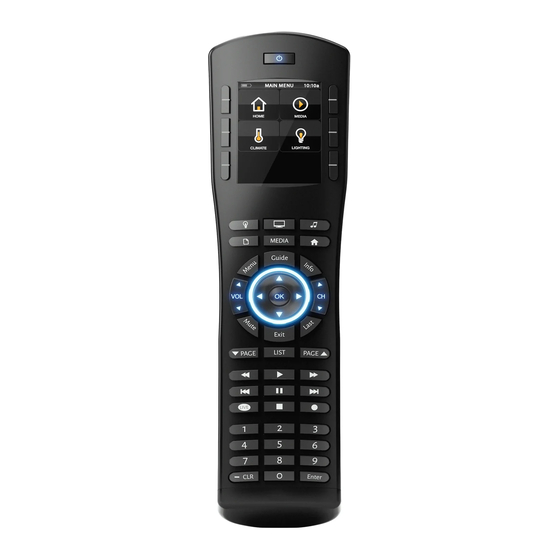

various subsystems in the home. The HR10 model remote includes a LCD screen interface with 6 hard
buttons for customizable control plus adds several of the most common hard buttons found on typical
universal remotes.
Important! The HHR remotes are not compatible with controllers running versions prior to the minimum
core version listed above.
T
HR10 H
HE
ANDHELD
Wireless Connectivity: The HHR connects via 2.4 GHz Wi-Fi and can be used up to 30' from its WAP.
See the Wi-Fi connections section below for details on the HHR compatibility.
System Mode Control: The home interface may be optionally configured to provide system mode status
and control.
Current Weather and Forecast information: The home interface may be optionally configured to
display basic weather conditions and forecast information. Press the home icon on the HHR main menu
page to access the house mode and weather pages. The next page button will scroll through the
configured pages.
Lighting Control: The lighting interface can be configured to display one or more custom lighting
keypads and/or custom lighting pages on the remote interface for 2-way control of scenes or lighting
devices. Lighting scheduling is not supported on the remote interface. Press the lighting icon on the
HHR main menu page to access the lighting keypad and lighting custom pages. The next page button
will scroll through the configured pages.
Climate Control: The climate interface displays status of one or more climate zones and provides mode
and fan control plus heating and cooling set point adjustments. Scheduling and custom tabs are not
supported. Press the climate icon on the HHR main menu page to access the climate page. The next
page button will scroll through the configured pages.
Media Control: The media interface displays status of one media zone and provides an interface for
source selection and control. Press the Media hard button or the media icon on the HHR main menu
page to access the media zone page. The interface provides metadata feedback for supported two way
devices or customizable single or multi-page interfaces for one way device control. Custom controls that
are supported for use on the remotes UI are: Audio Button, Audio Keypad, Audio Keypad Text View,
Audio Mode Control, Audio Sound Adjust, Channel Favorite Button, & Static Text control. See other
limitations below.
ELAN | SpeakerCraft
| Gefen
1800 South McDowell Blvd., Petaluma CA 94954 • Toll Free: 800.472.5555 • Fax: 707.283.5901
ELAN Home Systems
HHR: HR10 Wi-Fi Handheld Remote Control
ELAN 8.2
Main Application Version: 0.7.8.0
Boot Version: 0.7.8.0
USB MSD Version: 0.7.8.0
1/11/2018
S
F
UPPORTED
EATURES
R
C
S
EMOTE
ONTROLS
UPPORT THE FOLLOWING FEATURES
| Furman | Niles | Panamax | Sunfire | BlueBOLT | Proficient | Xantech
Integration Note
:

Advertisement

loading
Need help?

Need help?

Do you have a question about the HHR HR10 and is the answer not in the manual?

Questions and answers

Related Manuals for Elan HHR HR10

Summary of Contents for Elan HHR HR10

  • Page 1 The HHR (Hand Held Remote) family of Handheld Remote Controls utilize instant-on WiFi technology to provide a quick and seamless interface to an Elan Home Control system for control of media devices and various subsystems in the home. The HR10 model remote includes a LCD screen interface with 6 hard buttons for customizable control plus adds several of the most common hard buttons found on typical universal remotes.

  • Page 2: Installation Overview

    Install and test the system controller and all subsystems. Verify that the supported Elan Home Control System is configured with a static IP address. If it is not then stop and configure the controller with a static IP address and retest the system functionality and remote access to the system.
  • Page 3 Notes: • The HHR remotes may have issues connecting to the ELAN Configurator if you are using a MAC with a windows emulator. If this is the case then use a Windows PC to configure the remote. • You will need to have the wireless network SSID, encryption type and password, and a predefined static IP address for each remote you are setting up.
  • Page 4 12. Click the Load Controller Settings to automatically set the net mask, Gateway address, and Controller IP address. This will also set the HHR IP address to a default value based on the Gateway address loaded from the Controller. (Note: Your Elan Home Controller must be assigned a static IP for this function!) 13.
  • Page 5 17. Click OK to close the dialog box 18. Switch the remote power switch to ON, remove the USB cable and replace the remote endcap. 19. The remote will display “Configuring Radio” then connect to the access point and finally the system controller.
  • Page 6 ELAN C ONFIGURATION ETAILS The following table provides settings used in the ELAN Configurator. Please refer to the Configurator Reference Guide for more details. “<Select>” Select the appropriate item from the list (or drop-down) in the Configurator. “<User Defined>”, etc.
  • Page 7 ONNECTIONS What type of access point is required? Any 2.4 GHz wireless access point capable of one or more of the supported encryption types listed below should work. The access point MUST also allow connections from 802.11g devices. What encryption types are NOT supported. These options are not supported because the radio module in the HHR doesn’t implement them.
  • Page 8 Below are some basic guidelines for HHR Wi-Fi configuration. This information is for reference only and is provided to try to help if you are having trouble with the radio encryption configuration on a router or WPA Mode Cipher Type Notes TKIP Not recommended...
  • Page 9 IP to verify there is not another device using that address. vi. Reconfigure the HHR radio; check the SSID for typos and verify the controller IP is correct (this is the ELAN system controller IP address) vii. On the remote simultaneously press the –CLR button, the HOME button, and the MUSIC button located directly above the HOME button to access the SETUP MENU.

  • Page 10: Common Mistakes

    If you see an error message, verify all the Wi-Fi settings and repeat the remote configuration. 3. HHR USB not connecting. There may be issues with USB connections to ELAN Configurator when running on a MAC with an emulated windows environment. Use a Windows PC for reliable USB connection to the HHR.
  • Page 11 ROGRAMMING 1. Disrupted Communications Communications between the Elan Controller and HHR may be disrupted when the Configurator is being used to configure certain data. This is analogous to all Viewers (TP4/7/12) jumping to the Home Page when certain modifications are performed. Communications to and from the HHRs are disrupted from one to thirty seconds (or longer) depending on the number of HHRs in the system and the change being made.
  • Page 12 4. Roaming – having two or more Access Points If there are two or more Access Points, the HHR will connect to the Access Point with the strongest signal (usually the closest one). The only exception to this is if there is heavy traffic on the closest Access Point, the HHR may connect to the next closest (strongest signal) Access Point.
