AUTO-ADJUSTING CONTINUOUS POSITIVE AIRWAY PRESSURE SYSTEM
To set-up the Z1 Auto for patient delivery, please follow the steps in the order listed below based on the physician prescription.
Detailed instructions are on the following pages.
Turn the Bluetooth on (BT on) for use with Nitelog™
To enable Mode and Pressure setting
Device re-locks after each power cycle
Choose the APAP or CPAP mode.
A Minimum and Maximum (min/max) pressure setting is required for APAP and default is 4 and 10 cm H
A fixed pressure setting is required for CPAP and default is 8 cm H
5. Set Ramp Time
If ordered, set the ramp time (0-45 min) or patient may chose after delivery.
Default is 15 min for APAP and no ramp for CPAP.
This is typically used in CPAP mode to accommodate for Ramp settings.
Default is 4 cm H
2
™
If ordered, set the Z-Breathe to APAP 1, 2 or 3 (default is APAP-3).
If using CPAP mode, the choices are CPAP 1, 2 or 3 (default is CPAP-2).
Human Design Medical, LLC
Charlottesville, VA 22902

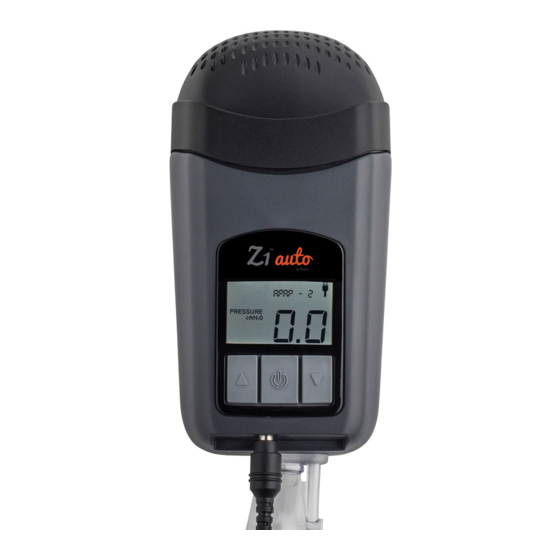

Z1 Auto
Clinician User Guide
0 for both APAP and CPAP.
System
™
0.
2
0.
2
Z1 Auto Clinician Guide- English v1
#40-0038 Rev B.
03022015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Breas Medical Z1 Auto
Summary of Contents for Breas Medical Z1 Auto
- Page 1 AUTO-ADJUSTING CONTINUOUS POSITIVE AIRWAY PRESSURE SYSTEM Clinician User Guide To set-up the Z1 Auto for patient delivery, please follow the steps in the order listed below based on the physician prescription. Detailed instructions are on the following pages. 1. Turn on Bluetooth®...
- Page 2 1. Turn on Bluetooth In order for the Z1 to connect to the Z1 NiteLog Mobile App, the Z1’s Bluetooth must be turned on. ™ Once the Z1 has connected to the NiteLog App via Bluetooth, access between the NiteLog App and Z1 PRESSURE device is password protected.
- Page 3 4. Set Pressure Setting the Treatment Pressure in CPAP Mode If the Z1 device is locked, you need to unlock the device before modifying CPAP treatment pressure. To unlock the Z1 device, please see section “Unlock Z1 Device” for details. 1.
- Page 4 6. Set Ramp Start Pressure Press and hold the Down Arrow Button for 3 seconds until the ramp start pressure value flashes. While flashing, repeatedly press either the Up or Down Arrow Buttons to increase or decrease the ramp start pressure by 0.5 cm H O increment.
