User Manual EtherCAT Slave / IEC61850 Client
Document code: MN67E14_ENG
Revision 1.000
Page 5 of 30
Industrial Electronic Devices
CONNECTION SCHEME:

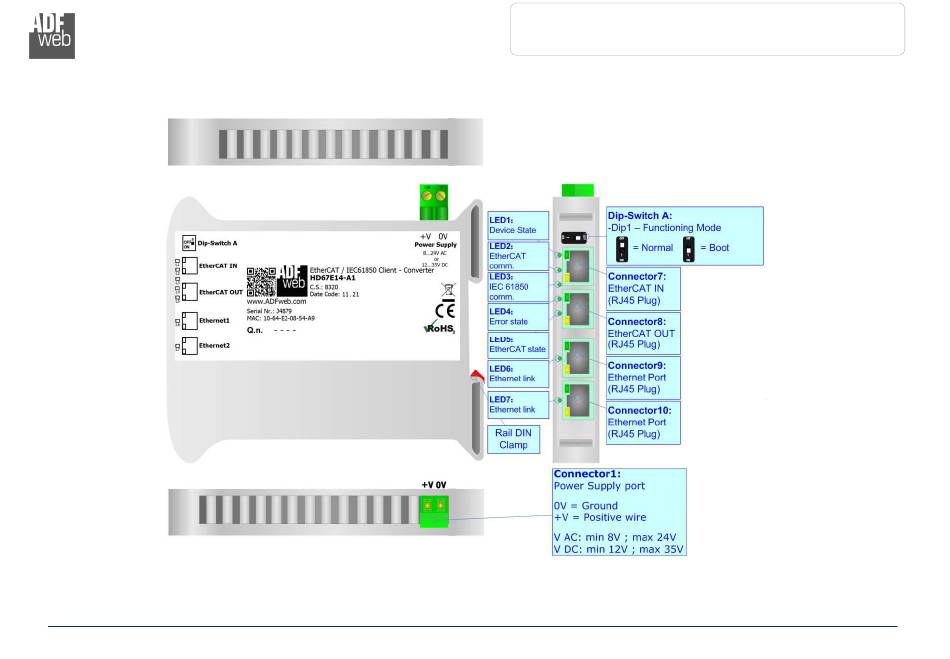

Figure 1: Connection scheme for HD67E14-A1
