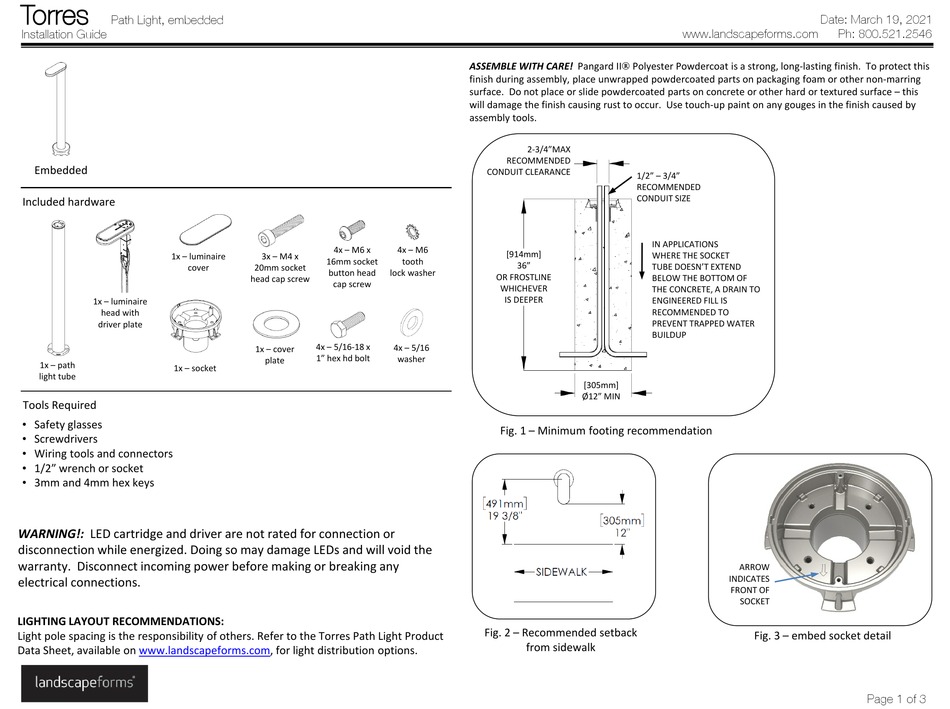

Landscape Forms Torres Installation Manual

Torres
Path Light, embedded
Installation Guide
Embedded
Included hardware
1x – luminaire
cover
1x – luminaire
head with
driver plate
1x – path
1x – socket
light tube
Tools Required
• Safety glasses
• Screwdrivers
• Wiring tools and connectors
• 1/2" wrench or socket
• 3mm and 4mm hex keys
WARNING!: LED cartridge and driver are not rated for connection or
disconnection while energized. Doing so may damage LEDs and will void the
warranty. Disconnect incoming power before making or breaking any
electrical connections.
LIGHTING LAYOUT RECOMMENDATIONS:
Light pole spacing is the responsibility of others. Refer to the Torres Path Light Product
Data Sheet, available on www.landscapeforms.com, for light distribution options.
4x – M6 x 4x – M6
3x – M4 x
16mm socket tooth
20mm socket
button head lock washer
head cap screw
cap screw
4x – 5/16-18 x
4x – 5/16
1x – cover
1" hex hd bolt washer
plate
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish. To protect this
finish during assembly, place unwrapped powdercoated parts on packaging foam or other non-marring
surface. Do not place or slide powdercoated parts on concrete or other hard or textured surface – this
will damage the finish causing rust to occur. Use touch-up paint on any gouges in the finish caused by
assembly tools.
2-3/4"MAX
RECOMMENDED
CONDUIT CLEARANCE
1/2" – 3/4"
RECOMMENDED
CONDUIT SIZE
[914mm]
36"
OR FROSTLINE
WHICHEVER
IS DEEPER
[305mm]
Ø12" MIN
Fig. 1 – Minimum footing recommendation
Fig. 2 – Recommended setback
from sidewalk
Date: March 19, 2021
www.landscapeforms.com
IN APPLICATIONS
WHERE THE SOCKET
TUBE DOESN'T EXTEND
BELOW THE BOTTOM OF
THE CONCRETE, A DRAIN TO
ENGINEERED FILL IS
RECOMMENDED TO
PREVENT TRAPPED WATER
BUILDUP
ARROW
INDICATES
FRONT OF
SOCKET
Fig. 3 – embed socket detail
Ph: 800.521.2546
Page 1 of 3
