Landscape Forms Torres Installation Manual

Area light

Advertisement

Torres
Area Light
Installation Guide

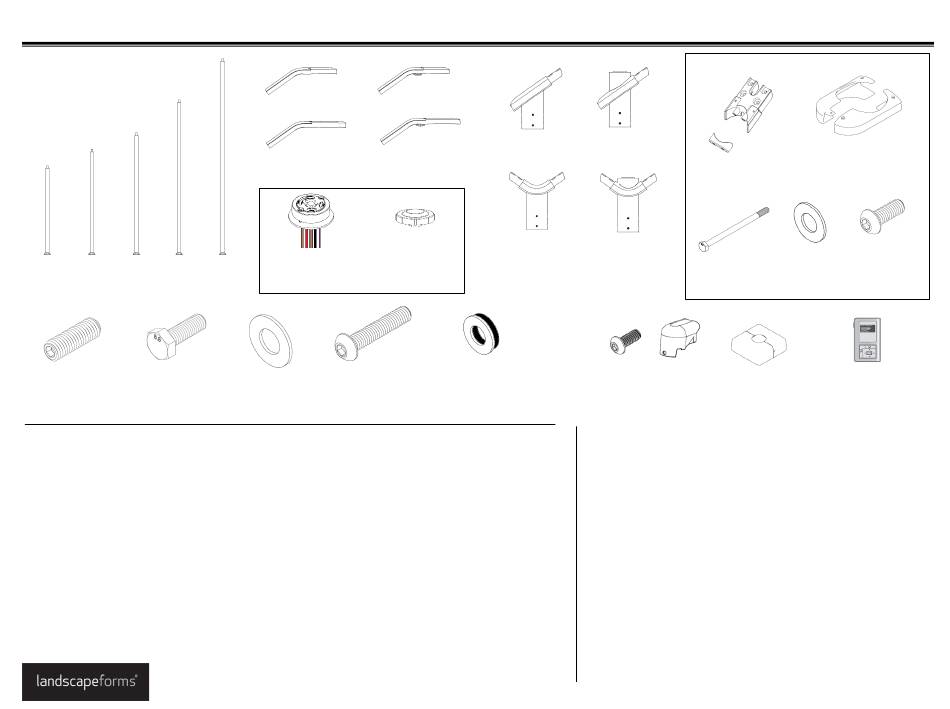

Included components
16ft
20ft
12ft
14ft
Pole with base plate
4X – M10 x 30mm
8X – M10 x
Hex head cap
30mm
screw
Set screw

Tools Required

• Safety glasses
• Hex key 5/32" for nut covers, 5mm for bracket to tenon mount, 4mm for luminaire cover
• Socket wrench, 17mm
• Wrenches, 1-1/8"
• Screwdrivers, Phillips and straight blade
• Wiring tools and connectors
• Proper personnel, crane or lift for hoisting unit onto anchors
• Level
• Dimming control, if required.
• Twist lock photo eye, if required
AH236
AH256
No motion sensor
With motion sensor
Shorting cap for
Twist lock,
Twist lock receptacle,
25ft
optional
For poles with twist lock
3X – M6 x 30mm
4X – 3/8"
Socket button
washer
head cap screw
AH236
Single mount
AH256
No Twist-lock
Double mount
No Twist-lock
optional
3X – 1/4" sealing
washer
www.landscapeforms.com
Single mount
With Twist-lock
Intermediate
mount bracket
Double mount
With Twist-lock
2X – M10 x 160mm
hex head screw
For intermediate mount luminaire
4X - Nut cover with
Cover plate
1/4-20 x 5/8" button
assembly (optional)
head cap screw
ASSEMBLE WITH CARE! To protect this finish during assembly, place
unwrapped powdercoated parts on packaging foam or other non-marring
surface. Do not place or slide powdercoated parts on concrete or other
hard or textured surface – this will damage the finish causing rust to occur.
Use touch-up paint on any gouges in the finish caused by assembly tools.
Landscape Forms is not responsible for site preparation and
footings. Refer to the installation guide for the Torres area light
anchor kit for installing the anchor bolts.
WARNING! Pole mounted luminaires must be attached either
before or immediately after pole installation. Failure to do so may
cause vibration damage to the pole and will void the pole
warranty.
CAUTION! This unit is heavy. To avoid injury or damage to the
finish, we recommend using a crane or lift for hoisting the unit
onto the anchors. Do not lift unit by the luminaire head.
Date: February 18, 2020
Ph: 800.521.2546
Intermediate
mount cover
3X –
2X –
M6 x 16mm
3/8 washer
BHCS
FSIR-100
Wattstopper
controller (optional)
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torres and is the answer not in the manual?

Questions and answers

Summary of Contents for Landscape Forms Torres

  • Page 1 • Wrenches, 1-1/8” Landscape Forms is not responsible for site preparation and • Screwdrivers, Phillips and straight blade footings. Refer to the installation guide for the Torres area light • Wiring tools and connectors anchor kit for installing the anchor bolts.
  • Page 2 ASSEMBLY AND INSTALLATION PROCEDURE: Route the line voltage wires (provided by others) up the pole and through the opening at the top of the pole. See *refer to the Torres Area Light Anchor kit installation guide Fig. 5. for setting the pole anchors. Concrete should be fully cured Route the wires through the luminaire mounting bracket, see Fig 5.
  • Page 3 Torres Area Light Date: February 18, 2020 Installation Guide www.landscapeforms.com Ph: 800.521.2546 M10 x 30mm SBHCS WITH SEALING WASHERS M10 x 30mm HEX HEAD CAP SCREWS WITH WASHERS M10 x 30mm SET SCREWS Fig. 7 – Route electrical supply wires Fig.
  • Page 4 Installation Guide www.landscapeforms.com Ph: 800.521.2546 PROCEDURE FOR WIRING TORRES LED LUMINAIRES: SHORTING The wiring schematics are to be used to connect the unit to line voltage. It is the responsibility of the installer to make sure that all connections are made in accordance with the NEC and local building codes. Connection hardware not included.
