Summary of Contents for Ryobi RM300E
- Page 1 RM300E...
- Page 2 If operating a power tool in a damp location is ■ IMPORTANT! unavoidable, use a residual current device (RCD) It is essential that you read the instructions in this manual protected supply. Use of an RCD reduces the risk of before assembling, operating, and maintaining the electric shock.
- Page 3 power tool’s operation. If damaged, have the power the instructions safe for later use. tool repaired before use. Many accidents are caused ■ Allow only responsible adults who are familiar with and by poorly maintained power tools. who understand the instructions to use the product. ■...
- Page 4 or wire may entangle with the blades. the product. Tall grass can hide obstacles. ● Use a slow speed so you will not have to stop ■ Before use, always visually inspect the product to suddenly or accidentally accelerate while on a slope. ensure that blades, blade nuts, and the cutter assembly are not worn or damaged.
- Page 5 BATTERY PACK REMOVAL AND PREPARATION FOR ■ Total towed weight must not exceed the maximum RECYCLING towing load of 136 kg (300 lbs.). ■ Attach tow equipment only at the hitch plate. ■ To preserve natural resources, recycle or dispose of batteries properly.
- Page 6 ■ Check all nuts, bolts, and screws at frequent intervals a cut, or if the puncture cannot be repaired using a plug, for proper tightness to ensure that the product is in safe replace the tyre. working condition. BRAKE ADJUSTMENT ■...
- Page 7 do not stop, contact an authorised service centre. Read and understand all instructions Do not operate the mower until the safety interlock before operating the product. Follow all system has been repaired. warnings and safety instructions. 7. Charging port Keep all bystanders, especially children The charging port connects the charger to the mower.
- Page 8 Regulatory Compliance Mark (RCM). Non-spillable. Battery must be recycled. Product meets applicable regulatory requirements. The product contains lead-acid batteries. Local regulations may prohibit disposal Waste electrical products should not of lead-acid batteries in ordinary trash. be disposed of with household waste. Consult your local waste authority for Please recycle where facilities exist.
- Page 9 surface without stepping on the brake pedal or engaging the parking brake. Failure to follow these instructions Step on the accelerator pedal. can result in loss of control and result in death, serious personal injury, or property damage. ■ If no ramp is available, slowly and carefully drive the product off the frame in reverse while looking down and behind.
- Page 10 Know your product...
- Page 11 6 mm 12 mm/13 mm Know your product...
- Page 12 RM300e Blade engage knob Headlight button Power switch Reverse mode button Battery level indicator / hour meter Seat (with safety interlock system) Charging port Hitch plate Cup holder Deck height adjustment lever Seat adjustment lever Parking brake Side discharge chute...
- Page 13 Wear full eye protection, non-slip Push the tabs on rear side of the cable cover, and remove the cover. Connect the heavy-duty gloves, substantial battery cables. footwear, and long trousers at all times while operating the product. Do not operate the product when barefoot or wearing open sandals.
- Page 14 25 Nm Install the steering column over the Install the spacer, steering wheel Install the flat washer and bolt. Tigthen steering shaft. hub, and steering wheel on top of the the bolt to 25 Nm of torque. Install the steering column. steering wheel cover.
- Page 15 Lift the side discharge chute. NOTE: For mulching configuration, Lower the side discharge chute. install the mulch cover. Hook the mulch NOTE: Make sure that the side cover to the tab on the cutting deck. discharge chute is properly closed. Hook the right latch to the hole on the deck.
- Page 16 Driving the product Mowing in reverse Stopping/Parking the Leveling the p.17 p.19 p.20 p.23 product Cutting Deck Setting the cutting p.21 height Adjusting the brake p.22 Charging the product p.26 Replacing the blade p.27 Replacing the Cleaning the product Storing the product Transporting the p.29 p.34...
- Page 17 DRIVING THE PRODUCT 1. Set the seat to the preferred position. Ensure that the seat is locked into place before operating the mower. 2. Set the cutting deck to the preferred cutting height. WARNING: Before driving the mower to mowing location or driving over gravel surfaces, set the cutting height to the maximum height.
- Page 18 NOTE: Start mowing the lawn by turning to the right so that clippings discharge away from shrubs, fences, and driveways. After one or two rounds, mow back and forth across the lawn, turning around the edges of the already mowed grass. Mow the lawn so that discharged clippings exit the direction of the area that has already been cut.
- Page 19 MOWING IN REVERSE 1. Step on the brake pedal to stop the product. 2. Press the blade engage knob to stop the blades. 3. Press the reverse mode button. 4. Pull up the blade engage knob to activate the blades. Step on the reverse pedal to mow in reverse.
- Page 20 STOPPING/PARKING THE PRODUCT WARNING: Park the mower only on a level surface. Do not stop or park the mower on slopes. 1. Step on the brake pedal and the parking brake lever. 2. Press the blade engage knob to stop the blades.
- Page 21 p.20 SETTING THE CUTTING HEIGHT 1. Step on the brake pedal and engage the parking brake to stop the product. 2. Set the cutting deck to the preferred cutting height. Firmly hold the adjustment lever when setting the deck height, and release it only when it is secure in the preferred slot.
- Page 22 p.20 ADJUSTING THE BRAKE 1. Engage the parking brake, stop the blades, turn off the product, and remove the start key. 2. Stand behind the mower, and push the mower forward to test if the brakes need adjustment. WARNING: If the rear wheels turn, the brakes need to be adjusted.
- Page 23 p.20 LEVELING THE CUTTING DECK 1. Engage the parking brake, stop the blades, turn off the product, and remove the start key. 2. Lift the side discharge chute 3. Turn the blades so that the ends point towards the sides of the mower. 4.
- Page 24 NOTE: If the distance between the two sides is greater than 3.1 mm, side-to-side adjustment is necessary. 5. On the side that needs adjustment, loosen the jam nuts. 6. Turn the adjustment nut clockwise to raise or counter clockwise to lower the >...
- Page 25 NOTE: The front tip of the blade should be between 3.2 and 9 mm lower than the rear tip. 3.2 - 9 mm NOTE: If the distance between the front and rear tip of the blade is greater than 9 mm, front-to-back adjustment is necessary.
- Page 26 CHARGING THE MOWER WARNING: Mount or place the charger 40 °C in a well-ventilated area. Make sure that the cooling fins are not covered. WARNING: Charge the product indoors in a well-ventilated area. Do not charge the product in a confined space. The batteries charge best at temperatures from 0 °C to 40 °C.
- Page 27 p.20 REPLACING THE BLADE 1. Engage the parking brake, stop the blades, turn off the product, and remove the start key. 2. Loosen the cable lock, and disconnect the cutting deck cables. 3. Set the cutting deck to the lowest position.
- Page 28 5. Insert a wood chock between the blade and cutting deck to prevent the blade from turning. Loosen the blade nut. 6. Remove the nut, spring washer, and blade. 7. Remove any build-up of debris from the cutting deck, especially around the blade mounting bolt.
- Page 29 p.20 REPLACING THE BATTERIES 1. Engage the parking brake, stop the blades, turn off the product, and remove the start key. 2. Set the seat to the rearmost position. 3. Lift the seat forwards. 4. Disconnect the seat cable and safety interlock cable.
- Page 30 6. Push the tabs on the rear side of the cable cover, and remove the cover. Disconnect the battery cables. 7. Remove the 2 screws securing the side control panel. Loosen the 4 screws that secure the control panel. 8. Remove the 10 screws that secure the shroud.
- Page 31 11. Remove the battery bracket and covers. 12. Remove the battery cables, disconnecting the negative (black) terminal, then the positive (red) terminal. NOTE: When disconnecting the rear battery cables, take note of the position of the battery thermistor terminal on the positive post.
- Page 32 16. Reinstall and tighten the long bolt to secure the battery bracket and covers. 17. Reinstall the shroud. 18. Reinstall the side panel. Tighten the 4 screws that secure the control panel. Reinstall and tighten the 2 screws that secure the side panel. 19.
- Page 33 21. Route the safety interlock cable through the hole on the cable cover. Reinstall the cable cover until it snaps in place. 22. Reinstall the seat. Secure the seat with a nut and bolt on each side. 23. Connect the seat cable and safety interlock cable.
- Page 34 p.20 CLEANING THE PRODUCT 1. Engage the parking brake, stop the blades, turn off the product, and remove the start key. 2. Use a brush and dry cloth to clean the product. Remove any build-up of grass and leaves on or around the motor cover. Remove all accumulated debris on the left and right side of the cutting deck.
- Page 35 STORING THE PRODUCT 1. Store the product in a clean, dry, and well-ventilated place that is inaccessible to children. Do not store the product near any appliance that operates with flame, such as a gas water heater, clothes dryer, or furnace. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts.
- Page 36 TRANSPORTING THE PRODUCT 1. Set the cutting deck to the maximum height. 2. Press the blade engage knob to stop the blades. 3. Insert the start key, and turn it to the ON position. 4. Step on the brake pedal to disengage the parking brake.
- Page 37 6. Slowly drive the product onto the ramp. 7. Centre the product on the ramp, and drive in a low speed to minimize the risk of the wheels from going off the side of the ramp. 8. Step on the brake pedal and engage the parking brake to stop the product.
- Page 38 CHARGER LED INDICATOR Connected to Charger Status status Power supply Mower Charger Mower Standby Ready to charge battery pack Slow Charging — flashing Battery temperature, battery capacity, or charger may be Fast flashing faulty. If the LED status shows error, wait for about 15 minutes to allow the battery and charger to cool down. Charger error If the LED status repeats a second time, reset the charger or reinsert the battery.
- Page 39 TROUBLESHOOTING If these solutions do not solve the problem, contact an authorised service centre. Problem Possible cause Solution The battery charge is low. Charge the battery. The charger is connected to the product. Disconnect the charger from product. The product does not start.
- Page 40 The cutting height is set too low. Raise the cutting height. The motor stops while cutting. The battery charge is low. Charge the battery. The battery charge is low. Charge the battery. The side discharge interlock switch is not Push down the side discharge chute, and make sure that it fully pressed by the side discharge chute.
- Page 41 PRODUCT SPECIFICATIONS ACCESSORIES Ride-On Mower Catching Blades and Bagger ACRM008 (6282461) Model RM300E Mulching Blades ACRM009 Weight 178 kg (as installed by the operator, for (997241) mulching and side discharge) Motor 48 V d.c. Catching Blades ACRM010 No-load speed 3800/min...
- Page 42 FREQUENTLY ASKED QUESTIONS ■ Should the mower remain plugged into the charger when not in use? – Yes, continually charge the mower when not in use. ■ What is the recommended tyre air pressure, and how often should I check the air pressure in the tyres? –...
- Page 44 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. © 2021 Techtronic Cordless GP 099749052001-02...
Need help?
Do you have a question about the RM300E and is the answer not in the manual?
Questions and answers
My 3 year old RM300E is not charging, green light flashing on mover. no green light on charger when plug into the mover, batteries are new.
The Ryobi RM300E is not charging because the battery pack may be defective. A flashing green light on the mower and no green light on the charger indicates a charging issue. Try resetting the charger or reinserting the battery. If the issue repeats, test with a different battery. If the other battery charges normally, the original battery is likely defective and should be disposed of properly.
This answer is automatically generated
@Mr. Anderson how do I reset the charger?
where do I get a replacement charger for my Ryobi RM300E riding lawn mower?
You should use the OP48RM or SC-48 charger for the Ryobi RM300E riding lawn mower.
This answer is automatically generated
charger use to get warm to the touch, but not now, how long do chargers usual last ?
The provided context does not specify how long Ryobi RM300E chargers usually last.
This answer is automatically generated
installed new batteries turned key on charging indicates two red bars mower will not move
If the Ryobi RM300E mower has two red bars on the charger after installing new batteries and won't move, the battery charge may be too low. The manual states that when the battery charge indicator is in the red zone, the blades will shut off, and the mower may become stranded. The solution is to turn the key switch to the off position and push the mower back to the charging location. Ensure the batteries are properly connected and fully charged before use.
This answer is automatically generated
mower cutting disengages after starting
The cutting on the Ryobi RM300E mower disengages after starting for the following possible reasons:
1. Operator is not fully seated: Fully sit down on the seat to ensure the safety interlock system is engaged.
2. Blade engage knob is down: Pull up the blade engage knob to activate the blades.
3. Battery charge is low: Charge the battery to ensure sufficient power.
4. Debris build-up under the mower deck: Clean the underside of the mower deck to prevent interference.
5. Side discharge interlock switch is not pressed fully: Ensure the side discharge chute is fully pressed down to engage the interlock switch.
This answer is automatically generated
Charger light is green but no light on mower
Mowers blades run for 4 seconds then shut off also mower moves 4 feet then stops. Fully charged
I need a full schematic for an RM300e to convert it to the Epoch 48 Volt 30 Ah Lithium Polymer Battery. Can you show the necessary connections to complete this.
My Ryobi RM300E stops after 30 minutes and the after restarting it, only lasts 30 seconds.

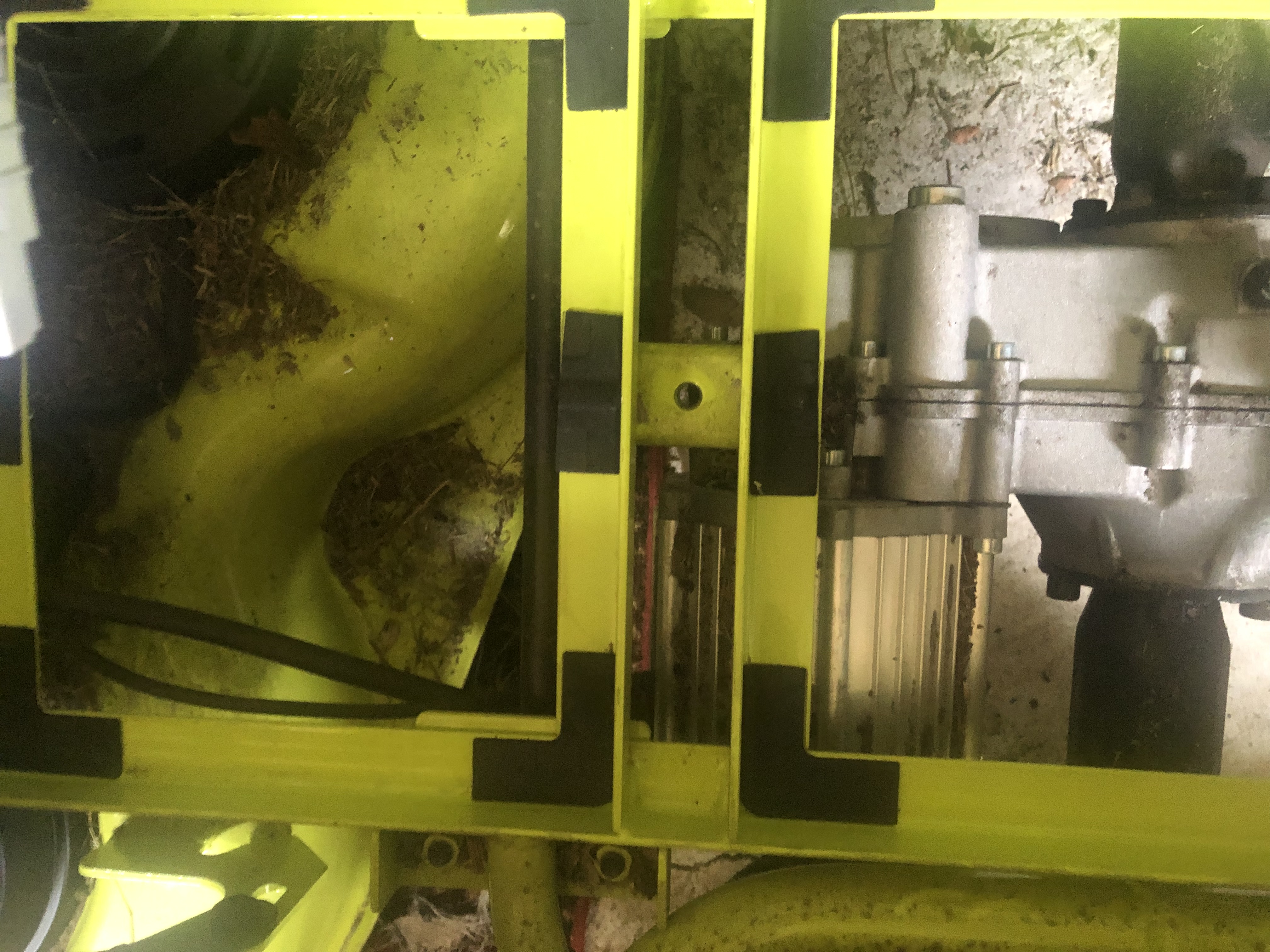

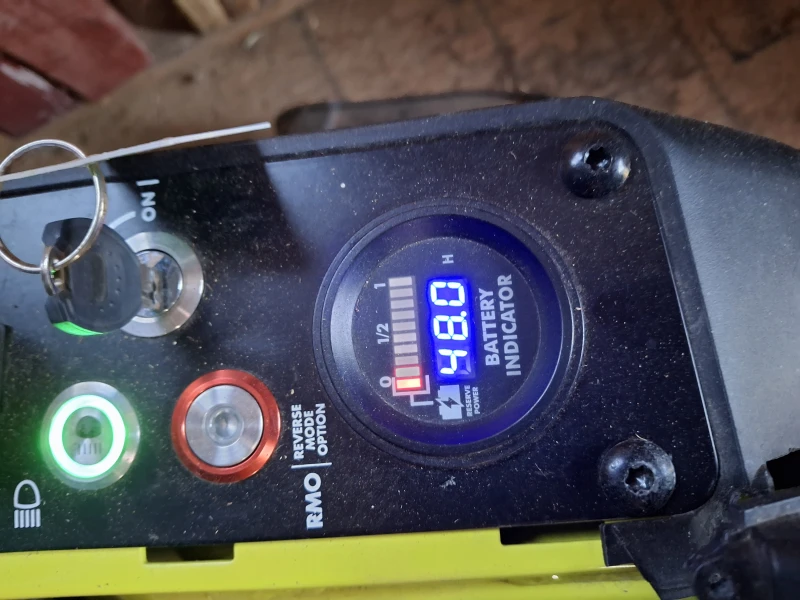

mower is at 52 volts and only moves 10 ft and stops
