GSC23LGR
GE CustomStyle
22.6 Cu. Ft. Side-By-Side Refrigerator
™

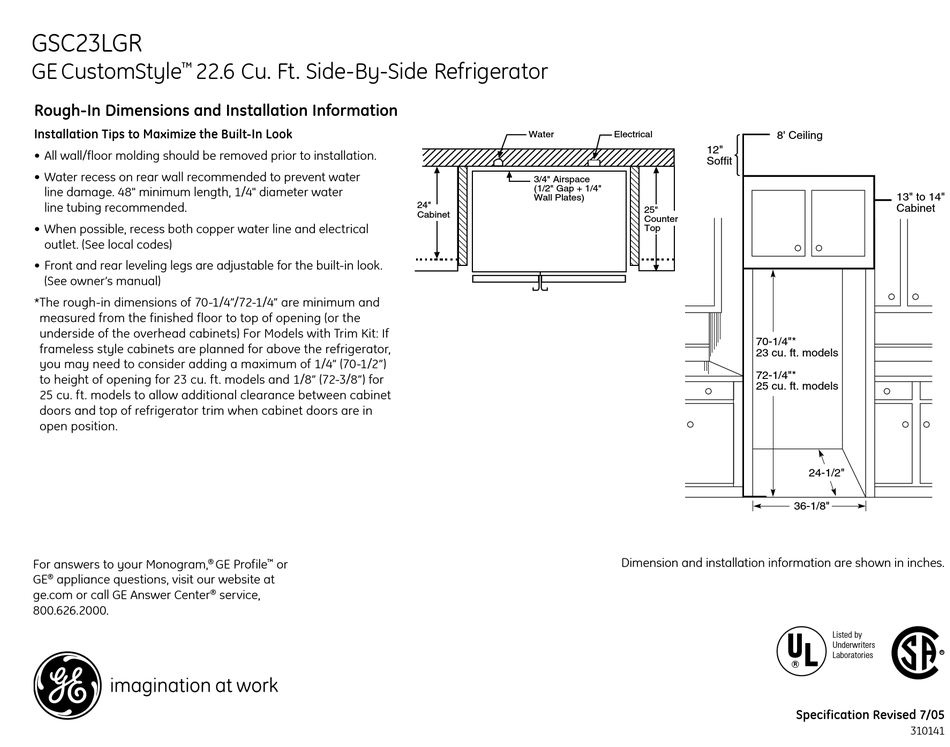

Rough-In Dimensions and Installation Information
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner's manual)
* The rough-in dimensions of 70-1/4"/72-1/4" are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets) For Models with Trim Kit: If
frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening for 23 cu. ft. models and 1/8" (72-3/8") for
25 cu. ft. models to allow additional clearance between cabinet
doors and top of refrigerator trim when cabinet doors are in
open position.
For answers to your Monogram,
GE Profile
®
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
or
™
service,
Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 24 CUBIC FOOT MODELS
Electrical
8' Ceiling
12"
Soffit
24"
25"
Cabinet
Counter
Top
70-1/4"*
Fig 2A eps
23 cu. ft. models
72-1/4"*
25 cu. ft. models
36-1/8"
*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from
the finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
Dimension and installation information are shown in inches.
height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models
to allow additional clearance between cabinet doors and top of refrigerator trim
when cabinet doors are in open position.
R
Specification Revised 7/05
Collar Trim In. w/ceiling
Water
Electrical
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
13" to 14"
Cabinet
25"
Counter
Top
Trim
24-1/2"
Listed by
Underwriters
Laboratories
R
310141
