Summary of Contents for Amphenol nrgSMART nrg600BT10

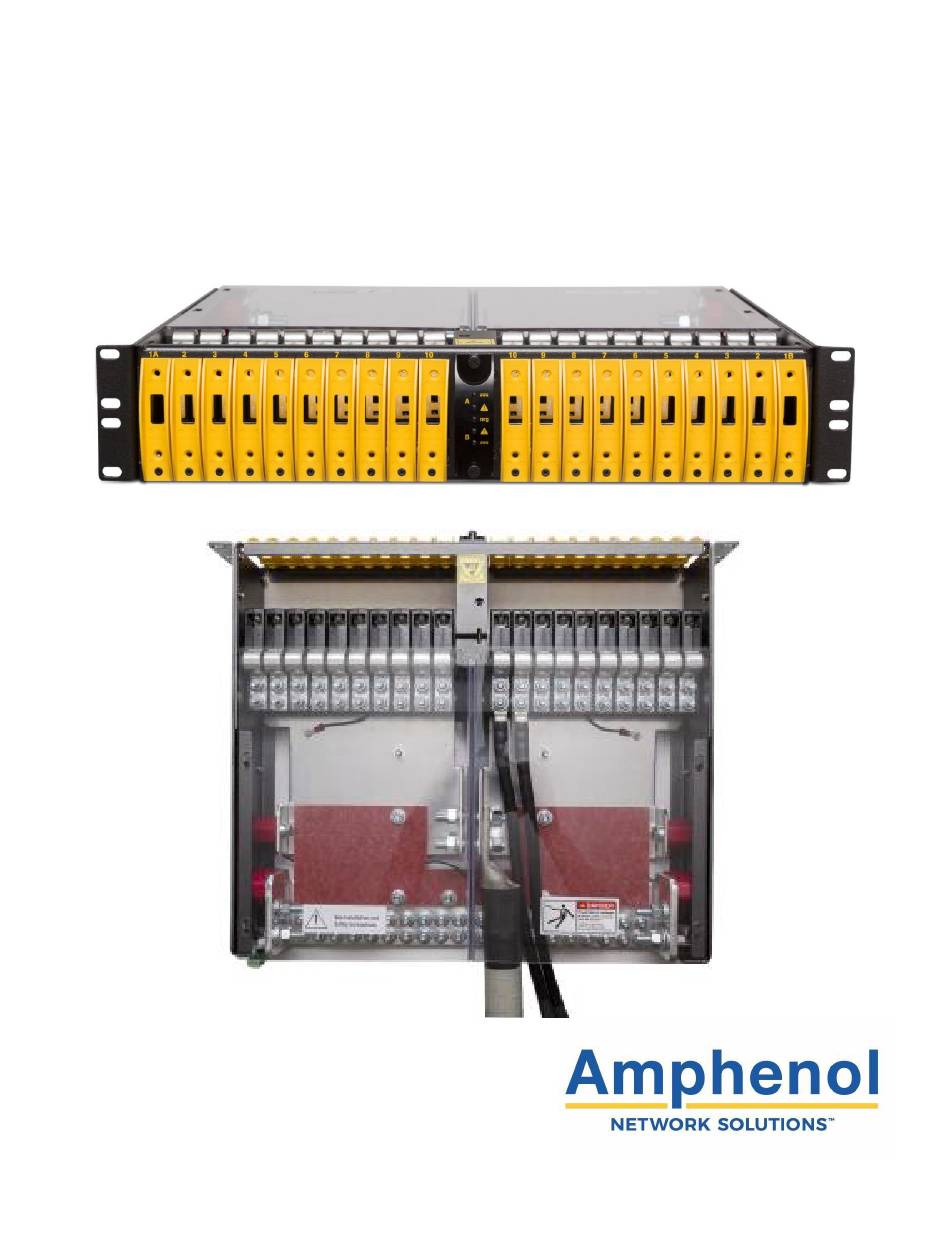

- Page 1 & nrg600BT20S Power :: 600A load center with nrgSMART remote monitoring Installation Guide nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.05.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
- Page 2 Amphenol Network Solutions assumes no liability from the application or use of these products. Amphenol Network Solutions does not convey any license under its patent rights nor the patent rights of others. This document and the products described herein are subject to change without notice.
- Page 3 About nrgSMART The Amphenol Network Solutions nrgSMART™ family of products monitors your equipment at the circuit level. nrgSMART comprises distributed network monitoring products from high- and low-current secondary panels to the 8,000A nrgBDFB. nrgSMART provides monitoring at the individual circuit level, not at the feed level like most other monitoring panels on the market.
- Page 4 Overview The Amphenol Network Solutions nrg600BT10 600A dual-feed 10/10 circuit breaker load center features -48V operating voltage to fit in legacy and “next generation” network applications. The panel has advanced circuit-level monitoring features engineered into a compact 2RU footprint. Each of the 600A dual feeds contains 10 positions for bullet-style breakers.
-
Page 5: Specifications
Warranty **Circuit breakers for this load center are designed and manufactured Standard one-year warranty on all parts. by Airpax Corporation and Carling Industries to meet the Amphenol Network Solutions symmetrical pin specifications. Order circuit breakers only from Amphenol Network Solutions Grounding •... -
Page 6: Mounting And Wiring
Amphenol Network Solutions Quality at quality@amphenol-ns.com or call 509-926- 6000. Amphenol Network Solutions is not liable for transit damage. If the product is damaged, please report it to the carrier and contact Amphenol Network Solutions Quality. - Page 7 Mount the panel as high as possible on the rack, leaving adequate access space above the load center. Tighten screws to 35-in./lb (4.29 N•m). Fig. 1: Breaker mounting Amphenol Network Solutions recommends using a seismic rack for best rigidity. Fig. 2-2: 23” rack mounting Fig. 2-1: 19” rack mounting with optional adapter bracket nrg600BT10 &...
- Page 8 2. If required, lightly coat antioxidant on lug and grounding surface on side of panel. Connect the lug using ¼-20 bolts, flat washers and split washer provided, as shown in Fig. 3. Tighten bolt to 50-in./lb (5.5 N•m). Fig. 3: Grounding nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
-
Page 9: Wiring Diagram
WARNING! Before connecting input power cables, make sure the input power to the panel is turned off. 2.3 Wiring Diagram nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com... -
Page 10: Input Wiring
5. Tighten the nuts to 50-in./lb. (~5.5 N•m), max. 6. Lastly, enable equipment loads one at a time to verify the proper operation of loads. nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com... -
Page 11: Boot Loader Mode
The update process lasts approximately seven seconds. See Fig. 5. Power A Fuse Alarm A nrgNET connection to the nrgCONTROL-BT Fuse Alarm B Power B Fig. 5: nrg600BT10 alarm card indicators nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com... - Page 12 < -20 VDC communication to this specific panel within last three seconds Red single blink Defective panel. Contact Amphenol Network Solutions for replacement. Red double blink Invalid communication to nrgCONTROL. Check that COM+ and Com- did not get swapped.
-
Page 13: Alarm Card
Two temperature probe ports are available on the back of the nrg600BT10 and nrg600BT20S. Each port can accept the optional nrgTEMP probes. See Figs. 7 and 8. Fig. 7: Temperature probe inputs Fig. 8: Optional nrgTEMP temperature probe nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com... - Page 14 2.8 nrgNET Connectivity nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
- Page 15 Pin 3 Drain Wire (24 AWG) Pin 4 PWR + Black (18 AWG) Pin 5 PWR - Red (18 AWG) nrgCONTROL-BT Fig. 9: nrgNET pinout connections nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
- Page 16 2.11 nrg600BT10 and nrg600BT20S Dimensional Drawings nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
- Page 17 2.12 Markings nrg600BT10 Front nrg600BT20S Front nrg600BT10 & nrg600BT20S Rear nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
- Page 18 TERM BLOCK: RCPT, 1X5, 160V, 8A, 3.81 mm, 30-16 AWG, NrgNET termination connector ROHS ADPTR 1.75 RK to 1.75 PNL (2 SPC) – Includes 2 brackets 19” to 23” rack adapter kit 02117-02+B7 nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
- Page 19 Source #2 AWG #4 AWG #6 AWG #8 AWG T & B 54207 54206 54205 Panduit LCDN2-14A-Q LCD4-14A-L LCD6-14A-L LCD8-14A-L Burndy YA2CL2NT14 YA4CL2TC14 YA6CL2TC14 YA8C2TC14 nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com...
-
Page 20: Circuit Breakers
147611 147612 147613 147614 147615 100A 147616 Table 8: Double-Pole Breakers (Symmetric Alarm Pins) Item Amperage Part Number Double-Pole 125A 148038 150A 148039 175A 148040 nrg600BT10 & Amphenol Network Solutions All rights reserved. 12.06.19 147728-6 A0 nrg600BT20S 509.926.6000 – amphenol-ns.com... - Page 21 Modification Any modifications made to this device that are not approved by Amphenol Network Solutions may void the authority granted to the user by the FCC to operate this equipment. 4.2 ICES-003 Class A Notice – Avis NMB-003, Classe A This Class A digital apparatus complies with Canadian ICES-003.
