Summary of Contents for Alfred ML2

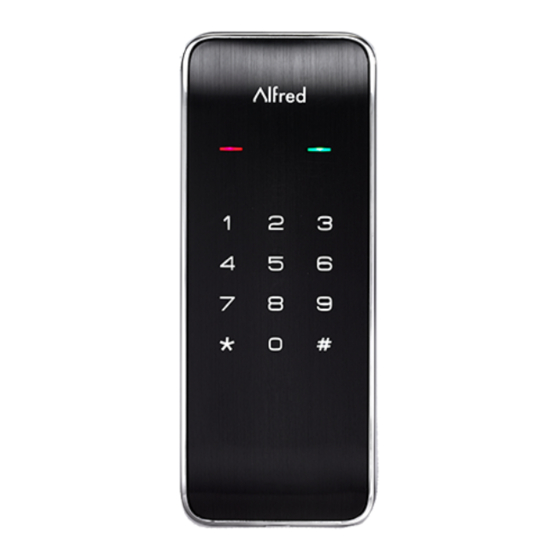

- Page 1 Smart Door Lock Programming Instructions EN VER 1.0 Alfred International Inc. reserves all rights for the final interpretation of the following instructions. All design and specifications are subject to change without notice...
- Page 2 Search “Alfred Home” in either the Apple App Store or Google Play to Download Alfred Home...
- Page 3 STATEMENT FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
- Page 4 4. Access Card Number slots: Access card can be assigned number slots between (1-250), it will be assigned automatically then read by voice guide after enrollment. 5. Access Card: Only Mifare 1 type card is supported for ML2. It can be set up through Master Mode or Alfred Home App.
-
Page 5: Specifications
SPECIFICATIONS Front assembly Back assembly E: Wireless module port A: Status indicator(Red) F: Handing switch B: Status indicator(Green) G: Reset button C: Touchscreen keypad H: Internal indicator D: Low battery indicator I: Multi-functional button J: Thumb turn 3/15... - Page 6 After lock has been successfully unlocked, it will automatically re-lock after a preset time. This feature can be turned on through the Alfred Home App or through option #4 in Master Mode menu at the Lock. This feature comes disabled in default settings. Auto re-lock time can be set to 30secs, 60secs, 2mins, and 3mins.
- Page 7 The User PIN Code operates the Lock. They can be created between 4 and 10 digits in length but must not break simple pin code rule. You can assign a User Pin code to specific members within the Alfred Home App. Please make sure to record set user Pin codes as they are NOT visible within Alfred Home App for security once set.
- Page 8 The Access Card operates the Lock. They can be added on the lock in Master Mode Menu, and deleted in Master Mode Menu or in Alfred Home App. You can assign an Access Card to specific members within the Alfred Home App. Maximum Number of Access Card is 250.
-
Page 9: Factory Default Settings
User must change Factory Set Master Pin Code before changing any other menu Settings when first installed. Settings will be locked until this has been completed. Record Master Pin Code in a safe and secure location as the Alfred Home APP will not show User Pin Codes for security purposes after it has been set. - Page 10 LOCK OPERATIONS -Add User PIN Codes User PIN Codes can be programmed in Settings options on the Alfred Home App or in Master Mode Menu at the Lock. Master Mode Menu Instructions: 1. Enter Master Mode. 2. Enter "2" to enter Add User menu 3.
- Page 11 LOCK OPERATIONS -Delete User PIN code User PIN Codes can be programmed in Settings options on the Alfred Home App or in Master Mode Menu at the Lock. Master Mode Menu Instructions: 1. Enter Master Mode. 2. Enter "3" to enter delete User menu 3.
- Page 12 LOCK OPERATIONS -Silent Mode/Language Settings Silent Mode or Language Change Feature can be programmed in Settings options on the Alfred Home App or in Master Mode Menu at the Lock. Languages Master Mode Menu Instructions: 1.English 1. Enter Master Mode 2.Spanish...
- Page 13 The front panel will need to be touched to wake up the lock so the Bluetooth connection can be re-established. If user has enabled One Touch Unlock Feature in Alfred Home App, Bluetooth must been Enabled as the One Touch feature requires constant Bluetooth connect availability to function.
- Page 14 PROGRAMMING TREE FOR MASTER MODE MENU 1 Modify Master PIN code 2 Add users 1 Add user PIN code 3 Delete users 1 Delete user PIN code 1 Disable 4 Auto re-lock 2 Enable(30secs) 3 60secs 4 120secs Master Mode 5 180secs 1 English 2 Spanish...
-
Page 15: How To Use
HOW TO USE Unlock the door 1. Unlock the door from outside - Use PIN code key User √ PIN code - Place palm over lock to wake up the keypad. - Input User PIN Code or Master PIN Code and press “√” to confirm. 2. - Page 16 HOW TO USE Enable Privacy Mode To Enable Privacy Mode (Inside Deadlock), Push and HOLD the Multi-function button on Back Assembly for 3 Seconds. When Privacy mode is enabled, it restricts ALL accesses, including Master Pin Code, User PIN Code, Access Card and Digital Bluetooth Keys sent through APP.
-
Page 17: Reset To Factory Default Settings
HOW TO USE Reset to factory default settings Must be completed on Lock and cannot be done through the Alfred Home APP 1. Open the door and keep the lock in “unlock” status 2. Open battery box and find the reset button. - Page 18 ISED Statement English: This device complies with Part 15 of the FCC Rules [and contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS standard(s)]. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
