Matco Tools BPS400 Instruction Manual

WARNING
Study, understand and follow all instructions provided with
this product. Read these instructions carefully before
installing, operating, servicing or repairing this tool. Keep
these instructions in a safe accessible place.
INTENDED USE OF THE TOOL
This tool set is designed for removal and installation of
press-fit parts such as ball joints, universal joint and truck
brake anchor pins on cars and light trucks that have press-fit
type ball joints without the need to remove the control arm
from the vehicle. Do not use this tool outside of the designed
intent. Never modify the tool for any other purpose or use.
WARNING
Caution: To help prevent personal injury
• Use of this product can expose you to chemicals including
ethylene glycol, gasoline vapors and engine exhaust, which are
known to the State of California to cause cancer, birth defects, or
reproductive harm. For more information, visit
www.P65Warnings.ca.gov. Always wear ANSI approved safety
equipment, safety glasses and clothing when using this product.
Study, understand, and follow all instructions provided with this
product. Failure to read and follow all warnings and operating
instructions may result in damages and serious injury or death.
• Always wear ANSI approved goggles when using this product.
(Users and Bystanders).
• Never use this tool for any application other than for
which it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
• Improper operation and/or maintenance of the tool, modification
of the tool, or use of the tool with accessories not designed for it
could result in serious injury or death.
• Always select the correct accessories of the correct size and design
for the job that you are attempting to perform.
• Always work in a clean, safe, well-lit, organized and adequately
equipped area.
• Do not begin repairs without assurance that vehicle is in secure
position, and will not move during repair.
BALL JOINT SERVICE TOOL SET
WITH 4 WHEEL DRIVE ADAPTER SET
Page 1
LIFETIME WARRANTY
The manufacturer warrants this product to the original user
against defective material or workmanship for lifetime from
the date of purchase.
The manufacturer reserves the right to determine whether
the part or parts failed because of defective material,
workmanship or other causes. Failures caused by accident,
alteration, or misuse are not covered by this warranty.
The manufacturer, at its discretion, will repair or replace
products covered under this warranty free of charge. Repairs
or replacements of products covered under this warranty are
warranted for the remainder of the original warranty period.
The manufacturer or its authorized service representatives
must perform all warranty repairs. Any repair to the product
by unauthorized service representatives voids this warranty.
The rights under this warranty are limited to the original user
and may not be transferred to subsequent owners.
This warranty is in lieu of all other warranties, expressed or
implied, including warranties of merchantability and fitness
for a particular purpose. Some states do not allow the
exclusion or limitations of incidental or consequential
damages, so the above limitations may not apply to you.
BEFORE USE
When unpacking, check the parts diagram and part number
listing on page 6 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.
PRODUCT INFORMATION:
• The heavy duty tool set is excellent for removal and
installation of press-fit parts such as ball joints,
universal joint and truck brake anchor pins
• Remove even rusted and corroded parts

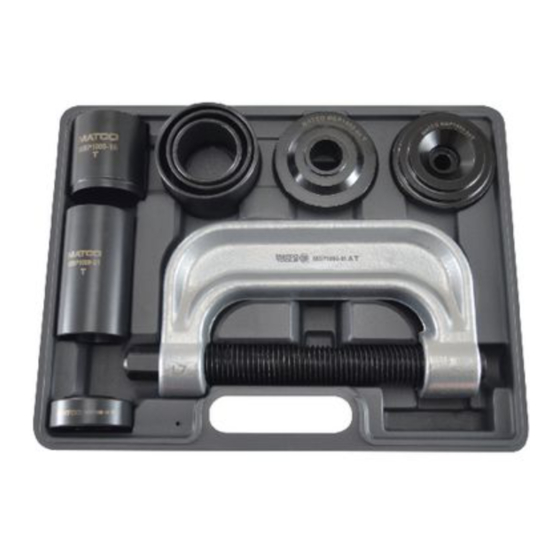

• Set contains C-frame press, 3 receiver tubes sizes:
1-3/4" x 2", 1-3/4" x 2-1/2" & 2-1/4" x3", installation and
removing adapters
• Set also includes: 4-wheel drive ball joint service kit
that allows service for 1967 through current 1/2 and 3/4 ton
4WD vehicles having the Dana 44 front axle (found on
Ford, GM, Dodge, IHC and Jeep vehicles)
• Blow molded case for easy storage and transport
DO NOT DISCARD – GIVE TO USER
BPS400
Made in China
to Matco specifications
