Operating Instructions & Parts Manual
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
© July 2017
Body Repair Kits
Model
BRK4T
BRK10T
Capacity
4 Ton
10 Ton
BRK4T
BRK10T
http://www.matcotools.com
MATCO TOOLS
Printed in China
BRK4T-M0_072017
Advertisement
Table of Contents
Related Manuals for Matco Tools BRK10T
Summary of Contents for Matco Tools BRK10T
- Page 1 Body Repair Kits Model Capacity BRK4T 4 Ton BRK10T 10 Ton BRK4T BRK10T This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
-
Page 2: Safety And General Information

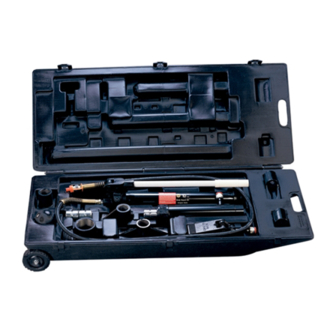

Labels and Operator's Manuals are available from the manufacturer. PRODUCT DESCRIPTION Matco Tools Body Repair Kits are designed to be used for pushing, spreading, and pressing of vehicle body panels as well as various component parts and assemblies. A variety of attachments are included. - Page 3 WARNING • Study, understand and follow all instructions before operating this device. • Wear eye protective that meets ANSI Z87.1 and OSHA standards. • Do not exceed the rated capacity. • Use a pressure gauge that indicates pounds of force applied. •...
-
Page 4: Before Use
F = P x A, where F = lbs force, P = pressure in psi, and A = effective ram area in in Ram Area of Model BRK4T is: 0.998 in Ram Area of Model BRK10T is: 2.411 in Figure 3 - Variable Position (ref. Load-Pressure Correlation chart on page 10) 5. - Page 5 Releasing Pressure on Work Piece: Slowly, carefully turn the release valve counter-clockwise until ram retracts to desired position. Never turn release valve more than 1/2 of a full turn. The ram return system is spring loaded and the release valve system is metered, allowing controlled retraction of the ram.
-
Page 6: Maintenance
MAINTENANCE NOTICE: Use only good quality hydraulic jack oil. Avoid mixing different types of fluid and NEVER use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause premature failure of the jack and the potential for sudden and immediate loss of load. Premium hydraulic jack oil is recommended. Adding oil 1. -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following information is intended as an aid in determining if problem exists. For repair service, contact Matco Tools service center in your area. Symptom Possible Causes Corrective Action Ram will not extend, or respond to • Overload condition •... -
Page 8: Replacement Parts
Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, give Model number, serial number and description below. Call or write for current pricing: Matco Tools 4403 Allen Road, Stow, OH 44224-1096, U.S.A. Tel:(866)BUY-TOOL Matco Tools Website: http://www.matcotools.com... - Page 9 7,881 20,000 8,295 *For Model BRK4T, A = 0.998 in²; For Model BRK10T, A = 2.411 in² Example 1 Model BRK4T exerting 5,000 lbs of force will require what pressure? Pressure = Force / Ram Effective Area = 5,000 lbs / 0.998 in² = 5,010 psi...
- Page 10 Matco Tools 4403, Allen Road, Stow, OH 44224-1096, U.S.A. Tel: (866) BUY-TOOL Matco Website: http://www.matcotools.com...
-
Page 11: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, Matco Tools will repair or replace, at its option, without charge, any of its products, which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.
