TC-Helicon GO TWIN Quick Start Manual

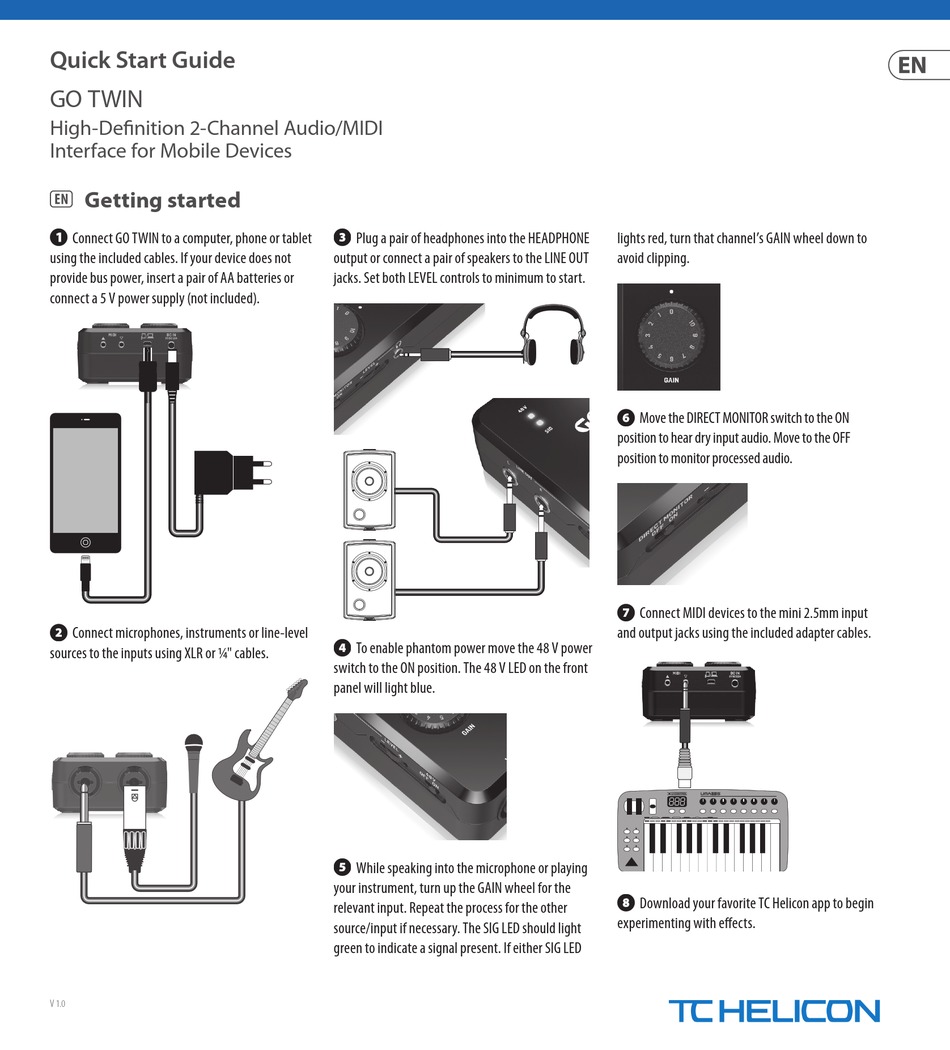

Quick Start Guide
GO TWIN
High-Definition 2-Channel Audio/MIDI
Interface for Mobile Devices
(EN) Getting started
Connect GO TWIN to a computer, phone or tablet
using the included cables. If your device does not
provide bus power, insert a pair of AA batteries or
connect a 5 V power supply (not included).
Connect microphones, instruments or line-level
sources to the inputs using XLR or 1/4" cables.
V 1.0
Plug a pair of headphones into the HEADPHONE
output or connect a pair of speakers to the LINE OUT
jacks. Set both LEVEL controls to minimum to start.
To enable phantom power move the 48 V power
switch to the ON position. The 48 V LED on the front
panel will light blue.
While speaking into the microphone or playing
your instrument, turn up the GAIN wheel for the
relevant input. Repeat the process for the other
source/input if necessary. The SIG LED should light
green to indicate a signal present. If either SIG LED
lights red, turn that channel's GAIN wheel down to
avoid clipping.
Move the DIRECT MONITOR switch to the ON
position to hear dry input audio. Move to the OFF
position to monitor processed audio.
Connect MIDI devices to the mini 2.5mm input
and output jacks using the included adapter cables.
Download your favorite TC Helicon app to begin
experimenting with effects.
