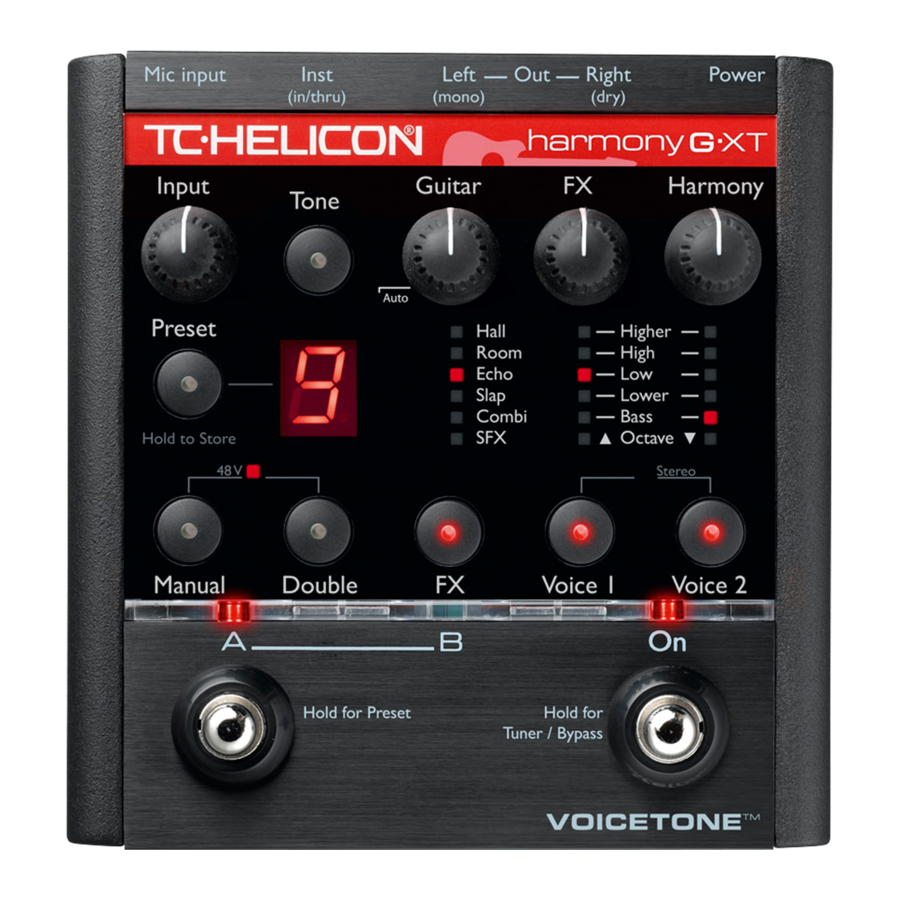

TC-Helicon VOICETONE HARMONY-G XT Quick Start Manual

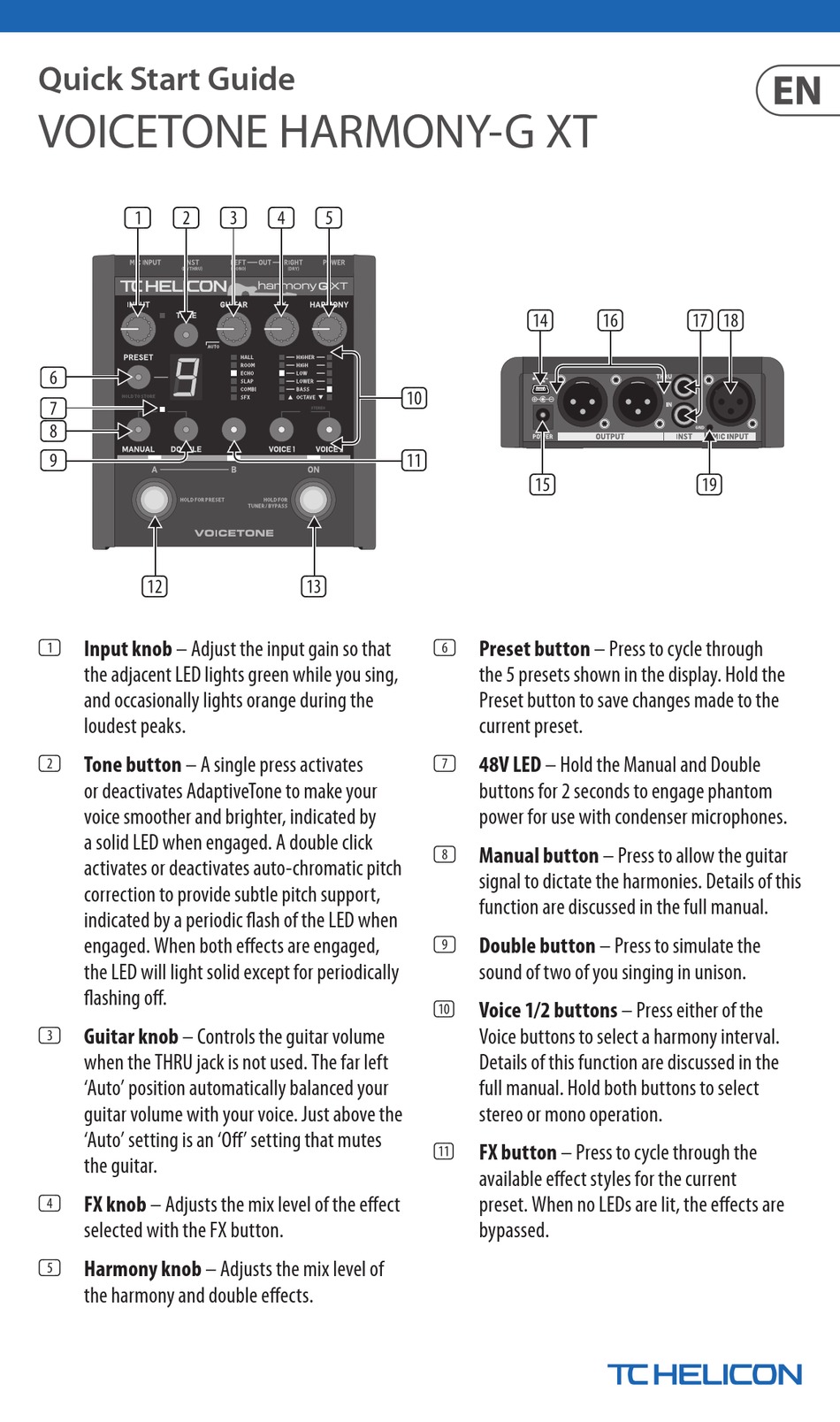

Quick Start Guide
VOICETONE HARMONY-G XT
(1) (2)
(6)
(7)
(8)
(9)
(12)
(1) Input knob – Adjust the input gain so that
the adjacent LED lights green while you sing,
and occasionally lights orange during the
loudest peaks.
(2) Tone button – A single press activates
or deactivates AdaptiveTone to make your
voice smoother and brighter, indicated by
a solid LED when engaged. A double click
activates or deactivates auto-chromatic pitch
correction to provide subtle pitch support,
indicated by a periodic flash of the LED when
engaged. When both effects are engaged,
the LED will light solid except for periodically
flashing off.
(3) Guitar knob – Controls the guitar volume
when the THRU jack is not used. The far left
'Auto' position automatically balanced your
guitar volume with your voice. Just above the
'Auto' setting is an 'Off' setting that mutes
the guitar.
(4) FX knob – Adjusts the mix level of the effect
selected with the FX button.
(5) Harmony knob – Adjusts the mix level of
the harmony and double effects.
(3) (4) (5)
(13)
(14)
(10)
(11)
(15)
(6) Preset button – Press to cycle through
the 5 presets shown in the display. Hold the
Preset button to save changes made to the
current preset.
(7) 48V LED – Hold the Manual and Double
buttons for 2 seconds to engage phantom
power for use with condenser microphones.
(8) Manual button – Press to allow the guitar
signal to dictate the harmonies. Details of this
function are discussed in the full manual.
(9) Double button – Press to simulate the
sound of two of you singing in unison.
Voice 1/2 buttons – Press either of the
(10)
Voice buttons to select a harmony interval.
Details of this function are discussed in the
full manual. Hold both buttons to select
stereo or mono operation.
FX button – Press to cycle through the
(11)
available effect styles for the current
preset. When no LEDs are lit, the effects are
bypassed.
(16) (17) (18)
(19)
