Installation of the range.
Seal the Openings
Seal any openings in the wall behind the range
and in the floor under the range when hookups
are completed.

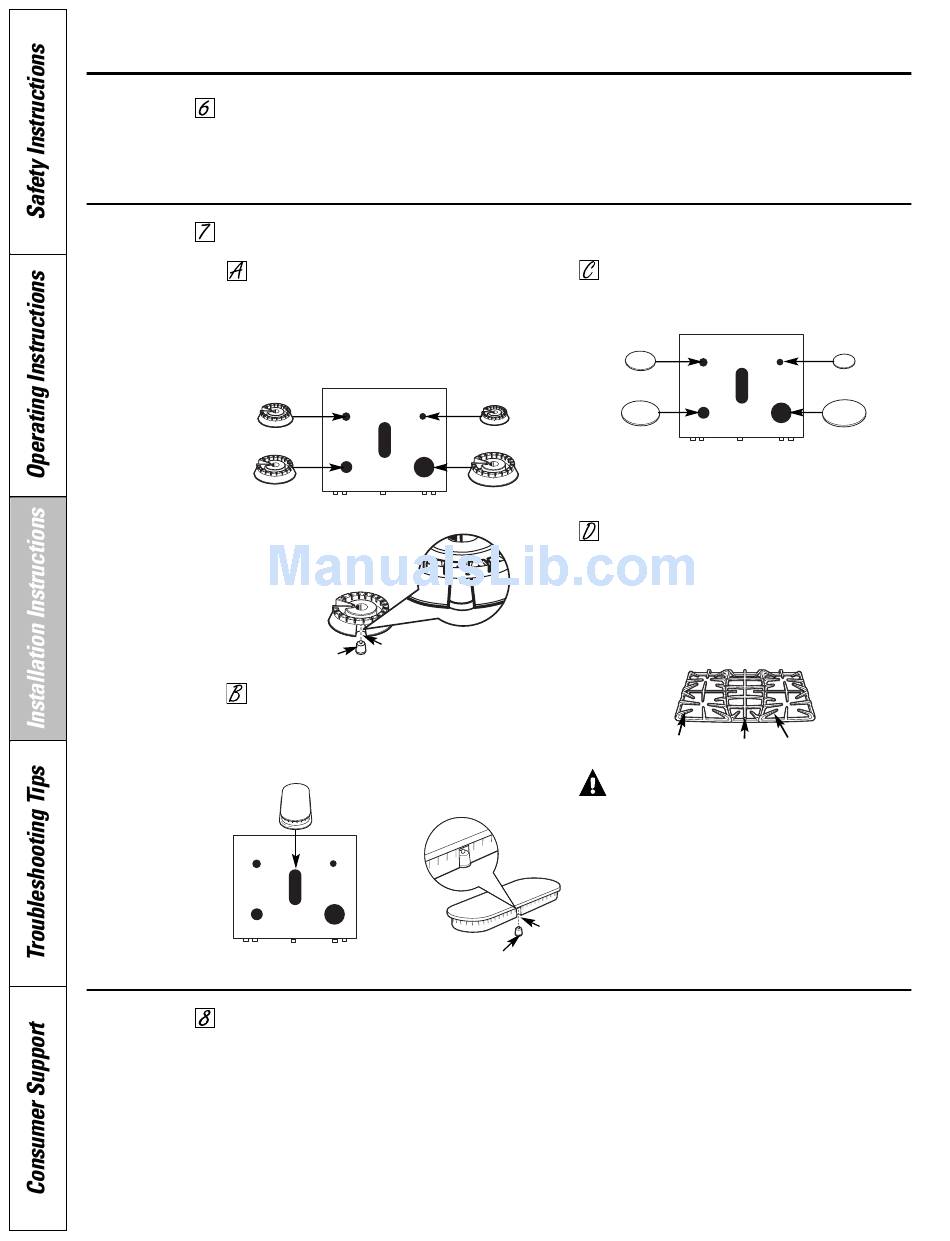

Assemble Surface Burners
Burner Heads (on some models)
Place burner heads over the electrodes
on the cooktop, in the correct locations
according to their size. There is one small,
one medium, one large and one extra large
burner head.
Medium head
Large head
Make sure the slot
in the burner head is
positioned over the
electrode.
Oval (Center) Burner Head/Cap Assembly
Place the oval (center) head/cap assembly
over the electrode on the cooktop.
Oval head and cap
Front of range
Check Ignition of Surface Burners
Operation of all cooktop burners should be
checked after the range and gas supply lines
have been carefully checked for leaks.
50
Front of range
Slot
Electrode
Make sure the slot in the
burner head is positioned
assembly
over the electrode.
Caps
Place the matching size caps onto the burner
bases or heads.
Medium cap
Small head
Large cap
Make sure that the heads and caps are
Extra large head replaced in the correct locations.
Grates
Place the left, right and center grates on the
cooktop. These grates are position specific.
The undersides of the left and right grates
are marked "LEFT FRONT" and "RIGHT
FRONT." Place the middle grate with its
bowed front toward the front of the range.
CAUTION:
without all burner parts in place.
Slot
Electrode
Electric Ignition
Select a top burner knob and simultaneously
push in and turn to LITE position. You will hear
a clicking sound indicating proper operation of
the spark module. Once the air has been purged
from the supply lines, burners should light within
4 seconds. After burner lights, rotate knob out of
the LITE position. Try each burner in succession
until all burners have been checked.
Small cap
Extra large cap
Front of range
Left Front
Center Right Front
Do not operate the burner
