AVMOD8 – 2.4GHz WIRELESS A/V TRANSMITTER/RECEIVER WITH IR REMOTE CONTROL
1. Contents
• Transmitter (AVMOD8TX)
• Receiver (AVMOD8RX)
• IR mouse / transmitter
• Two A/V cables (RCA to SCART for PAL)
• Two mains adapters
• Adhesive strip (to fix the IR transmitter)
• Detailed manual
2. Description
The transmitter and receiver look very much alike. Find the nametag with 'AVMOD8TX' (= transmitter) or 'AVMOD8RX' (=
receiver).

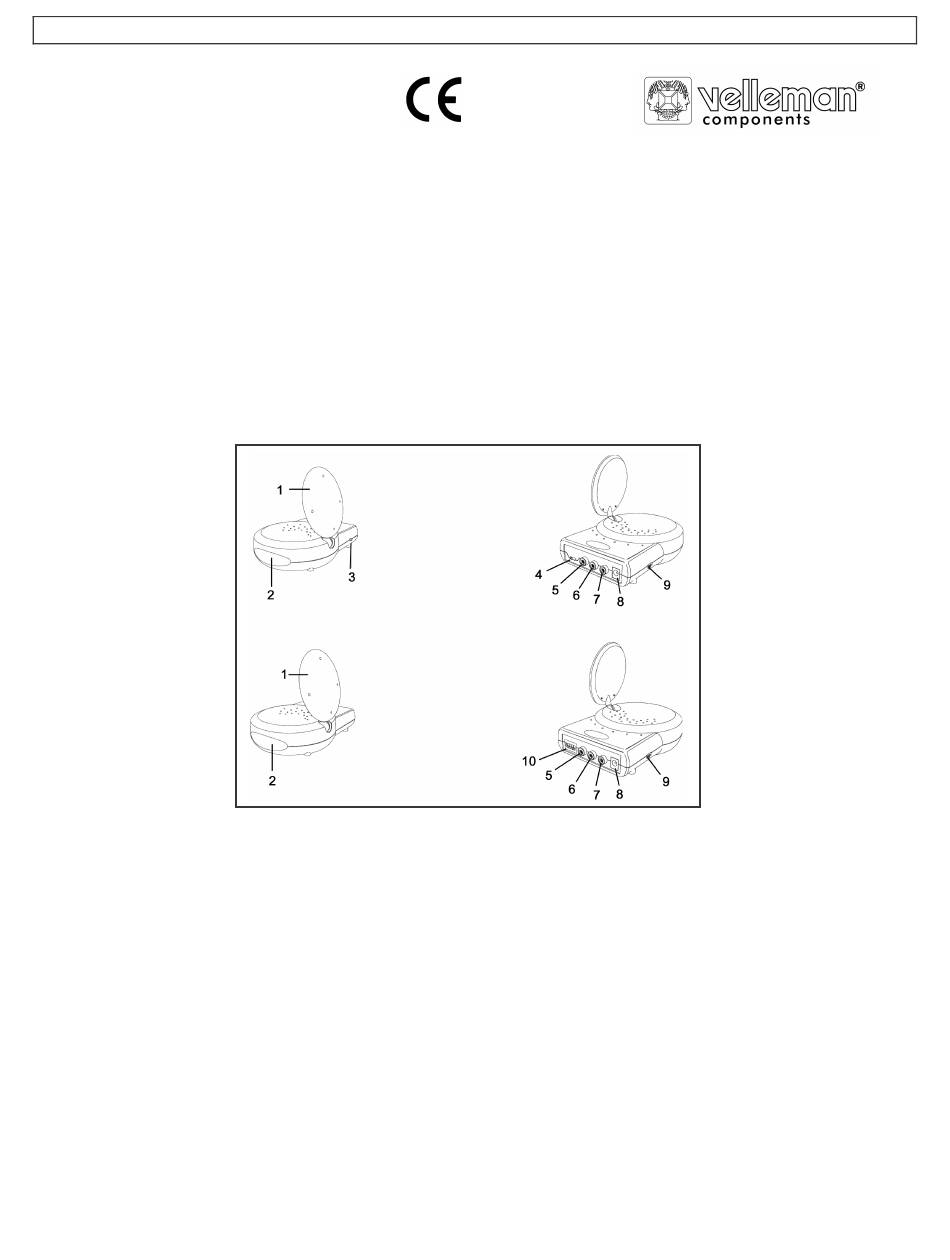

front transmitter

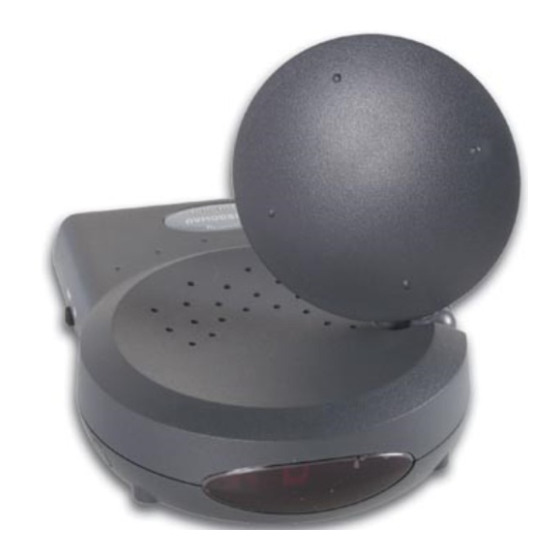

front receiver
1. ON/OFF LED : this LED is lit when the ON/OFF switch is in the ON position.
2. 2.4GHz A/V antenna (front) : Transmits A/V signals. Attention : the antenna will only turn 270° (see "Orienting devices"
on p. 6).
3. Connection for IR transmitter
4. Channel switch : Select the desired channel number. Remember to select the same channel on both transmitter and
receiver.
5. Audio left jack (white)
6. Audio right jack (red)
7. Video jack (yellow)
8. 9V adapter jack
9. ON/OFF switch
10. Channel switches : Place the channel switch in the ON position to select the channel. Switch 5 sets the timer for the
autosequence function. Select the same channel number for transmitter and receiver.
AVMOD8
1
back transmitter
back receiver
NL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Velleman AVMOD8
Summary of Contents for Velleman AVMOD8
- Page 1 AVMOD8 – 2.4GHz WIRELESS A/V TRANSMITTER/RECEIVER WITH IR REMOTE CONTROL 1. Contents • Transmitter (AVMOD8TX) • Receiver (AVMOD8RX) • IR mouse / transmitter • Two A/V cables (RCA to SCART for PAL) • Two mains adapters • Adhesive strip (to fix the IR transmitter) •...
- Page 2 AUDIO LEFT jack of the receiver. If the jacks on the TV are a different colour, then you should connect the yellow plug with the VIDEO jack, the red plug with the AUDIO RIGHT jack and the white plug with the AUDIO LEFT jack. AVMOD8...
- Page 3 Remark : The connector on the A/V component is a SCART jack for PAL systems. Connect the SCART connector (RECEIVER) with the SCART jack (IN) of the A/V component and connect the RCA connector with the receiver (AVMOD8RX = extra receiver). AVMOD8...
- Page 4 Remark : If the TV only has 1 (mono) audio input : connect the white plug with this audio input and with the AUDIO LEFT jack of the receiver. If the TV jacks are different colours: connect the yellow plug with the VIDEO jack, the red one with the AUDIO RIGHT jack and the white plug with the AUDIO LEFT jack. AVMOD8...
- Page 5 IR window of the receiver. Aim the remote control at the front of the receiver and operate it like you always do. A/V source transmitter receiver IR-mouse remote control AVMOD8...
- Page 6 A/V OUT. b) Connection with a Stereo You can connect the AVMOD8 to your stereo : • Use an A/V cable to connect the transmitter's audio jacks with your stereo (mind the colours). You do not need the yellow video plug.
- Page 7 • Do not try to open the housing. Have a skilled technician repair or check the device. • Do not drop the AVMOD8, do not shake it or hit it. Excessively rough treatment may damage the internal circuits. • Wipe the device clean with a soft cloth and a mild detergent. Do not use solvents or abrasives.
