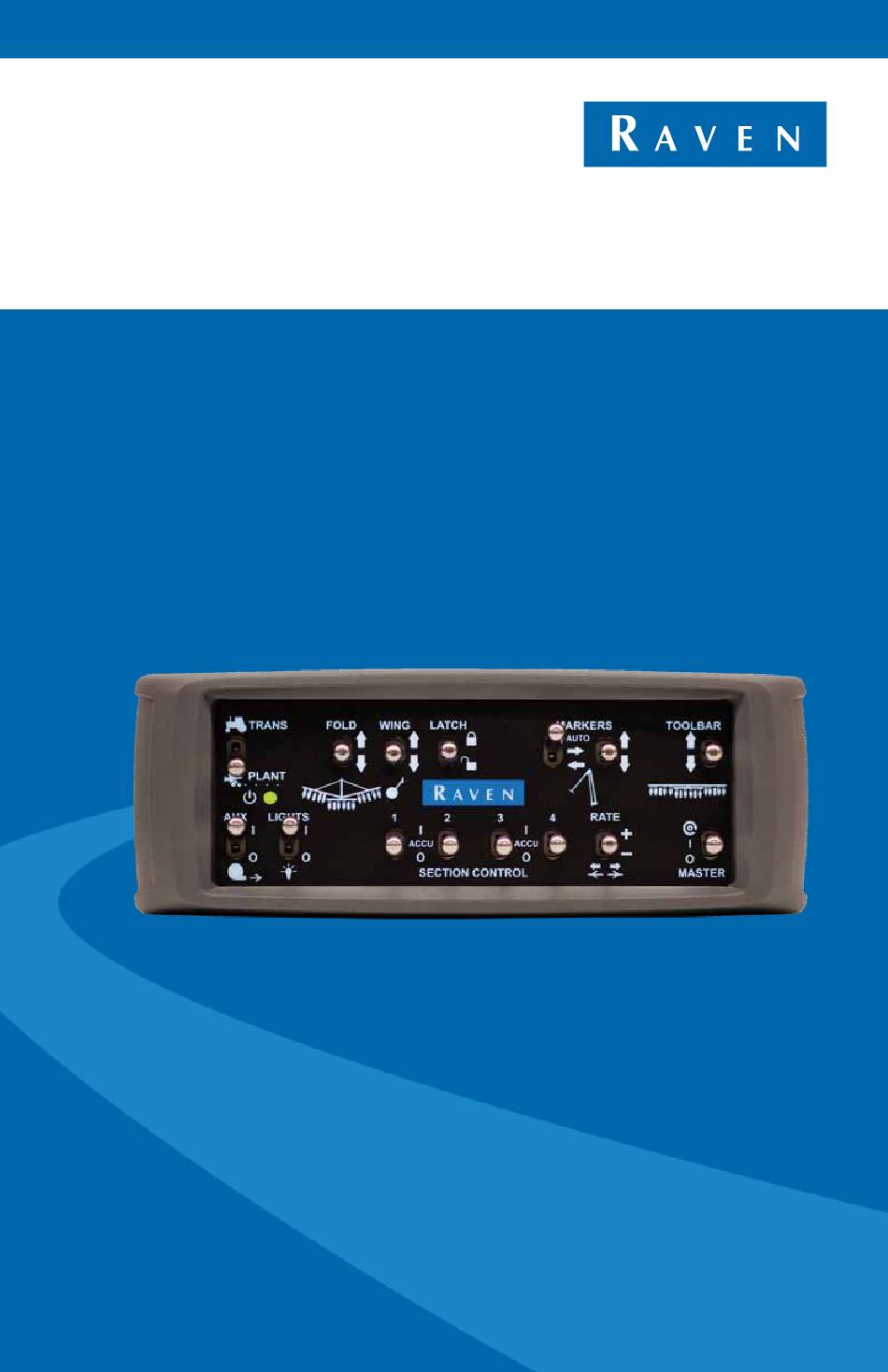

- Page 1 Installation and Operation Guide CAN Switch Box™ for use with OmniRow Systems...
- Page 2 Raven Industries shall not be held responsible for any modifications or repairs made outside our...
-
Page 3: Care And Maintenance

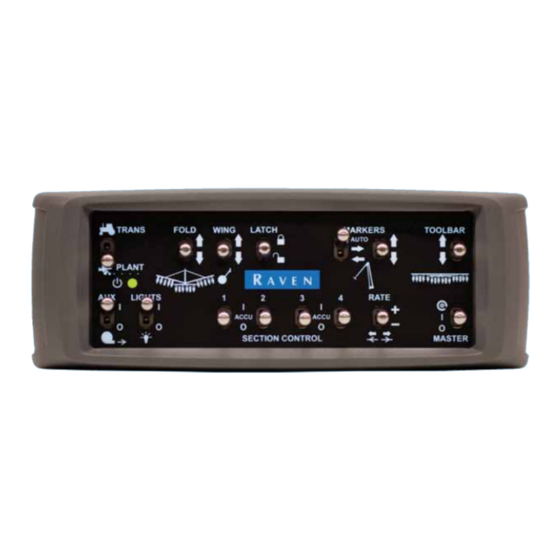

• An Increase/Decrease switch for quick application rate adjustments. • A Logic Power LED. • In addition to the above features, the CAN Switch Box for use with OmniRow systems offers implement control switches which may be used to control several functions connected to the OmniRow control system. -
Page 4: Installation
2. Set the RAM mounting arm over the mounting plate and secure using the screws supplied with the field computer. 3. Align the CAN Switch Box with the remaining predrilled holes and secure using screws supplied with the switch box. -
Page 5: Cable Connections
Note: The supplied mounting bracket must be attached to the Envizio Pro or Envizio Pro II field computer so that the CAN Switch Box is mounted below the field computer. 1. Set the mounting bracket over the mounting posts on the back of the field computer. - Page 6 CAN Switch Box. Troubleshoot the logic power system before proceeding with operations. If this LED is not lit when the Raven console or field computer is powered up, troubleshoot the CANbus system before starting any system operations. Transport/Plant Mode Switch The transport mode switch is used lock out switch box functions when the implement is being transported over the road or when ready for work in the field.
- Page 7 Transport Mode Switch Functions Note: The implement proximity switch installed with the OmniRow system will override the section and master switches when the implement is raised to transport height. 1 - Fold Switch. (Only functional in transport mode) Use the Fold switch to fold or unfold the implement.
- Page 8 6 - Section Switches. The 3-way selectable section switches may be used to toggle each section (up to four individual sections). The section switches may be used to toggle up to ten individual sections. Raven field computers are also capable of controlling additional sections using the section mapping feature to group sections to the same switch.
- Page 9 7 - Increase/Decrease Rate Switch. Note: The INC/DEC switch only controls the selected product in automatic or manual mode. Refer to the field computer or control console manual for more information on selecting products during application. For selected products set to automatic control mode, the INC/DEC switch is used to increase or decrease the target rate of products selected and actively displayed on the console or field computer.
-
Page 10: Troubleshooting
Console or field connections. No power to computer does console not power up Check chassis cable fuses. Check CAN Switch Box switched power connection. Ensure console or field computer is powered on. Logic power No power to LED not lit... -
Page 11: Setup Issues
CAN Switch Box Toggle the section and master switches switches in the to the on position. off position Check the speed sensor connection on the back of the CAN Switch Box. Section status displays as Automatic Move vehicle into a previously inactive... - Page 12 Possible Issue Solution Cause A fast close or PWM close valve must be selected to shut off product Wrong valve application in zero rate zones. Refer to type installed field computer or control console manual for more information about selecting valve type. Product applied to zero rate zones...
-
Page 13: Can Troubleshooting
CAN Troubleshooting Although the control algorithm is located within the CAN node(s), the same troubleshooting techniques that apply to traditional hard wired control systems still apply to a CANbus control network. CAN allows for modularization of the control system, but the behavior of the system remains the same. Flow and speed sensors, the control valve and any boom valves, are used in the same manner. -
Page 14: Limited Warranty
How Can I Get Service? Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves with the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. -
Page 15: Extended Warranty
How Can I Get Service? Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves with the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility. - Page 16 Sioux Falls, SD 57117-5107 Fax: 605-331-0426 www.ravenprecision.com www.ravenhelp.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under copyright laws. ©Raven Industries, Inc. 2013...
