EnOcean LEDD Installation Manual

LED Zone Controller 0-10V Installation Guide
Package Contents
LED Zone Controller
n
Product Description
The LED zone controller (LEDD) uses wireless technology to
communicate with other self-powered EnOcean based
products and provides an amazingly simple solution for
dimming control of LED lighting.
LEDD is directly supplied from the auxiliary 12V supply
output of a connected LED driver. Its compact size enables
flexible installation inside of or next to electrical boxes and
fixtures so it can be easily wired out of sight using standard
wiring practices.
Simply link the module to an EnOcean-based motion sensor,
light level sensor or rocker switch and experience levels of
efficiency and convenience that can only be achieved
through wireless controls.
It is also possible to link LEDD to a central controller or via a
gateway to building automation systems like BACnet.
Product Features Include:
Enables wireless dimming of a single fixture or a zone of
n
multiple daisy chained LED fixtures (e.g. 20 each 30W or
10 each 60W).
Supports California Title 24 daylight harvesting scenarios,
n
occupancy control and manual dimming with input from
self-powered wireless switches and sensors. Implements
load shedding initiated by separate Demand Response
Controllers
Installs inside or mounts to electrical box using threaded
n
connector
Supports wireless remote commissioning to link devices
n
and set parameters
© 2017 EnOcean GmbH V2.0
Tools Required
Screwdriver
n
Wire nuts
n
Specifications (typ. values)
Power Supply 11.0 V – 13.2 V DC
Supply Current (typ) 16 mA @12VDC supply (no sourcing)
38 mA @12VDC supply
(10V/20mA sourcing)
Power Consumption < 200 mW @ 12 V DC
(excluding 0-10V sourcing power)
< 460 mW @ 12 V DC
(at maximum 0-10V sourcing power)
0-10V output Tolerances +3%/-4% (1-10V range)
Current sourcing / sinking 20 mA*
or high sinking current and dim value settings
* F
below 1V, the output voltage may exceed the
selected output value and reach 1V max.
Inputs/Outputs Flying-lead style wires:
2 power input wires
n
2 output wires for 0-10V control
n
Local User Interface 2 Buttons, 1 LED for device
configuration & manual control
RF Standard EnOcean 902 MHz (LEDRU)
Transmission Range 80 ft. (25 m)
EnOcean Equipment D2-40-00 with RECOM
Profile Compatible with Navigan™
Interoperable Rocker Pad Switch (F6-02-02)
Products / EEPs Occupancy Sensor (A5-07-01)
(EnOcean Occupancy Sensor (A5-07-02)
Equipment Profiles) Occupancy Sensor (A5-07-03)
Light Level Sensor (A5-06-02)
Light Level Sensor (A6-06-03)
Central Controller (A5-38-08)
Demand Response (A5-37-01)

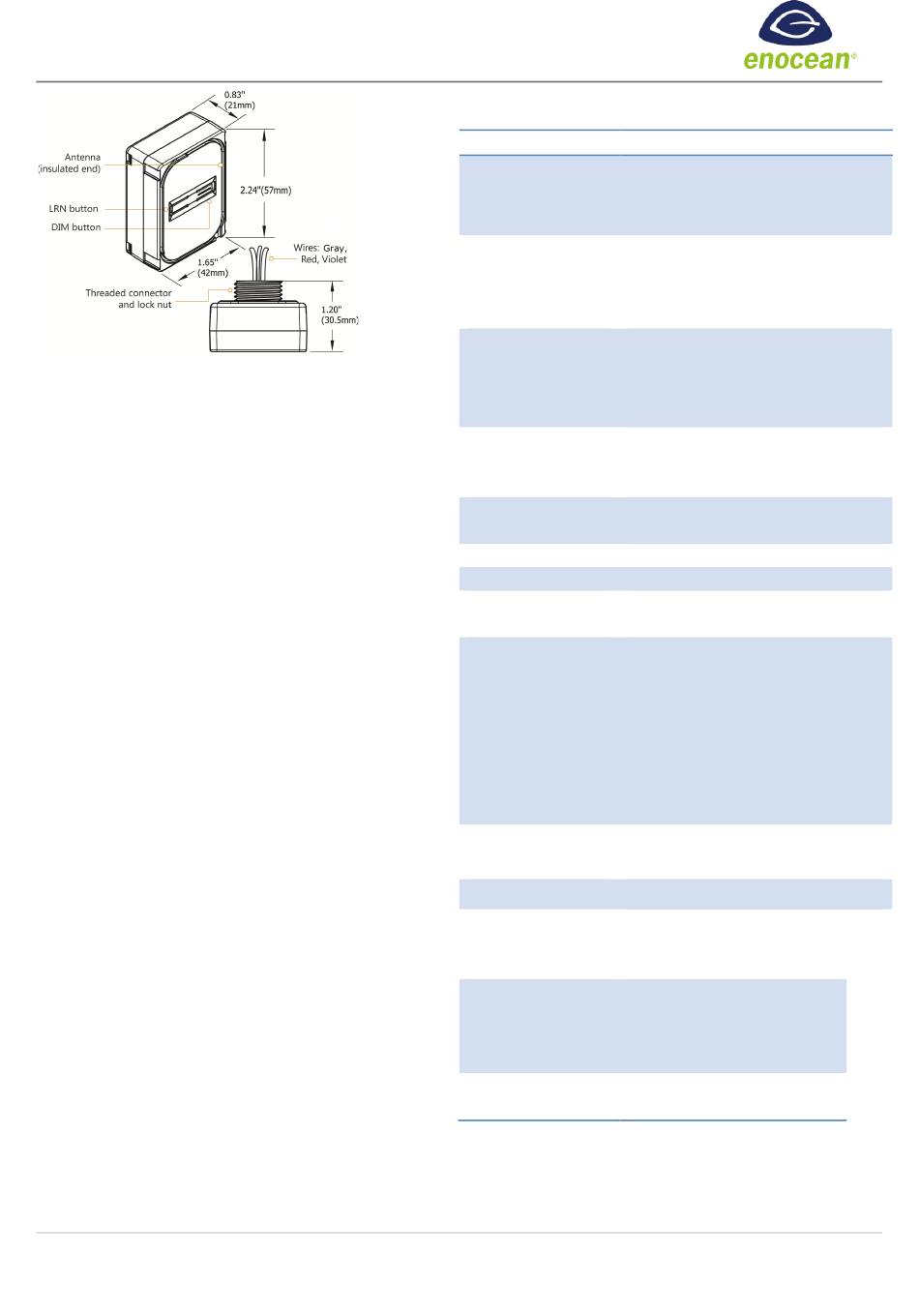

Dimensions 2.24" H x 1.65" W x 1.2" D
(57mm x 42mm x 30mm)
Weight 2.5oz. (70g)
Mounting Connect to electrical boxes and
n
fixtures using threaded nipple
Install inside standard electrical box
n
Environment Indoor use only
n
32° to 140° F (0° to 60° C)
n
20% to 95% relative
n
humidity (non-condensing)
Agency Compliance FCC, IC
UL 2043 plenum rated
Page 1
