Starter set n 61 door bell

Advertisement

Quick Links

Bedienungsanleitung
Einsteigerset Nr. 61
Türklingel
Bezeichnung
Vorkonfiguriertes Set bestehend aus Wandsender WS-NASS
und Schaltaktor miniS01, 1 Schliesskontakt 16 A 230 V~,
Versorgungsspannung 230 V~
KURZ ANLEIT UNG
• Schaltaktor gemäss Schema anschliessen
• Wandsender montieren
• Fertig!
FUNKT IONEN
• S04 Ein-Impuls
• X01 Gateway
• Repeater
EIGENSCHAFT EN
• Plug&Play - komplett vorkonfiguriertes Set
• Der mitgelieferte Wandsender ist bereits mit der
Funktion S04 Ein-Impuls eingelernt
• Impulslänge = 3 Sekunden
• Bis zu 50 Wandsender einlernbar
• Alle Funktionen sind mit der Software E-Tool
konfigurierbar
• Äusserst kompakte Bauform
• Nebenstelleneingang
• Temperatur- und Überlastschutz
• IP55 (Wandsender)
• Bidirektionale EnOcean Funktechnologie 868.3 MHz
• EnOcean Equipment Profile (EEP) D2-01-00
ALLGEMEIN
Die Omnio Aktoren (Empfänger) werden über Funksignale der Omnio Sender an-
gesteuert. Jeder Sender kann innerhalb seines Sendebereichs eine unbegrenzte
Anzahl an Aktoren ansteuern. Die Funksender werden manuell durch ein einfaches
Verfahren auf den Aktor ein- und ausgelernt. Mit der Omnio Software E-Tool lassen
sich alle Omnio Aktoren auch ohne manuellen Zugriff zum Gerät per Funk konfigu-
rieren.
PRODUKT BESCHREIBUNG
Das Omnio Einsteigerset Nr. 61: Türklingel ist ein vorkonfiguriertes Set zum
Schalten von elektrischen Verbrauchern. Es lässt sich ohne weitere Konfiguration
installieren. Das Set besteht aus einem Omnio Schaltaktor miniS01 und einem Om-
nio Wandsender WS-CH-102, welcher bereits mit der Funktion S04 Ein-Impuls ein-
gelernt ist. Sein potentialgebundener 230 V~ Ausgang kann von bis zu 50 Omnio
Funksendern angesteuert werden. Jedem dieser Sender wird auf dem Schaltaktor
automatisch die Funktion S04 Ein-Impuls zugeordnet. Über die Software E-Tool
kann zusätzlich der Repeater aktiviert werden. Der Nebenstelleneingang ist stan-
dardmässig mit der Funktion S04 Ein-Impuls belegt. Bidirektionale Kommunikation,
EEP D2-01-00. Geeignet als Einbaugerät. Der Wandschalter ist geeignet für Mon-
tage im Nass- und Aussenbereich (IP55).
ANZEIGE - UND BEDIENELEMENT E
Klemmen
• L
Netzspannung L 230 V~
• N
Netzspannung N 230 V~
• T
Nebenstelleneingang
• L'
Relaisausgang 230 V~
Bedienelemente
• LRN
Lerntaste
• LED
LED rot / grün
AWAG Elektrotechnik AG Sandbüelstrasse 2 CH-8604 Volketswil
Tel. +41 44 908 19 19 Fax +41 44 908 19 99 info@awag.ch www.awag.ch
ES61-CH NASS
Typ / Type
Art.-No./Item N°
ES61-CH
9100 061
NASS

GENERAL

The Omnio actuators (receivers) are controlled by radio signals from the Omnio
transmitters. Each transmitter can control an unlimited number of actuators within
its transmission range. The radio transmitters are manually taught-in and taught-out
to the actuator by a simple procedure. With the Omnio software E-Tool all Omnio
actuators can be configured via radio even without manual access to the device.
PRODUCT DESCRIPT ION

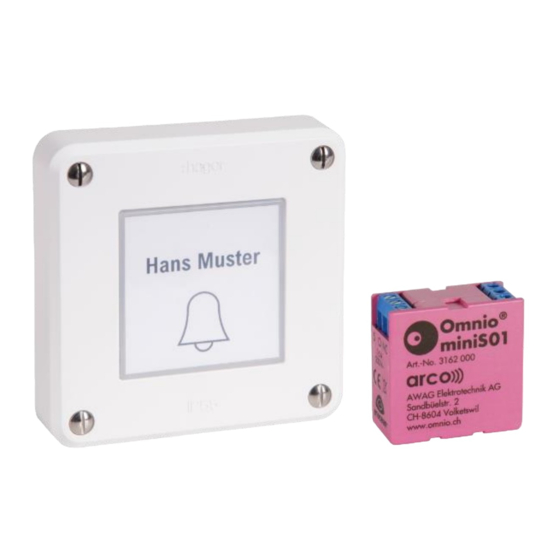

The Omnio starter set N° 61: door bell is a preconfigured set for switching elec-
trical loads. It can be installed without further configuration. The set consists of an
Omnio switching actuator miniS01 and an Omnio wall mounted transmitter WS-CH-
102, which is already programmed with the function S04 On-impulse. Its non-iso-
lated 230 V~ output is able to be controlled by up to 50 Omnio radio transmitters.
Each transmitter can be programmed with the function S04 On-impulse. Via E-Tool
software the repeater can be activated as well. The extension input is preconfigured
by default with the function S04 On-impulse. Bidirectional communication, EEP D2-
01-00. Suitable as built-in unit. The wall mounted transmitter is suitable for mounting
in the wet and outdoor area (IP55).
- L' T
L N N

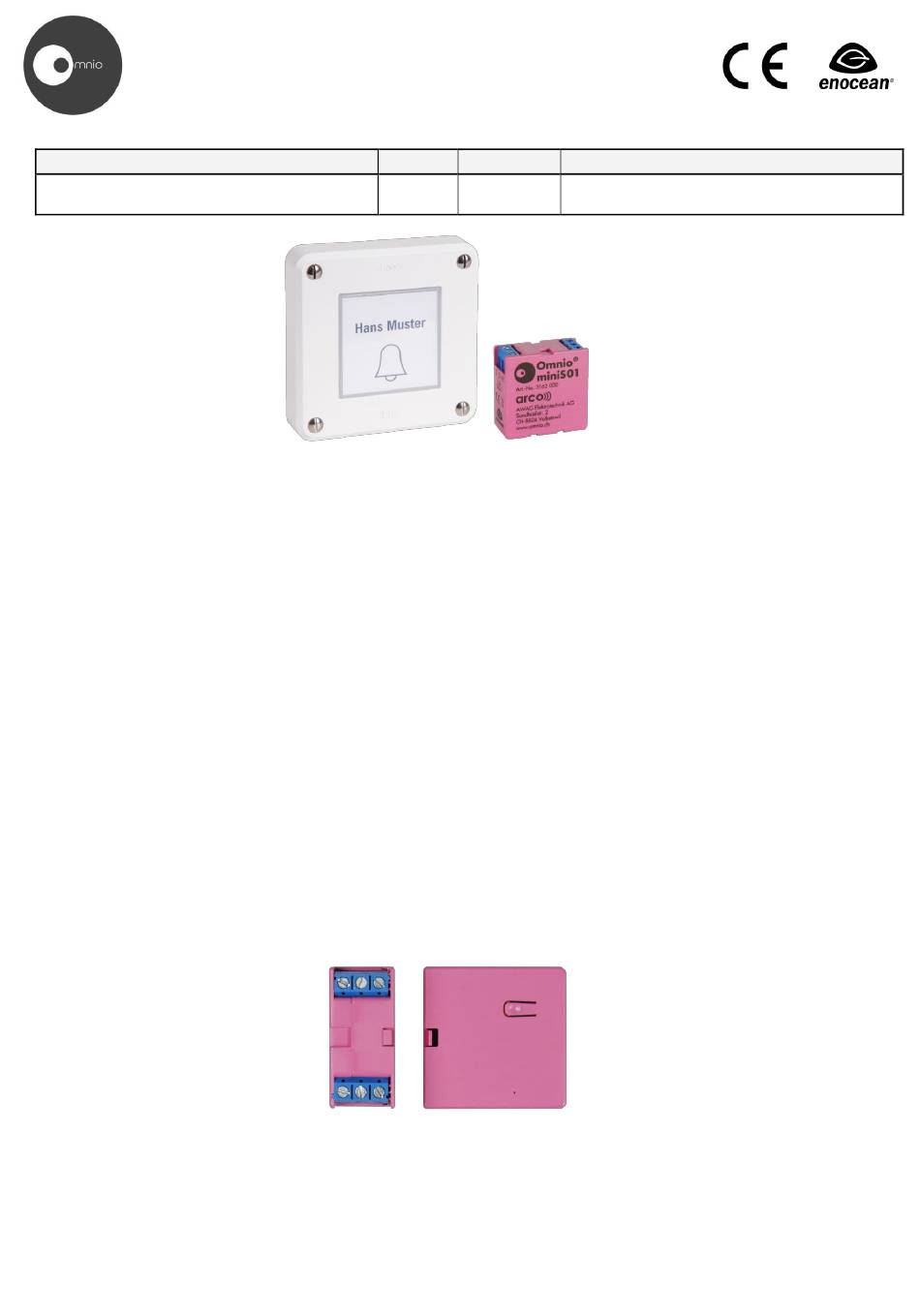

Manual
starter set N° 61
door bell
Designation
Preconfigured set consisting of wall mounted transmitter WS-
NASS and switching actuator miniS01, 1 closing contact 16 A
230 V~, supply voltage 230 V~
BRIEF INST RUCT ION
• Attach switching actuator according to plan
• Mount wall mounted transmitter
• Done!
FUNCT IONS
• S04 On-impulse
• X01 Gateway
• Repeater
FEAT URES
• Plug&Play - completely preconfigured set
• The included wall mounted transmitter is already
programmed with function S04 On-impulse
• Pulse duration = 3 seconds
• Up to 50 transmitter can be programmed
• All functions can be programmed via E-Tool
software
• Extremely compact design
• Extension input
• Thermal and overload protection
• IP55 (wall mounted transmitter)
• Bidirectional EnOcean radio technology 868.3 MHz
• EnOcean Equipment Profile (EEP) D2-01-00
DISPLAY AND OPERAT ING ELEMENT S
LRN
Terminals
• L
• N
• T
• L'
Operating elements
• LRN
• LED
LED
EnOcean-Technologie (868 MHz)
line voltage L 230 V~
line voltage N 230V~
extension input
relay output 230V~
learn button
LED red / green
9100061.docx / 1876214
SW: miniS01_V200116 / 27.01.2020 Seite 1 / 4
