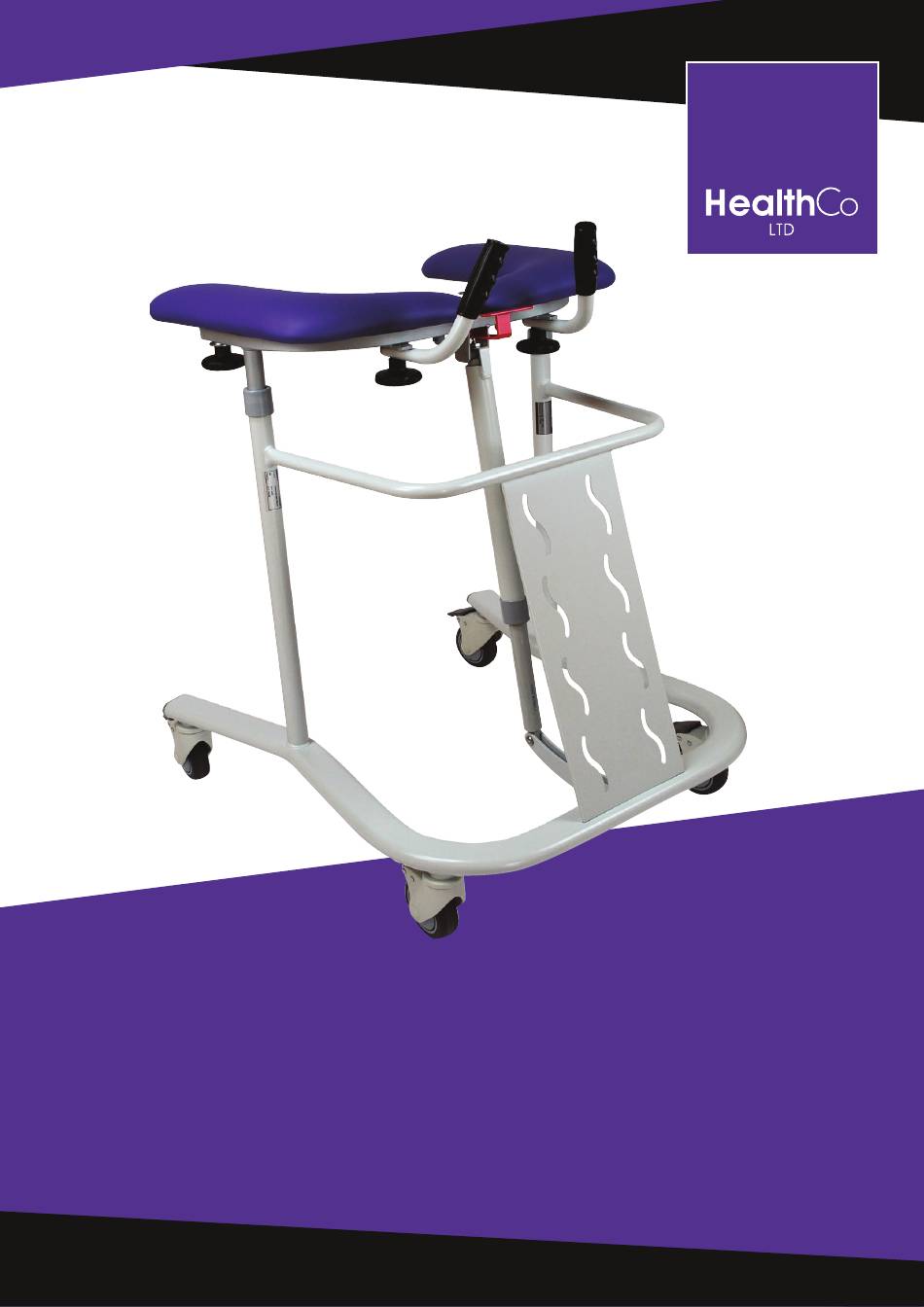

- Page 1 Selina Bariatric User Manual IMPORTANT: Do not use without having first read this manual. w: healthcoltd.co.uk...
- Page 2 4. The maintenance as well as the safety and technical control must be carried out only by HealthCo or by any other professional company authorised by HealthCo. 5. Assembly, extensions, revisions or repairs must be carried out only by HealthCo or by any other professional company authorised by HealthCo.
- Page 3 Regulations and norms Provided that certain norms or regulations are valid, they should be taken into account. CE mark CE-mark refers to the guideline 93/42/EWG for medicinal products. Responsibility and guarantee The manufacturer of the product is responsible for the safety and reliability of the product only if: A.

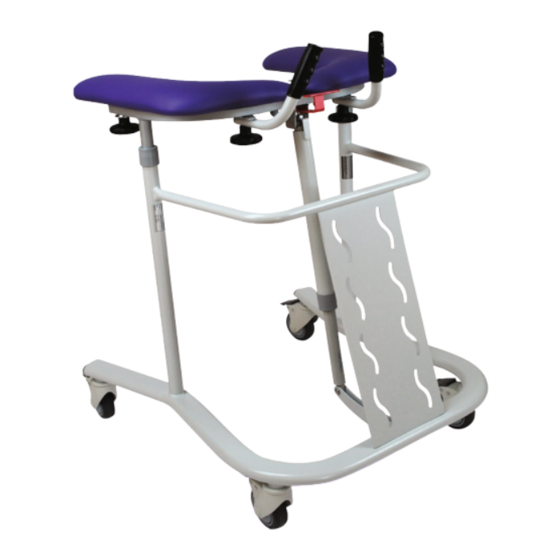

- Page 4 Product display Figure 1: The display of the trigger for height adjustment Figure 2: The display of the walking-assistant trolley with handles Adjustable handles Screw for width adjustment Attachable levers for handles Gas spring with reinforcement tube w: healthcoltd.co.uk t: 01709 278036 e: enquiries@healthcoltd.co.uk The Croft House, York Lane, Rotherham, South Yorkshire, S66 9JH...
- Page 5 Figure 3: Shock absober and sliding rails Sliding rails Shock absorber Figure 4: Bottom side attachment of the gas spring Wheels 100 mm with brakes w: healthcoltd.co.uk t: 01709 278036 e: enquiries@healthcoltd.co.uk The Croft House, York Lane, Rotherham, South Yorkshire, S66 9JH...
- Page 6 Technical information Width: max. 88 cm Length: max. 75 cm Height adjustment: 104-134 cm Weight without packaging: ca. 34 kg Lift: 2 x shock absorber 200 N Max. patient weight: 250 kg SWL: 300 kg w: healthcoltd.co.uk t: 01709 278036 e: enquiries@healthcoltd.co.uk The Croft House, York Lane, Rotherham, South Yorkshire, S66 9JH...
- Page 7 Product management The walking-assistant trolley is ready to be used right after removing the packaging. Height adjustment with the aid of the built in shock absorber The upper part of the walking-assistant trolley can be adjusted by means of the trigger lever (Figure Lifting the upper part: push the handle downwards;...
- Page 8 POSSIBLE CAUSES: SOLUTION: The adjustment of the shock absorber is impossible. There is drag in the shock absorber. Push the shock absorber downwards. The shock absorber is blocked. Loosen the lower attachment of the shock absorber and turn it around in a clockwise direction.
