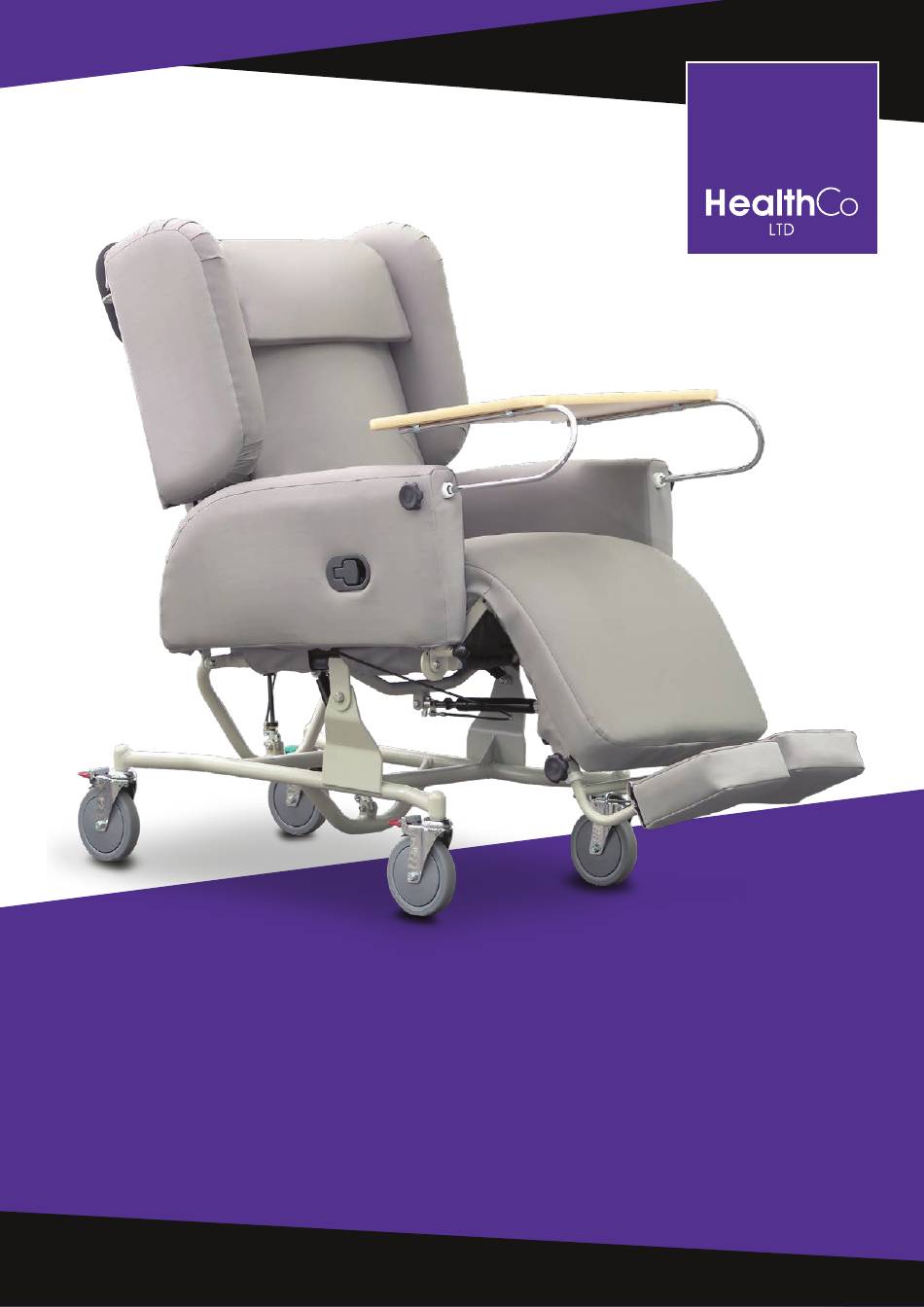

- Page 1 Diana Deluxe Chair Bed User Manual IMPORTANT: Do not use HealthCo DIANA DELUXE CHAIR BED without having first read this manual. w: healthcoltd.co.uk...
- Page 2 w: healthcoltd.co.uk t: 01709 278036 e: enquiries@healthcoltd.co.uk The Croft House, York Lane, Rotherham, South Yorkshire, S66 9JH...
-
Page 3: Label Information
LABEL INFORMATION PRODUCT SAFETY SYMBOLS The symbols below represent labels used on the product to identify warnings, mandatory actions and prohibited actions. It is very important for you to read and understand these symbols completely. Do not remove these labels from your product. Please note that not all of the symbols may be used on your Diana Chair model. -
Page 4: Table Of Contents
TABLE OF CONTENTS Label Information Operation • Safe operating precautions • Engaging the directional locking castor • Engaging the total locking castors Introduction • Transfering • • Safety Moving the Diana Chair • Purchaser’s agreement • Information exchange Care and Maintenance General Guidelines •... -
Page 5: Safety
HealthCo Ltd Dealer. Failure to follow the instructions, warnings and notes in this manual and those located on your HealthCo Ltd product can result in personal injury or product damage and will void the Care Quip product warranty. -
Page 6: General Guidelines
2.1 PRE-USE CHECKS Before using your HealthCo Ltd Diana Chair, check that it is working properly. Never use your chair if a fastening component is loose, a wheel or chair part does not function normally or upholstery parts are torn or undone. -
Page 7: Shipping & Delivery
2.6 MOTOR VEHICLE TRANSPORT The HealthCo Ltd Diana Chair should never be used as a passenger seat in a vehicle, even if it is equipped and strapped. If you do need to transport the chair in a vehicle, ensure that it is secured and that any removable accessories are taken off. -
Page 8: Your Diana Chair
3. YOUR DIANA CHAIR BODY COMPONENTS This section points out the features of your Diana Chair. Carefully review the function and location of each item described, and note that the illustrations and option locations shown in this manual may not precisely reflect those on your Chair. -
Page 9: Specifications
SPECIFICATIONS LARGE Product Code Overall Width 700mm Seat Width 500mm Seat Depth 560mm Castor Size 150mm Backrest Height 730mm Height (Floor to top of push handles) 1290mm Seat Height 650mm Armrest Height 750mm Overall Length 1200mm Forward Tilt 4 Tilt Angle Backward Tilt 39 Overall Weight 49kg... -
Page 10: Adjustments
4. ADJUSTMENTS & FUNCTIONALITY TILTING THE CHAIR • To tilt the chair, squeeze the trigger lever (A) • Release the lever to set the chair in the desired position • Wings should always be up when adjusting the seat or backrest ADJUSTING THE BACKREST •... -
Page 11: Adjusting The Armrests
4.3 ADJUSTING THE LEGREST • The legrest on the Air Chair can be set up to a 400 angle • Before adjusting the legrest, ensure that the castors have brakes applied • Then pull the legrest lever (C) and release when the desired position is achieved •... -
Page 12: Adjusting The Backrest Wings
4.5 ADJUSTING THE BACKREST WINGS • To facilitate user positioning and transfers, the Air Chair backrest wings may be adjusted • To do so, pull the black backrest wing release lever (E) • Always guide the backrest wing as it moves. If you do not, it may cause a fast movement and damage to your Air Chair CAUTION: Always ensure that backrest wings are up before moving the occupant or leaving them unattended... -
Page 13: Modular Pressure Relief System - Adjustable
4.7 Modular Pressure Relief System - Adjustable • This product is designed to redistribute pressure areas and provide the user with comfort. It comprises of a pressure adjustable air bladder in the seating surface and lumbrosacral contouring in the backrest. •... -
Page 14: Operation
Use your foot to push down on the GREY pedals (L) • To disengage, use your foot to push the top of the pedal down CAUTION! Always engage all 3 total locking castors when the HealthCo Ltd Diana Chair is stationary w: healthcoltd.co.uk t: 01709 278036 e: enquiries@healthcoltd.co.uk... -
Page 15: Moving The Diana Chair
5.5 TRANSFERRING • Ensure all brakes are engaged • If carrying out a hoist transfer, the Diana Chair can be put on a slight tilt to facilitate user positioning • Wings and armrests (L) can also be swung back/dropped down to facilitate user transfers CAUTION! Always put wings and armrests back to their original, upright positions as soon as transfer is complete and before the user is left unattended or moved 5.7 MOVING THE DIANA CHAIR... -
Page 16: Care And Maintenance
To ensure safety and product longevity, your Diana Chair should be serviced every 6 months. For replacement of parts, only HealthCo Ltd parts should be used. Any change or repair using parts from another source voids the warranty, and HealthCo Ltd will accept no responsibility for the chair in this case. -
Page 17: Warranty
THREE-YEAR LIMITED WARRANTY For three (3) years from the date of purchase, HealthCo Ltd will repair or replace at our option to the original purchaser, parts found upon examination by an authorised representative of HealthCo Ltd to be defective in material and/or workmanship. -
Page 18: Spare Parts List
Chair Tray Adjustment Bolt Footrest Adjustment Bolt Arm Rest & Wing Pin Assembly For servicing, preventative maintenance and any other questions regarding this or any other product please contact HealthCo Ltd. w: healthcoltd.co.uk t: 01709 278036 e: enquiries@healthcoltd.co.uk The Croft House, York Lane, Rotherham, South Yorkshire, S66 9JH... - Page 19 w: healthcoltd.co.uk t: 01709 278036 e: enquiries@healthcoltd.co.uk The Croft House, York Lane, Rotherham, South Yorkshire, S66 9JH...
- Page 20 t: 01709 278036 e: enquiries@healthcoltd.co.uk The Croft House, York Lane, Rotherham, South Yorkshire, S66 9JH w: healthcoltd.co.uk...
