PRECILUM INGROUND LINEAR Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INGROUND LINEAR
ON/OFF or DALI
Lenght = 650/950/1250
INSTRUCTIONS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the INGROUND LINEAR and is the answer not in the manual?

Questions and answers

Related Manuals for PRECILUM INGROUND LINEAR

Summary of Contents for PRECILUM INGROUND LINEAR

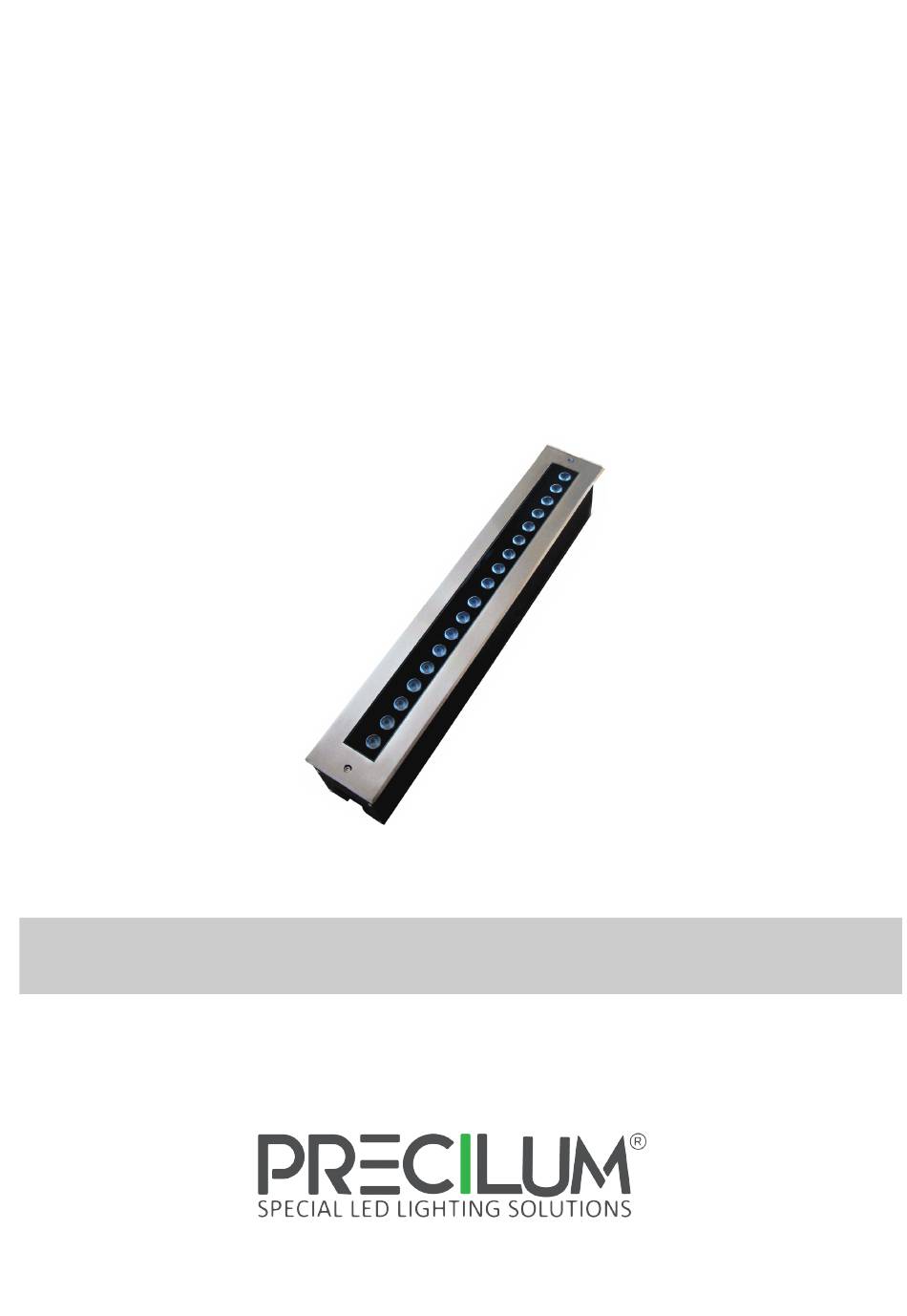

  • Page 1 INGROUND LINEAR ON/OFF or DALI Lenght = 650/950/1250 INSTRUCTIONS MANUAL...

  • Page 2: Table Of Contents

    3. INSTALLATION 4. CONNECTION DIAGRAMS 5. CARE AND MAINTENANCE 6. TECHNICAL SPECIFICATION 7. WARRANTY STATEMENT Electrostatic Sensitive Device (EDS) FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE BEGINNING SETUP AND INSTALLATION. INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...

  • Page 3: Introduction

    The products were designed for exterior use and they are ideal for locations where effect lighting with long lifetime is required. The INGROUND LINEAR range combines OSRAM LED technology with a balanced design to create truly specific lighting systems including TRIDONIC drivers.
  • Page 4 1. INTRODUCTION 1.2 Dimensions Lenght = 650 mm Lenght = 950 mm Lenght = 1250 mm 1250 1211 1232 1242 INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...

  • Page 5: Safety And Operation

    The light fixture must be wired according to respective electrical ● standards. The manufacturer shall not be liable for any modifications of the ● product of incorrect installation of the product. Never install the luminaire on rain, fog or high humidity. ● INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...

  • Page 6: Installation

    30 min. If it doesn’t work study a further drainage system. Aluminum sleeve must be installed on drainage layers, surrounding ● concrete layers and leveled with external finish. 90° INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
  • Page 7 Never cover visible parts of the fittings. Any part not protected by the ● recessing box, must not be in direct contact with the ground or in contact with aggressive chemical elements. MAX. 500KG INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
  • Page 8 3. INSTALLATION 3.2 Connection 3.2.1 Wiring - ON/OFF option Wire L (Live) – black/brown Wire N (Neutral) – blue Wire PE (Earth) – yellow/green INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
  • Page 9 3.2 Connection 3.2.2 Wiring - DALI option DALI DALI Wire L (Live) – black/brown Wire N (Neutral) – blue Wire PE (Earth) – yellow/green Wire DA1 (Dali) – white Wire DA2 (Dali) - white INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
  • Page 10 GEL for sealing junction boxes containing electrical connections. If the IP rating of the connection is not observed, the complaint will not be accepted! For example: https://www.etelec.com/prodotto/mpgel/ Video tutorial: https://www.youtube.com/watch?v=tj6ksKdzuE0 INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...

  • Page 11: Connection Diagrams

    4. CONNECTION DIAGRAMS 4.1 ON/OFF option 230V 3 x 1,5 mm* *Must be specified by Notation: Description: the electrical designer. - Luminaire - Junction box INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
  • Page 12 4. CONNECTION DIAGRAMS 4.1 DALI option 230V DALI 5 x 1,5 mm* *Must be specified by Description: the electrical designer. - Luminaire - Junction box INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...

  • Page 13: Care And Maintenance

    5. CARE AND MAINTENANCE PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND QUALITY AND SHOULD BE TREATED WITH CARE. THE RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD USE AND LONGEVITY FROM THE PRODUCTS. Clean the front transparent cover at least every 6 months. Use a moist, lint-free cloth.

  • Page 14: Technical Specification

    Housing: die cast aluminium Cover: clear hardened glass+stainless steel cover Dimensions: See dimensional drawing Enviroment: IP67 Weight: INGROUND LINEAR 650: 5,9 kg INGROUND LINEAR 950: 8,6 kg INGROUND LINEAR 1250: 10,5 kg Accesories: See website INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...

  • Page 15: Warranty Statement

    7. WARRANTY STATEMENT Precilum provides a product warranty for a period of five (5) years from date of purchase. Please refer www.precillum.com for all warranty terms and conditions. INGROUND LINEAR INSTRUCTIONS MANUAL v1.1 WWW.PRECILUM.COM...
  • Page 16 Please check for latest updates and changes on the Precilum website. ©2021 PRECILUM s.r.o ALL RIGHT RESERVED. All specifications subject to change without notice. WWW.PRECILUM.COM...
