Summary of Contents for PRECILUM INGROUND 15

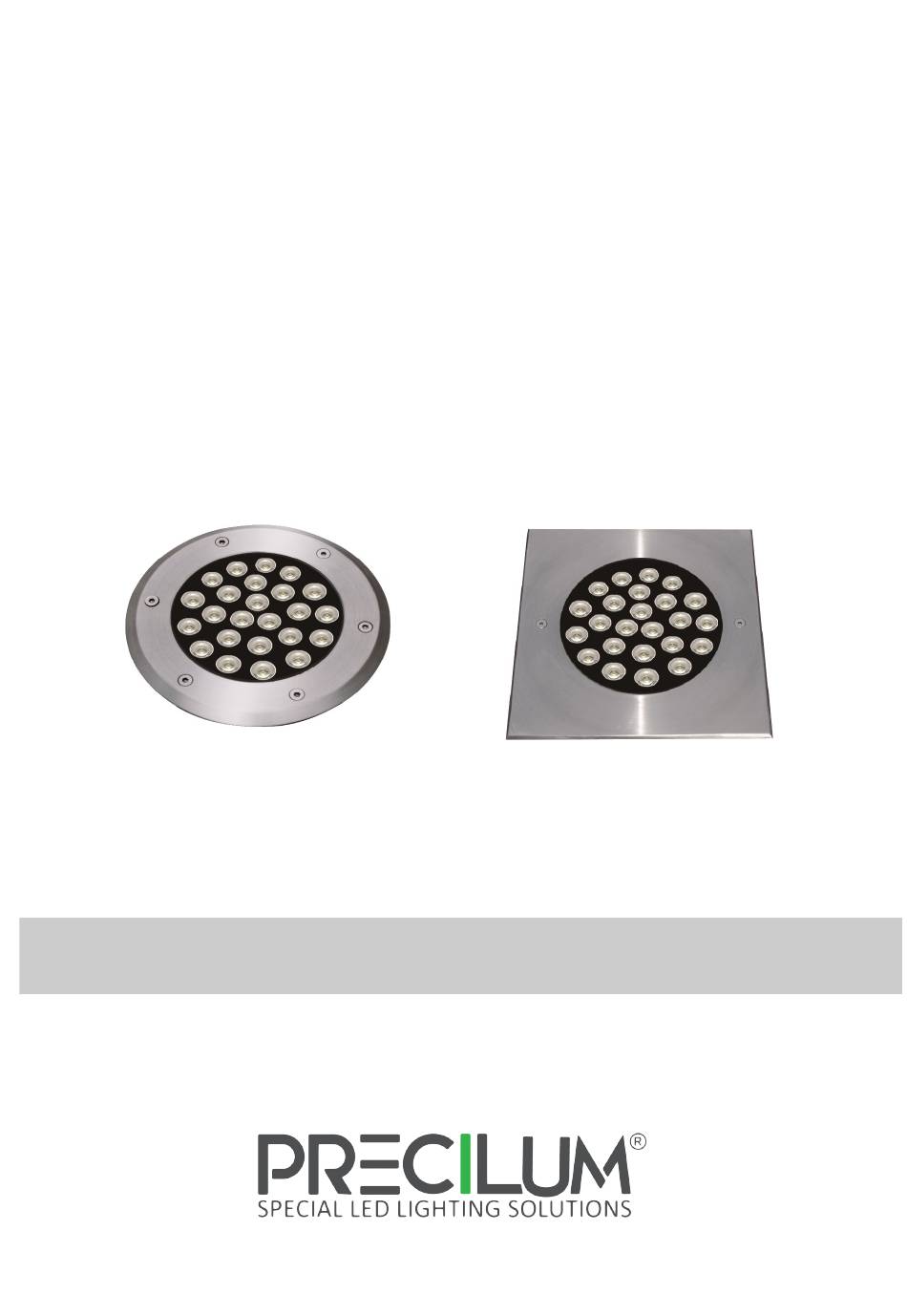

Page 1 INGROUND 15 INGROUND 24 WHITE ON/OFF or DALI Square Round INSTRUCTIONS MANUAL...
Page 2: Table Of Contents
5. CARE AND MAINTENANCE 6. TECHNICAL SPECIFICATION 7. WARRANTY STATEMENT Electrostatic Sensitive Device (EDS) FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE BEGINNING SETUP AND INSTALLATION. INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 3: Introduction
1. INTRODUCTION 1.1 About the product The PRECILUM Inground range brings the INGROUND to the outdoor world of exterior lighting. With IP67 rating and drive over capability these Inground fixtures are capable of meeting most exterior applications. The refined thermal management system incorporates a sleek and robust heat-sink directly into the fixture to ensure maximum heat transfer and long life-time.
Page 4 1. INTRODUCTION 1.2 Dimensions Inground 15 SQUARE SHAPE 216x216 ROUND SHAPE Ø216 Ø164 Ø187 Ø207 Inground 24 SQUARE SHAPE 260x260 ROUND SHAPE Ø260 Ø218 Ø249 INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 5: Safety And Operation
The manufacturer shall not be liable for any modifications of the ● product of incorrect installation of the product. Never install the luminaire on rain, fog or high humidity. ● INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 6: Installation
30 min. If it doesn’t work study a further drainage system. Aluminum sleeve must be installed on drainage layers, surrounding ● concrete layers and leveled with external finish. INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 7 ● sleeve must not be installed above the surrounding floor. Fig. 3 Fig. 3 ALLOWED Edges of the plastic ● sleeve must not be installed under the surrounding floor. INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 8 IP juction (more about IP connection in 3.3 IP BOX connection). Put the luminaire into the ● plastic sleeve. INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 9 Fig. 9 Fig. 9 Tighten the screws Put on and tighten the ● screws which you removed in step 4 (Fig.4). Check if the screws are ● tight properly! INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 10 3. INSTALLATION ALLOWED MAX. 500kg ALLOWED ALLOWED INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 11 3. INSTALLATION 3.2 Connection 3.2.1 Wiring - ON/OFF option Wire L (Live) – black/brown Wire N (Neutral) – blue Wire PE (Earth) – yellow/green INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 12 3.2.2 Wiring - DALI option DALI DALI Wire L (Live) – black/brown Wire N (Neutral) – blue Wire PE (Earth) – yellow/green Wire DA1 (Dali) – white Wire DA2 (Dali) - white INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 13 GEL for sealing junction boxes containing electrical connections. If the IP rating of the connection is not observed, the complaint will not be accepted! For example: https://www.etelec.com/prodotto/mpgel/ Video tutorial: https://www.youtube.com/watch?v=tj6ksKdzuE0 INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 14: Connection Diagrams
4. CONNECTION DIAGRAMS 4.1 ON/OFF option 230V 3 x 1,5 mm* Description: *Must be specified by the electrical designer. - Luminaire - IP Junction box INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 15 4. CONNECTION DIAGRAMS 4.2 DALI option 230V DALI 5 x 1,5 mm* Description: *Must be specified by the electrical designer. - Luminaire - IP Junction box INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 16: Care And Maintenance
We also recommend to check the fitting each time the lamp is replaced or at least once a year or within the prescribed maintenance schedule period depending on the type of installation. INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 17: Technical Specification
Housing: die cast aluminium Cover: clear hardened glass+ stain. steel face ring Dimensions: See dimensional drawing Enviroment: IP67 Weight: INGROUND 15 WHITE: 2,8 kg INGROUND 24 WHITE: 4,9 kg Accesories: See website INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...
Page 18: Warranty Statement
7. WARRANTY STATEMENT Precilum provides a product warranty for a period of five (5) years from date of purchase. Please refer www.precillum.com for all warranty terms and conditions. INGROUND 15 WHITE + INGROUND 24 WHITE WWW.PRECILUM.COM INSTRUCTIONS MANUAL v1.1...

This manual is also suitable for:

Inground 24
