Husky HPRO72MWC20BLK Use And Care Manual page 35

8

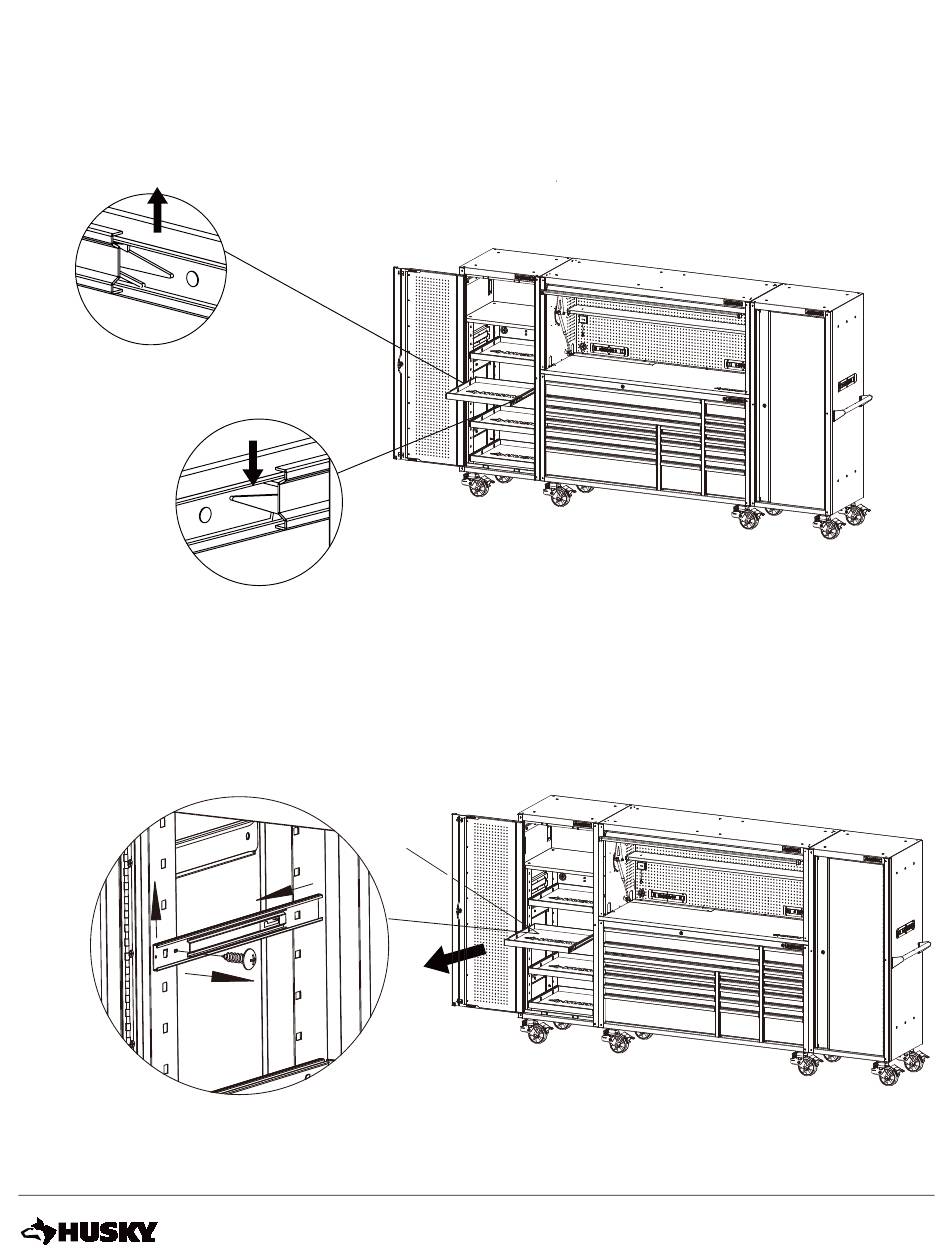

Adjustable Height Sliding Trays
To adjust the height of the sliding trays:
□
Remove by fully extending the empty tray.
□
Push up on one slide release lever while pulling down on the other release lever.
□
Gently pull the tray outward until it releases from the outer slides.
Drawer slide release lever
□
Remove the Phillips head shipping screw at the front of the outer slide. This screw can be discarded as it's not needed
for the tray operation.
□
Push up at the front of the slide and then pull straight out to remove the outer slide from the Locker side wall. Repeat
this process for the other side.
Step 2
Tray
Step 3
Step 1
12
