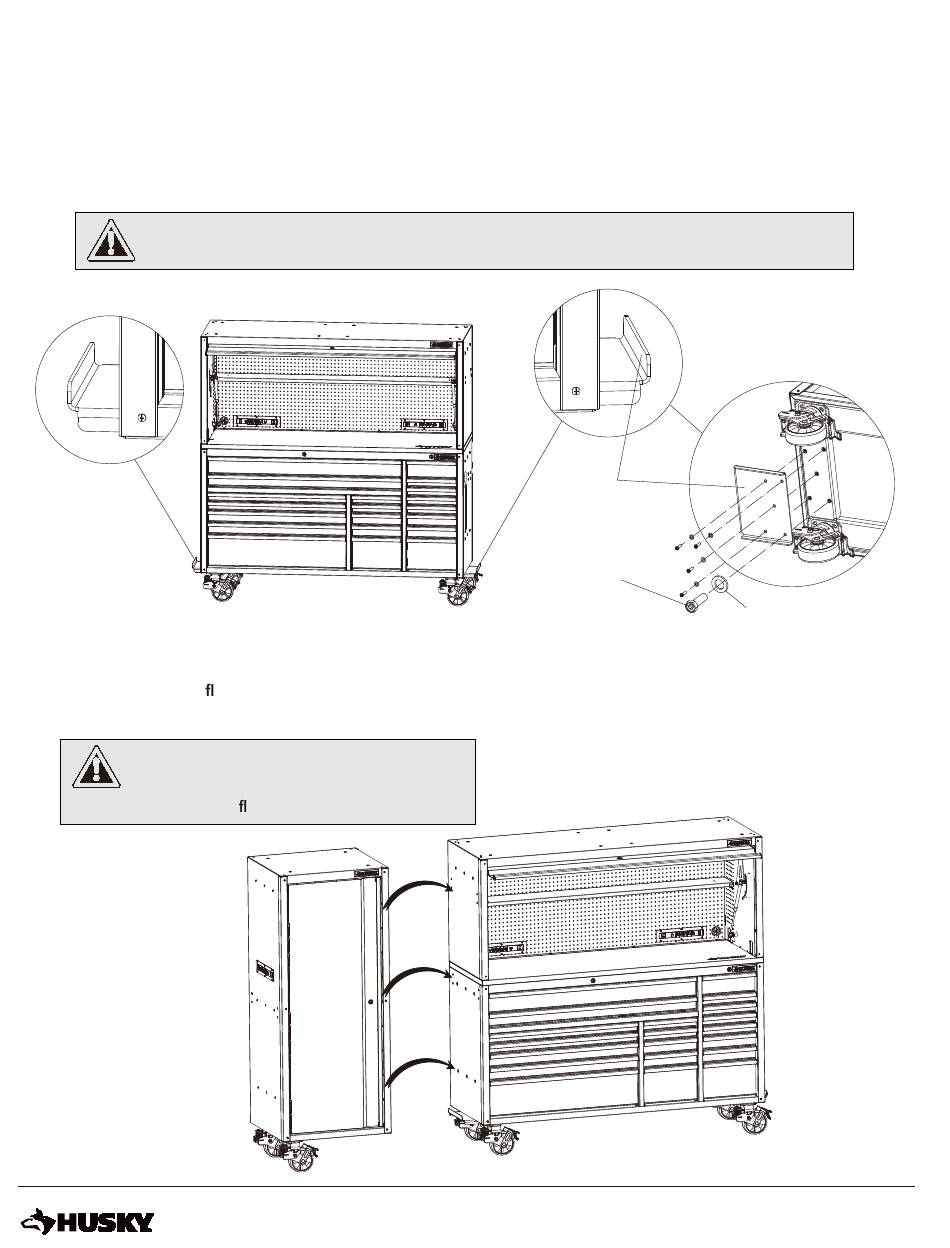

Attach Locker Support Base Plate
□
Attach the Support Base Plate (CC) to the bottom of the Workbench by inserting 5 M8 (AA) and washers (BB) through
the Base Plate (CC). Use the Hex Key (HH) to tighten the bolts to the bottom frame .
Note: If assembling Locker (A) to the left side of the Workbench,then Base Supported will mount to the left side.
If assembling Locker (A) to the right side of the Workbench,then Base Supported will mount to the right side.
Do not turn over the 72 in. 20-Dr. Workbench for the installation of the Support Base Plate.
CAUTION:
□
Move and align the Workbench adjacent to the bottom of the Side Locker (A) and lock ALL wheels of the Workbench.
□
With 2 or more people, gently lift up the Side Locker (A) to fully seat on the Support Base Plate (CC) to maintain balance.
Then bring the units ush together ensuring proper alignment of the bolt attachment holes. Once aligned, lock the 2 Swivel
Casters (B) on the Side Locker to prevent from moving.
Do not push the side locker at this time
CAUTION:
to prevent tipping. Lock the caster wheels on the
Workbench and Locker to prevent moving. Perform
this step on even oors to ensure alignment.
