THD.com #1005 010 509/507
Model # HOLT5201B11
USE AND CARE GUIDE

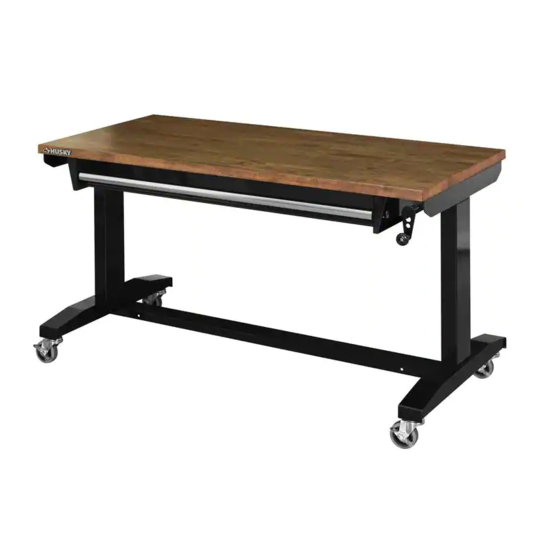

HUSKY 52 IN. ADJUSTABLE HEIGHT WORK TABLE WITH 1 DRAWER
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
THANK YOU !
We appreciate the trust and confidence you have placed in Husky through the purchase of this work table. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Husky!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Husky HOLT5201B11
Summary of Contents for Husky HOLT5201B11
- Page 1 THANK YOU ! We appreciate the trust and confidence you have placed in Husky through the purchase of this work table. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Assembly ............... 2 Safety Information ............Operation ..............2 Warranty ................ Care and Cleaning ........... 3 Pre-Assembly ............Service Parts ..............4 .............. Tools Required 4 ............Hardware Included 4 ..............Specifications 4 .......... -
Page 3: Warranty
The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product. Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com. HUSKYTOOLS.COM 3 ... -
Page 4: Pre-Assembly
Pre-Assembly TOOLS REQUIRED Phillips Safety 10 mm 13 mm goggles Wrench Wrench screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Service Part Description Quantity Screw M6 x 15L Bolt M8 x 15L Washer 5/8in. Wrench SPECIFICATIONS Maximum capacity (drawer) 35 lbs Maximum capacity 300 lbs... -
Page 5: Package Contents
Quantity Part Description Quantity Wood top Support rail Leg (Right) Caster Crank handle Drawer Slide (pair) Leveling feet Drawer Leg (Left) Drawer side panel Top rail Back panel Rotating rod Front panel HUSKYTOOLS.COM 5 Please contact 1-888-HD-HUSKY for further assistance. -
Page 6: Assembly
(E). Determine the front and back of the top before starting. The front of the wood top (A) has the Husky badge on the edge. Attach the right leg (B) to the wood top (A) as shown using four M6x15L screws (AA). - Page 7 Note: Leveling feet have been pre-assembled on the leg. Caster installation 11. Attach the back panel (M) to the drawer side panels (L) by using two screws (AA) for each side. HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance.
-
Page 8: Operation
Assembly (continued) 12. Attach the front panel (N) to the drawer side panels (L) by using one Remove the drawers using the steps below screw (AA) for each side. □ Fully extend and empty the drawer. □ Depending on the slide, either lift or lower the release lever on both sides so the slides can ride over the stops. -
Page 9: Care And Cleaning
Windex . □ Do not allow chemicals, water, or other substances to remain on the wood top for extended periods of time to reduce the risk of damage to the wood. HUSKYTOOLS.COM 9 Please contact 1-888-HD-HUSKY for further assistance. -
Page 10: Service Parts
Service Parts Part Part no. Description D61002 Wood top D460031 Leg (Right) DTC370011 Crank handle K3111002 Leveling feet D460041 Leg (Left) D590071 Top rail C5015011900 Rotating rod D590041 Support rail K0323006 Caster D35001 Drawer Slide (pair) 10 ... - Page 11 Questions, problems, missing parts? Before returning to the store, call Husky Customer Service 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-888-HD-HUSKY HUSKYTOOLS.COM Retain this manual for future use.
