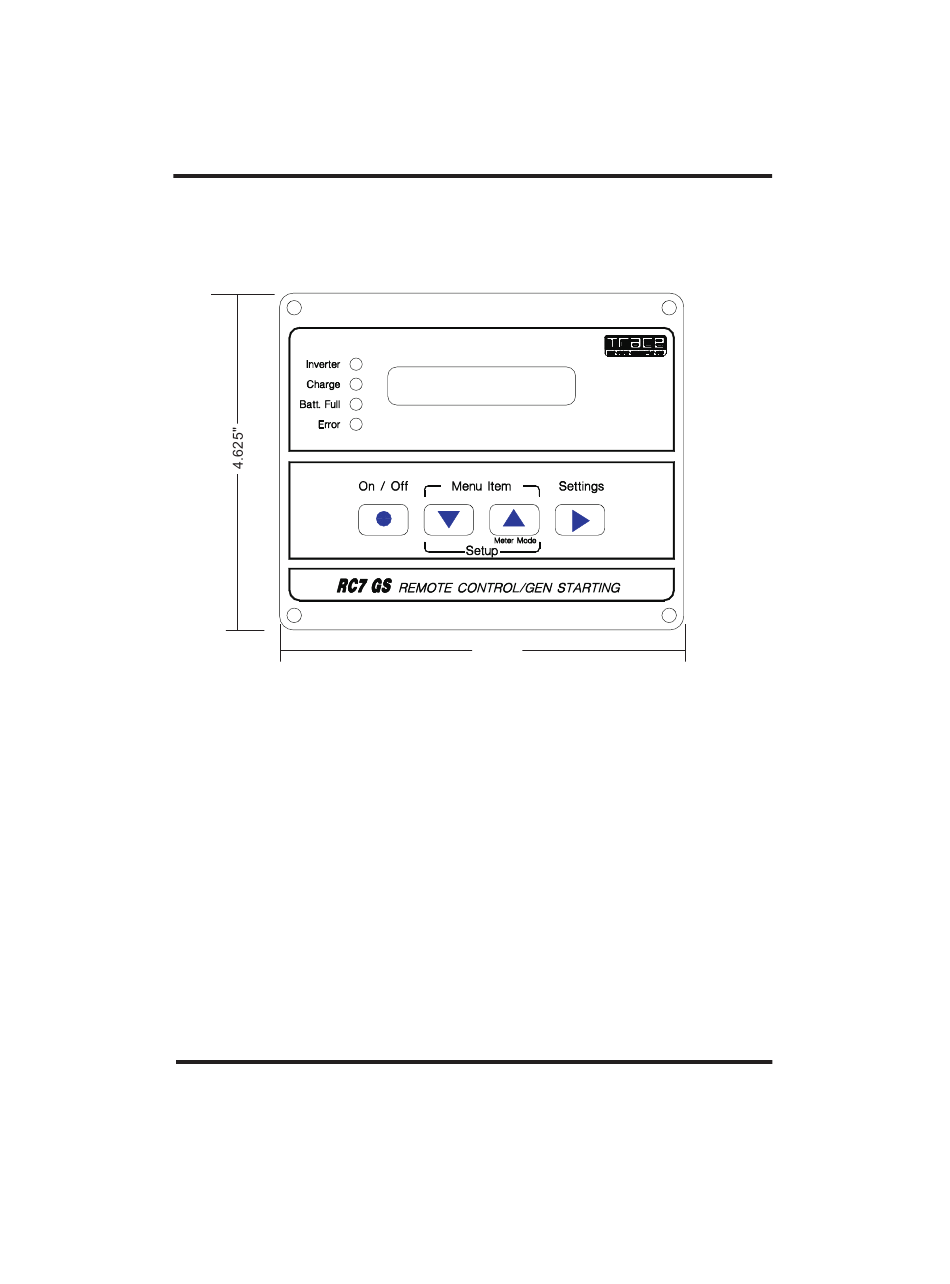

RC7GS Setup Menu

The RC7 and RC7GS remote controls share the Setup Menu items described previously.
The RC7GS (Generator Start) features several additional Setup Menu selections related to
automatic generator starting, stopping, and quiet times.
Install the RC7GS as described earlier. Be sure the inverter/charger is disconnected from
the AC power source and the On/Off switch on the inverter is in the Off position. Plug-in the
RC7GS and turn the On/Off switch on the face of the inverter to the On position.
The LCD screen will first display the software version number (version 1.10 or better
required for Genstart functions), recognize the inverter software (also version 1.10 or better
required), and then momentarily display a reminder to set the clock: "
Auto Genset start and stop
Connect the inverter to an AC source and proceed to configure the installation.

Set Clock

Many of the Genstart functions are time-of-day based, so the first task is to set the clock.
The clock uses 24-hour 'military' time. The range is from 00:00 to 23:59.
!
Press and hold both Setup buttons until the screen clears and the RC7GS emits a
,
beep tone then scroll down through the Setup menu until the Set Clock menu item is
displayed:
!
A flashing cursor will appear below and behind one of the hour (H) characters or one
of the minute (M) characters on the display. Every eight (8) seconds the cursor will
jump from beneath an hour digit to a minute digit or vice-versa unless the Settings key
is pressed.
©
Copyright Trace Engineering Co. Inc.
t h
5916 195 Street, NE
Arlington, WA 98223 USA
System Status:
Waiting for AC
5.550"
." The message " Waiting for AC
Tel (360) 435-8826
Fax (360)435-2229
www.traceengineering.com
Set time to enable
" will then be displayed.
