Summary of Contents for INIM Electronics Air2-MC300
- Page 1 E E N 50131-1 EN 50131-2-6 EN 50131-5-3 EN 50130-4 EN 50130-5 INCERT CEB T031...
-
Page 2: Table Of Contents
Table of contents 1. Air2 system description 2. Description Air2-MC300 2.1 Description of parts 2.2 Operating distances of the magnet 2.3 Technical specifications Air2-MC300 3. Installation of Air2-MC300 3.1 Enrolling a wireless device 3.2 Battery replacement 4. Programming wireless terminal 4.1 Wireless terminal parameters... -
Page 3: Air2 System Description

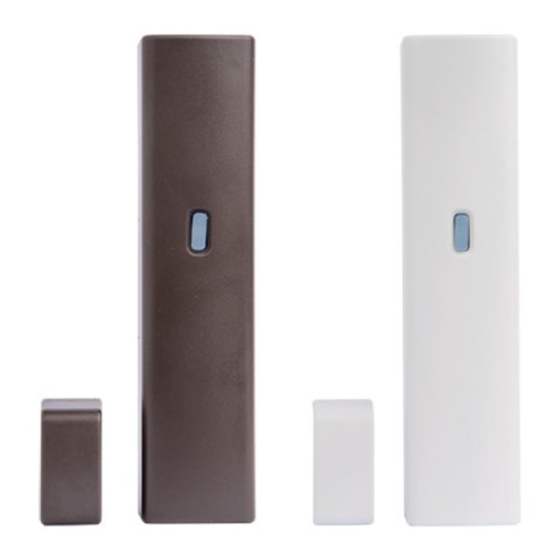

Air2-Pebble 4 button remote-control key Air2-MC200 magnetic contact with shock and tilt sensor in white or brown Air2-MC300 magnetic contact with two I/O terminals, in white or brown Air2-FD100 smoke detector Air2-Aria/W keypad with graphic display ... -
Page 4: Description Air2-Mc300
2. Description Air2-MC300 2. Description Air2-MC300 The magnetic contact Air2-MC300 is supplied with a magnet, which can be fixed (by means of two screws) in two positions set at 90° one from the other. The magnet is equipped with three different bases for 3 different installation heights (13.5, 20 and 26.5 mm), depending on the installation requirements. -
Page 5: Description Of Parts
The following tables show the operating distances in millimeters of the magnet in accordance with the base of the magnet, the contact side and the axes, as shown in the figure. The values were obtained by positioning the magnet in contact with the device, except for the y- axis. Air2-MC300 | © 2020 Inim Electronics S.r.l. -
Page 6: Technical Specifications Air2-Mc300
+/- Long side Short side Axis Near Withdrawn Near Withdrawn x +/- z +/- 2.3 Technical specifications Air2-MC300 Battery Alkaline LR6 AA 1.5V type 4 years estimated life Less than 1.15V “Low battery” fault voltage Current draw 30µA during standby... - Page 7 2.3 Technical specifications Air2-MC300 Magnet dimensions 26x13 mm W x D 13.5 mm 20 mm 26.5 mm height, depending on the base used White, Brown Colours Air2-MC300 | © 2020 Inim Electronics S.r.l.
-
Page 8: Installation Of Air2-Mc300
3. Installation of Air2-MC300 3. Installation of Air2-MC300 1. Choose a suitable mounting placement. Ferromagnetic materials which are located in the vicinity of the mounting position can influence the magnetic field and can result in the reduced operating capacity of the device. -
Page 9: Enrolling A Wireless Device
4. Start the learning phase from the control panel. 5. Press the ENROLL button on the wireless device. 6. If you are enrolling an output device that is connected to an output terminal of Air2-MC300 it is neces- sary to enable the “Broadcast RF” zone option. -
Page 10: Battery Replacement
3. Installation of Air2-MC300 3.2 Battery replacement When changing the battery, it is advisable to press the ENROLL button in order to be sure that the device is synchronized with the wireless transceiver. Installation and programming manual- 100-DRAFT... -
Page 11: Programming Wireless Terminal
Valid for terminals T1 and T2 configured as outputs. Broadcast RF 4.2 Real-time For each configured device the software provides a direct software-to-device connection which allows visu- alization of the real-time values of the following features of the wireless sounder: Air2-MC300 | © 2020 Inim Electronics S.r.l. - Page 12 4. Programming wireless terminal The value read by each detector of the device is displayed on a bar which indicates the alarm threshold by means of a colour change from green to red. Reading level The series of notches represent the reception level of the wireless signal of the device as received by the trans- Signal recep- ceiver Air2-BS200.
-
Page 13: General Information
Manual code: DCMIINE0A2MC3008E Revision: 100-DRAFT Copyright: The information contained in this document is the sole property of Inim Electronics S.r.l.. Copy- ing, reprinting or modification of this document, in part or as a whole, is not permitted without prior autho- rization in writing from Inim Electronics S.r.l.. -
Page 14: Documents For The Users
5. General information 5.5 Documents for the users Declarations of Performance, Declarations of Conformity and Certificates concerning to Inim Electronics S.r.l. products may be downloaded free of charge from the web address www.inim.biz, getting access to Extended Access and then selecting "Certifications" or requested to the e-mail address info@inim.biz or requested by ordinary mail to the address shown in this document. - Page 15 5.6 WEEE Air2-MC300 | © 2020 Inim Electronics S.r.l.
- Page 16 Via dei Lavoratori 10, Loc. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINE0A2MC3008E-100-20200525-DRAFT...
