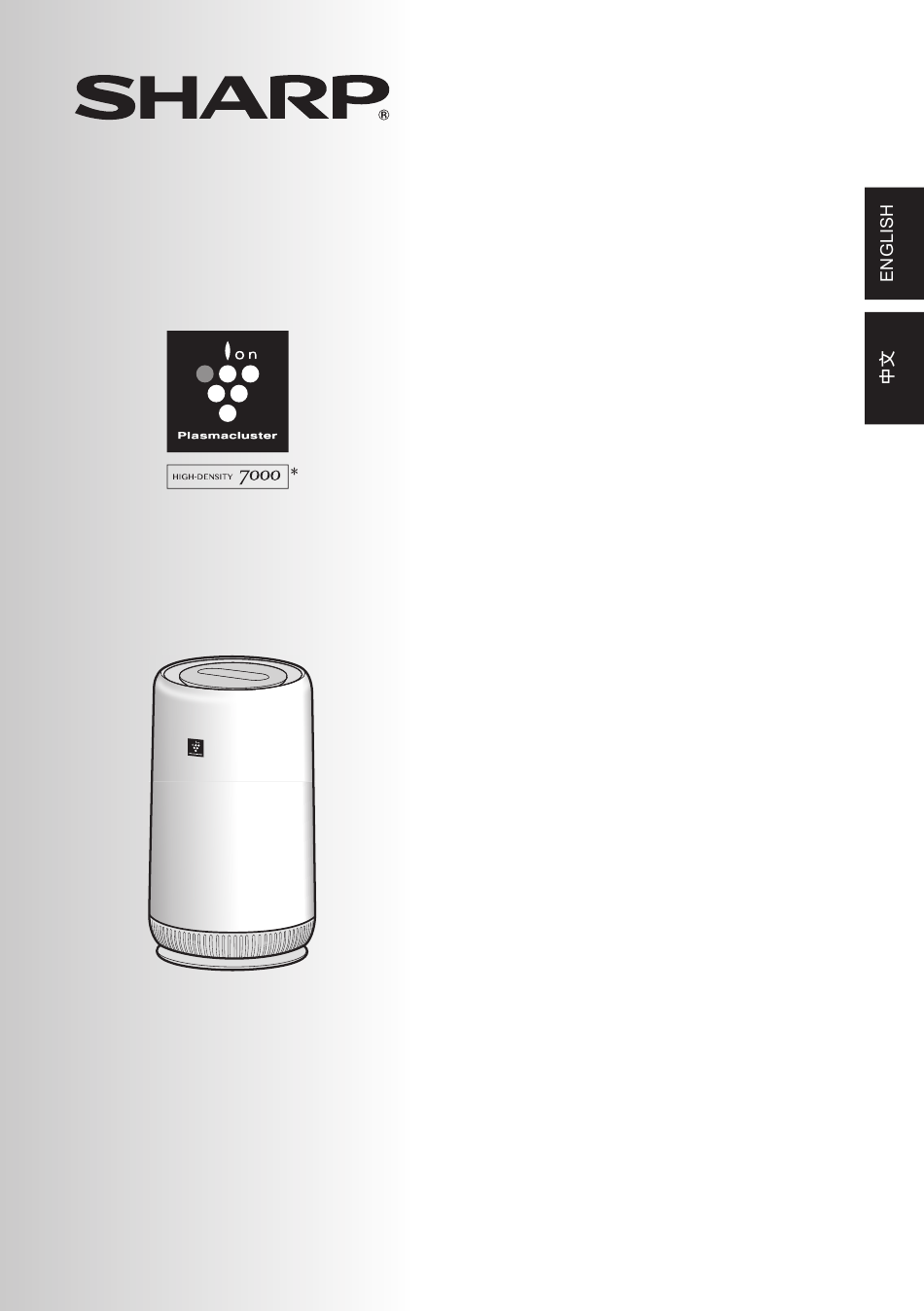

OPERATION MANUAL 空氣清新機 使用說明書 “Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation. * The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm , which is measured around the center of a room applicable floor area (at 1.2 m height above the floor) when...
ENGLISH Thank you for purchasing this SHARP Air Purifier. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference. CONTENTS IMPORTANT SAFETY INSTRUCTIONS ......... 1 PART NAMES .................. 4 FILTER INSTALLATION ..............
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Sharp authorized Service Center or similarly qualified persons in order to avoid a hazard. Contact the nearest Service Center for any problems, adjustments, or repairs.
Page 4
• Do not remove the AC adapter when your hands are wet. • Do not use this product near gas appliances or fireplaces. When the product is operated with gas appliances in same room, Ventilate a room periodically, otherwise it may cause Carbon monoxide poisoning.
Page 5
• Clean the exterior with a soft cloth only. Do not use volatile fluids or detergents. The product surface may be damaged or cracked with Benzine paint thinner, alcohol or polishing powder. • Do not scrub the Pre-Filter hard during its maintenance. •...
PART NAMES NOTE • When using for the first time, please remove the plastic bag from the Two in one dust collection and deodorizing Filter. (Page 6) BACK SIDE Operation Panel Bottom Cover Night Light Power Code Air Outlet Power Lamp (Blue) •...
Page 7
OPERATION PANEL Power ON/OFF and Mode Button Night Light Button Plasmacluster Ion Lamp (Blue) Mode Lamps (White) POWER ON/OFF AND SETTING MODE POWER NOTE • In LOW mode, the lamps on the Operation Panel lights up dimly. NIGHT LIGHT ON/OFF The rear lights up.
Always be sure to remove FILTER INSTALLATION the AC Adapter from the wall outlet. Turn the product upside Remove the Plastic Bag. down. Attach the Two in one dust collection and deodorizing Filter. Remove the Bottom Cover. Attach the Pre-Filter. Click Remove the Pre-Filter ( 1 ) Attach the Bottom Cover.
Always be sure to remove CARE AND MAINTENANCE the AC Adapter from the wall outlet. MAIN BODY When it gets dirty Wipe with a dry, soft cloth. AIR INLET / PRE-FILTER Once a month Remove the dust gently with a cleaning tool such as a vacuum cleaner.
Two in one dust collection and deodorizing Filter Whenever dust accumulates, or when odor emanates from the air outlet. Remove the dust on the filter. NOTE • Do not wash the filter. Do not expose to sunlight. (Otherwise these filter may lose efficacy.) Two in one dust collection and •...
TROUBLESHOOTING Before calling for service, please review the Troubleshooting list below, since the problem may not be the product malfunction. It doesn’t operate. • Check if the AC adapter is correctly connected to the product and the outlet. (It may take some time until the operation starts when after connecting the AC adapter.) Odor and smoke persists.
SPECIFICATIONS Model FU-NC01 Power supply AC adapter Rated input AC 100 - 240 V 50 - 60 Hz Rated outlet DC 24 V 1.5 A Fan Speed Adjustment Fan Speed (m / hour) Rated Power (W) (Value when the Night Light is off.) (20) (8.1)
