Ford Performance M-15200K-CXR Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
PRIOR TO INSTALLATION READ THESE INSTRUCTION COMPLETELY
For questions, Call the FORD PERFORMANCE Techline 1-800-367-3788
Please visit

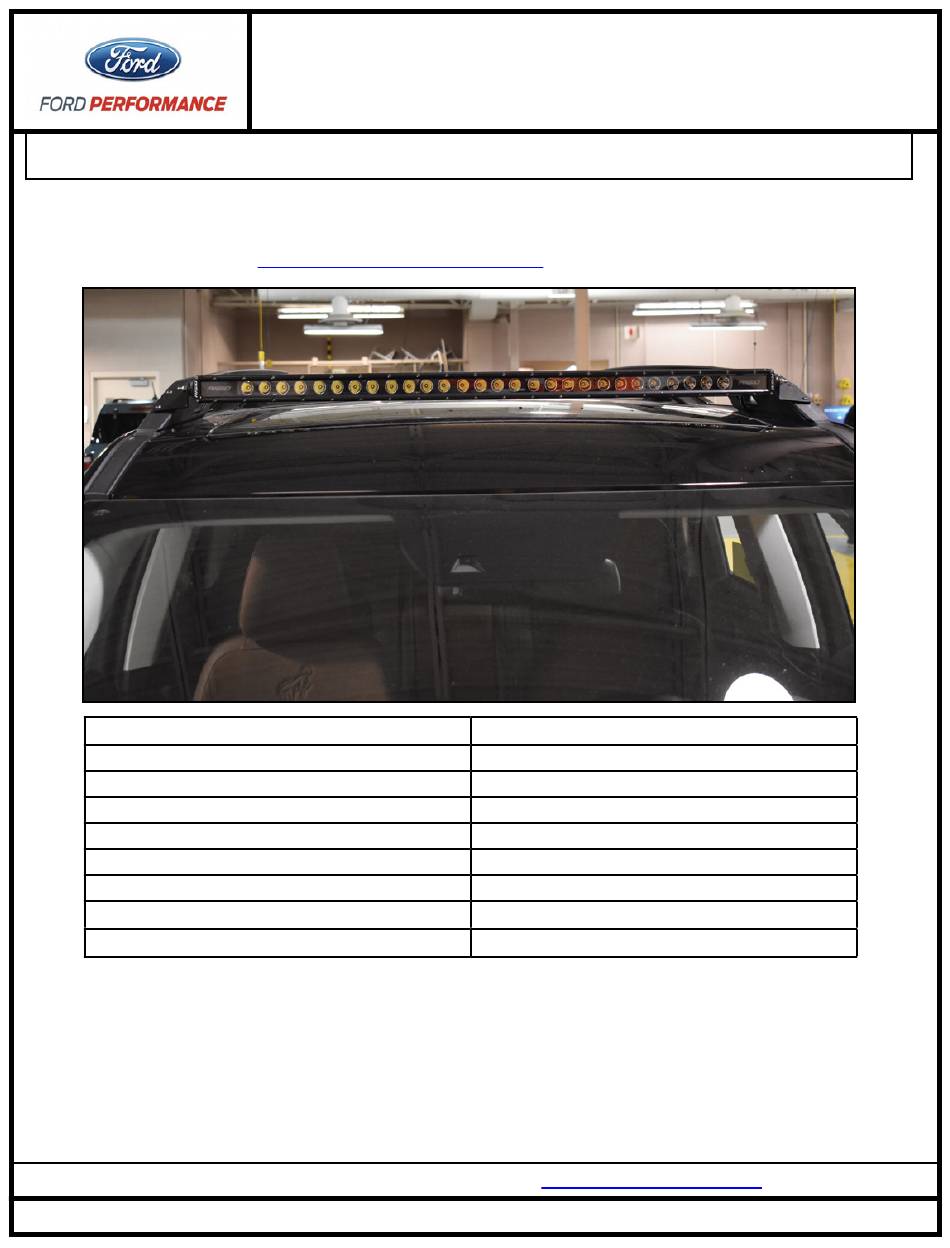

Kit Contents
SR-series 40'' straight light bar
SR 10'' Lens Covers
Rocker switch, cherry, 2-position
Switch wiring adapter kit
Mounting fasteners/tools kit
Roof rack bracket, RH
Roof rack bracket, LH
Rigid hardware kit
Ford Factory Shop Manual purchase options
Techline 1-800-367-3788
M-15200K-CXR
2021 Bronco Sport Off-Road
Roof-Mounted LED Light Bar
FORD PERFORMANCE PARTS
https://www.performanceparts.ford.com
Page 1 of 37
for warranty information
Quantity
1
4
1
1
1
1
1
1
www.motorcraftservice.com
1668A
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
PLACE COPY HERE
PLACE COPY HERE
IS M-15200K-CXR 022321
PLACE COPY HERE
