NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
PRIOR TO INSTALLATION READ THESE INSTRUCTION COMPLETELY
For questions, Call the FORD PERFORMANCE Techline 1-800-367-3788
Please visit

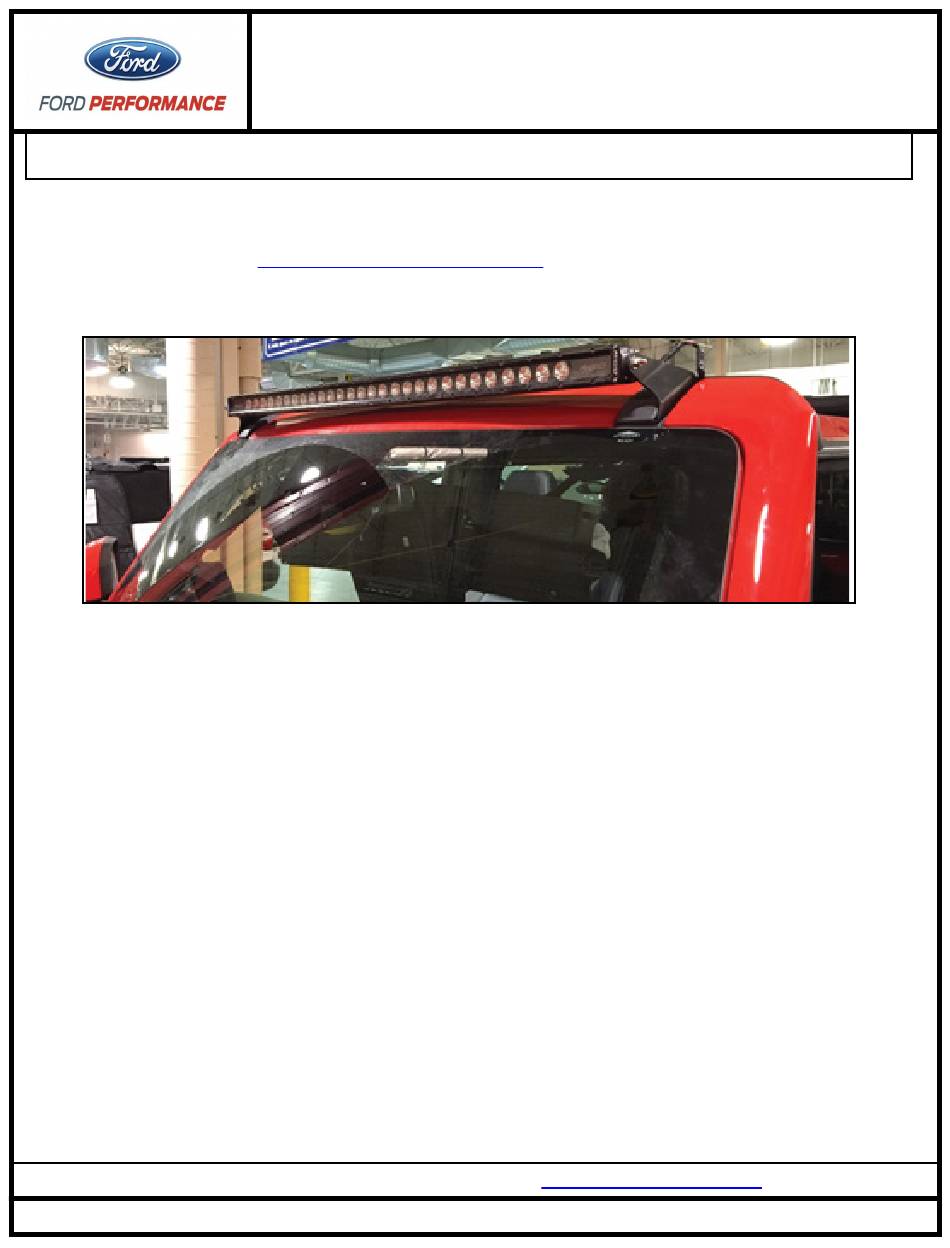

Roof Line Mounted Light Bar (Vehicles not Equipped with Roof Rails)
Ford Factory Shop Manual purchase options
Techline 1-800-367-3788

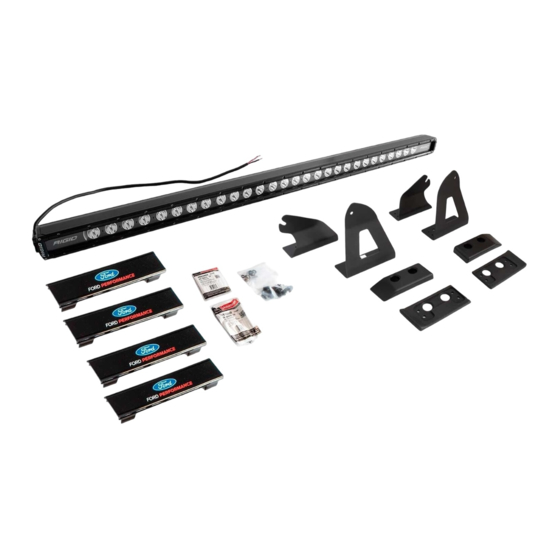

M-15200K-BRL / BRRL
2021 Bronco Off-Road Roof-Mounted
LED Light Bars
FORD PERFORMANCE PARTS
https://www.performanceparts.ford.com
Page 1 of 17
for warranty information
www.motorcraftservice.com
IS M-15200K-BRL 010422
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
PLACE COPY HERE
PLACE COPY HERE
PLACE COPY HERE
