MEMOLUB HPS Instructions

MEMOLUB HPS
Remote installation avoids dangerous or difficult access points, and maintenance personnel can work
swiftly in safety. Machine stoppage for lubrication can be avoided and production efficiency can be
increased.
Cartridges are carefully filled at the factory using a precise centrifuging process that eliminates air
pockets and contamination. Cartridge change-out normally takes less than 60 seconds!
MEMOLUB® is a valuable alternative to time-consuming and costly manual lubrication.
The MEMO is a unique system for adjusting daily lubricant
output. Programmed the first time, it is permanently fitted
onto the lube point. Maintenance personnel do not need to
remember which setting is necessary and organization is thus
simplified.
Specifications & Operating Characteristics:
MEMOLUB HPS Characteristics:
Capacity :
Battery Pack :
Settings :
Temp. Exposition : -40°C to +50°C
Installation thread : ¼ Inch R
Lubrication Systems

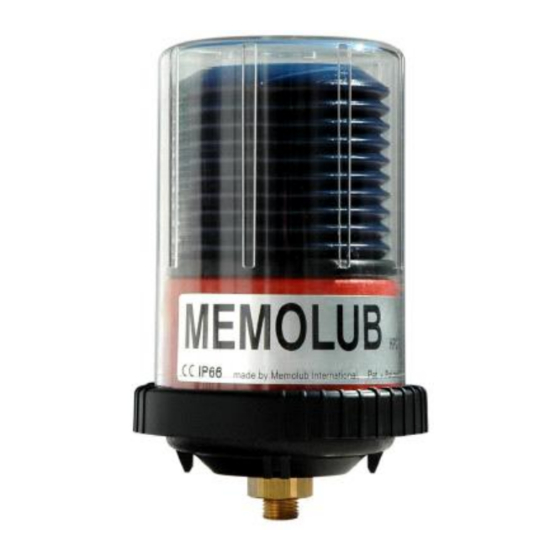

MEMOLUB® hps is an autonomous single / multi
point lubrication system available in three sizes
(Standard : 120cc, Mega 240cc and Giga 480cc). Its
high lubricant ejection pressure of 25 bar opens a
wide range of applications not possible with
conventional systems. MEMOLUB® HPS can be used
remotely up to 8 meters from the lubrication point or
as a central lubrication system using progressive
distributor valves. Combined with the SPLITTER
MEMO, it makes it an economic way to lubricate 2
lube points.
Standard 120cc
Mega 240cc
Giga 480cc
4,5V Alkaline
via MEMO
Dimensions :
Min Constant Temp. : Standard : -10°C
lubricants :
MEMOLUB® HPS
Standard 115 x 101
Mega 147 x 101
Giga 228 x 101
Mega : -5°C
Giga : 0°C
Oil and greases up to
Grade NLGI 2.5
