- Page 1 EDFMT391769A 201802 Engineering Data FXFSQ-AVM 50 / 60 Hz...
-
Page 3: Table Of Contents

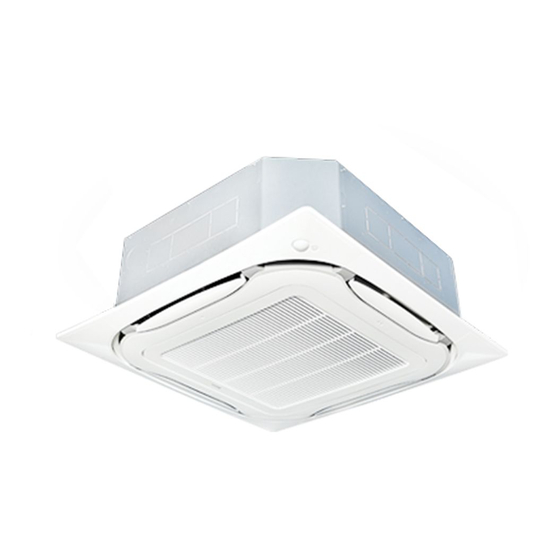

FXFSQ-AVM EDFMT391769A FXFSQ-AVM Ceiling Mounted Cassette Type (Round Flow with Sensing) 50 / 60 Hz 1. Lineup ......................2 2. Specifications .....................3 3. Dimensions ....................8 3.1 Standard Panel with Sensing Sensor ..........8 3.2 Standard Panel ................11 3.3 Designer Panel ................14 3.4 Auto Grille Panel ................17 4. Piping Diagrams ..................20 5. Wiring Diagrams ..................21 6. Electric Characteristics ................22... -
Page 4: Lineup
FXFSQ-AVM EDFMT391769A 1. Lineup 2.8 kW 3.6 kW 4.5 kW 5.6 kW 7.1 kW 9.0 kW 11.2 kW 14.0 kW 16.0 kW Capacity range 1 HP 1.25 HP 1.6 HP 2 HP 2.5 HP 3.2 HP 4 HP 5 HP 6 HP Capacity index 31.25 62.5 FXFSQ 25AVM 32AVM 40AVM 50AVM 63AVM... -
Page 5: Specifications
FXFSQ-AVM EDFMT391769A 2. Specifications Model FXFSQ25AVM FXFSQ32AVM Power supply 1 phase, 220-240/220-230 V, 50/60 Hz 1 phase, 220-240/220-230 V, 50/60 Hz kcal/h 2,400 3,100 Btu/h 9,600 12,300 1 3 Cooling capacity kcal/h 2,800 3,400 Btu/h 10,900 13,600 2 3 Heating capacity 50 Hz 0.028 0.028 Cooling 60 Hz 0.028 0.028 Power input 50 Hz 0.026 0.026 Heating 60 Hz 0.026 0.026... - Page 6 FXFSQ-AVM EDFMT391769A Model FXFSQ40AVM FXFSQ50AVM Power supply 1 phase, 220-240/220-230 V, 50/60 Hz 1 phase, 220-240/220-230 V, 50/60 Hz kcal/h 3,900 4,800 Btu/h 15,400 19,100 1 3 Cooling capacity kcal/h 4,300 5,400 Btu/h 17,100 21,500 2 3 Heating capacity 50 Hz 0.035 0.038 Cooling 60 Hz 0.035 0.038 Power input 50 Hz 0.034 0.038 Heating 60 Hz 0.034 0.038 Casing / Colour...
- Page 7 FXFSQ-AVM EDFMT391769A Model FXFSQ63AVM FXFSQ80AVM Power supply 1 phase, 220-240/220-230 V, 50/60 Hz 1 phase, 220-240/220-230 V, 50/60 Hz kcal/h 6,100 7,700 Btu/h 24,200 30,700 1 3 Cooling capacity kcal/h 6,900 8,600 Btu/h 27,300 34,100 2 3 Heating capacity 10.0 50 Hz 0.061 0.092 Cooling 60 Hz 0.061 0.092 Power input 50 Hz 0.060 0.092 Heating 60 Hz 0.060 0.092...
- Page 8 FXFSQ-AVM EDFMT391769A Model FXFSQ100AVM FXFSQ125AVM Power supply 1 phase, 220-240/220-230 V, 50/60 Hz 1 phase, 220-240/220-230 V, 50/60 Hz kcal/h 9,600 12,000 Btu/h 38,200 47,800 1 3 Cooling capacity 11.2 14.0 kcal/h 10,800 13,800 Btu/h 42,700 54,600 2 3 Heating capacity 12.5 16.0 50 Hz 0.164 0.170 Cooling 60 Hz 0.164 0.170 Power input 50 Hz 0.144 0.159 Heating 60 Hz 0.144...
- Page 9 FXFSQ-AVM EDFMT391769A Model FXFSQ140AVM Power supply 1 phase, 220-240/220-230 V, 50/60 Hz kcal/h 13,800 Btu/h 54,600 1 3 Cooling capacity 16.0 kcal/h 13,800 Btu/h 54,600 2 3 Heating capacity 16.0 50 Hz 0.194 Cooling 60 Hz 0.194 Power input 50 Hz 0.183 Heating 60 Hz 0.183 Casing / Colour Galvanised steel plate Dimensions: (H×W×D) 298×840×840 Model QTS48G15M Type Turbo fan Motor output ×...
-
Page 10: Dimensions
FXFSQ-AVM EDFMT391769A 3. Dimensions Standard Panel with Sensing Sensor FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM... - Page 11 FXFSQ-AVM EDFMT391769A FXFSQ63AVM / FXFSQ80AVM...
- Page 12 FXFSQ-AVM EDFMT391769A FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM...
-
Page 13: Standard Panel
FXFSQ-AVM EDFMT391769A Standard Panel FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM... - Page 14 FXFSQ-AVM EDFMT391769A FXFSQ63AVM / FXFSQ80AVM...
- Page 15 FXFSQ-AVM EDFMT391769A FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM...
-
Page 16: Designer Panel
FXFSQ-AVM EDFMT391769A Designer Panel FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM... - Page 17 FXFSQ-AVM EDFMT391769A FXFSQ63AVM / FXFSQ80AVM...
- Page 18 FXFSQ-AVM EDFMT391769A FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM...
-
Page 19: Auto Grille Panel
FXFSQ-AVM EDFMT391769A Auto Grille Panel FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM... - Page 20 FXFSQ-AVM EDFMT391769A FXFSQ63AVM / FXFSQ80AVM...
- Page 21 FXFSQ-AVM EDFMT391769A FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM...
-
Page 22: Piping Diagrams
FXFSQ-AVM EDFMT391769A 4. Piping Diagrams FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM / FXFSQ63AVM / FXFSQ80AVM / FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM 4D024460P „ Refrigerant pipe connection port diameters Unit: mm Model Liquid FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM φ12.7 φ6.4 FXFSQ63AVM / FXFSQ80AVM / FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM φ15.9 φ9.5... -
Page 23: Wiring Diagrams
FXFSQ-AVM EDFMT391769A 5. Wiring Diagrams FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM / FXFSQ63AVM / FXFSQ80AVM / FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM... -
Page 24: Electric Characteristics
FXFSQ-AVM EDFMT391769A 6. Electric Characteristics FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM / FXFSQ63AVM / FXFSQ80AVM / FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM C: 3D112911... -
Page 25: Safety Devices Setting
FXFSQ-AVM EDFMT391769A 7. Safety Devices Setting Model FXFSQ25AVM FXFSQ32AVM FXFSQ40AVM Printed circuit board fuse 250 V, 3.15 A 250 V, 3.15 A 250 V, 3.15 A Fan motor thermal protector — — — Drain pump thermal protector °C — — — Model FXFSQ50AVM FXFSQ63AVM FXFSQ80AVM Printed circuit board fuse 250 V, 3.15 A 250 V, 3.15 A 250 V, 3.15 A Fan motor thermal protector — — — Drain pump thermal protector °C — — —... -
Page 26: Capacity Tables
FXFSQ-AVM EDFMT391769A 8. Capacity Tables Cooling Capacity for Te: Auto Indoor air temp. 14°CWB 16°CWB 18°CWB 19°CWB 20°CWB 22°CWB 24°CWB Capacity Model indication 20°CDB 23°CDB 26°CDB 27°CDB 28°CDB 30°CDB 32°CDB FXFSQ25AVM 2.9 2.9 FXFSQ32AVM 2.9 FXFSQ40AVM FXFSQ50AVM 4.9 4.9 5.9 FXFSQ63AVM FXFSQ80AVM 7.9... -
Page 27: Cooling Capacity For Te: 9°C
FXFSQ-AVM EDFMT391769A Cooling Capacity for Te: 9°C For VRV indoor units only at Te: 9°C / mixed combination of VRV and residential indoor units Indoor air temp. 14°CWB 16°CWB 18°CWB 19°CWB 20°CWB 22°CWB 24°CWB Capacity Model indication 20°CDB 23°CDB 26°CDB 27°CDB 28°CDB 30°CDB 32°CDB FXFSQ25AVM FXFSQ32AVM 2.9 FXFSQ40AVM 3.9 FXFSQ50AVM FXFSQ63AVM 5.9 FXFSQ80AVM 5.9 FXFSQ100AVM 8.9 9.2 9.7 10.3... -
Page 28: Sound Levels
FXFSQ-AVM EDFMT391769A 9. Sound Levels FXFSQ25AVM / FXFSQ32AVM FXFSQ40AVM... - Page 29 FXFSQ-AVM EDFMT391769A FXFSQ50AVM FXFSQ63AVM...
- Page 30 FXFSQ-AVM EDFMT391769A FXFSQ80AVM FXFSQ100AVM...
- Page 31 FXFSQ-AVM EDFMT391769A FXFSQ125AVM FXFSQ140AVM...
-
Page 32: Centre Of Gravity
FXFSQ-AVM EDFMT391769A 10. Centre of Gravity FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM / FXFSQ63AVM / FXFSQ80AVM / FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM Unit: mm 4D052237S... -
Page 33: Accessories
FXFSQ-AVM EDFMT391769A 11. Accessories 11.1 Optional Accessories (for Unit) Model Item FXFSQ25AVM FXFSQ32AVM FXFSQ40AVM FXFSQ50AVM FXFSQ63AVM FXFSQ80AVM Fresh white BYCQ125EEF Standard panel with sensing sensor Black BYCQ125EEK Fresh white BYCQ125EAF Standard panel Black BYCQ125EAK Designer panel Fresh white BYCQ125EAPF (Note 1) Auto grille panel Fresh white BYCQ125EASF (Note 2,3) For usage of 3-, 4-way KDBH551C160 Sealing material of flow... - Page 34 FXFSQ-AVM EDFMT391769A Model Item FXFSQ100AVM FXFSQ125AVM FXFSQ140AVM Fresh white BYCQ125EEF Standard panel with sensing sensor Black BYCQ125EEK Fresh white BYCQ125EAF Standard panel Black BYCQ125EAK Designer panel Fresh white BYCQ125EAPF (Note 1) Auto grille panel Fresh white BYCQ125EASF (Note 2,3) For usage of 3-, 4-way KDBH551C160 Sealing material of flow air discharge outlet For usage of 2-way (Note 4) KDBH552C160 flow Panel spacer KDBP55H160FA Without Chamber KDDP55B160 [Components : KDDP55C160-1, KDDP55B160-2]...
-
Page 35: Optional Accessories (For Controls)
FXFSQ-AVM EDFMT391769A 11.2 Optional Accessories (for Controls) Model Item FXFSQ25AVM FXFSQ32AVM FXFSQ40AVM FXFSQ50AVM FXFSQ63AVM FXFSQ80AVM Cooling Only BRC7M635F(Fresh white) / BRC7M635K (Black) (Note 4) Remote Wireless controller Heat Pump BRC7M634F(Fresh white) / BRC7M634K (Black) (Note 4) Navigation remote controller BRC1E63 (Note 4) (Wired remote controller) Adaptor for wiring (Note 1) KRP1C11A Wiring adaptor for electrical KRP4AA53 appendices (Note 1) Installation box for adaptor printed KRP1H98A (Note 2, 3) circuit board Remote sensor (for indoor KRCS01-5B temperature) External control adaptor for outdoor DTA104A62 unit (Note 1) Adaptor for multi tenant (Note 1) -
Page 36: I Nstallation Manual
FXFSQ-AVM EDFMT391769A 12. Installation Manual 12.1 FXFSQ25AVM / FXFSQ32AVM / FXFSQ40AVM / FXFSQ50AVM / FXFSQ63AVM / FXFSQ80AVM / FXFSQ100AVM / FXFSQ125AVM / FXFSQ140AVM VRV SYSTEM Air Conditioners Installation manual • Consult your local dealer regarding what to do in case of CONTENTS refrigerant leakage. -
Page 37: Before Installation
FXFSQ-AVM EDFMT391769A SPECIAL NOTICE PRODUCT CAUTION • The refrigerant R410A requires that strict precautions be • Do not allow children to climb on the outdoor unit and avoid observed for keeping the system clean, dry and tightly placing objects on the unit. - Page 38 FXFSQ-AVM EDFMT391769A 2-1 ACCESSORIES Table 2 Check if the following accessories are attached to the Remote controller indoor unit. Wired type BRC1E63 Heat pump BRC7M634F/K (2) Metal (3) Washer for Wireless type Name (1) Drain hose (4) Clamp Cooling only...
-
Page 39: Selection Of Installation Location
FXFSQ-AVM EDFMT391769A Items to be checked at delivery • Where there is strength to withstand the mass of the indoor unit. (If the strength is Items to be checked Check column indoor unit may vibrate and get in contact with the ceiling and generate unpleasant chattering noise.) -
Page 40: Preparation Before Installation
FXFSQ-AVM EDFMT391769A CAUTION (4) Use hanging bolts for installation. Investigate if the installation place can withstand the mass • Any vents, light or other appliances which may of the indoor unit and, if necessary, hang the indoor unit disturb the might cause ceiling to become dirty if with bolts after it is reinforced by beams etc. -
Page 41: Installation Of Indoor Unit
FXFSQ-AVM EDFMT391769A CAUTION 5. INSTALLATION OF INDOOR UNIT • Reduce the distance between the unit and ceiling to 35 mm <<It is easy to attach the optional parts (except for or below in order to maintain an overlapping panel margin of decoration panel) before installing the indoor unit. - Page 42 FXFSQ-AVM EDFMT391769A (4) Check the level of the unit. (Refer to Fig. 9) Center of the Center of (5) Remove the washer clamp (7) used for preventing the indoor unit ceiling opening washer for hanger (3) from dropping and tighten the upper...
-
Page 43: Refrigerant Piping Work
FXFSQ-AVM EDFMT391769A Table 3 6. REFRIGERANT PIPING WORK Piping Tightening Dimension for size torque processing flare Flare shape • For the outdoor unit refrigerant piping, refer to the installation (mm) (N·m) A (mm) manual attached to the outdoor unit. • Carry out insulation of both gas and liquid refrigerant piping φ... - Page 44 FXFSQ-AVM EDFMT391769A • Before brazing refrigerant piping, have nitrogen flow Gas side piping insulating method through the refrigerant piping and substitute air with Joint insulating nitrogen (NOTE 2) (Refer to Fig. 13). Then, carry out material (8) brazing (NOTE 3).
-
Page 45: Drain Piping Work
FXFSQ-AVM EDFMT391769A 7. DRAIN PIPING WORK CAUTION • Do not tighten the metal clamp (2) with the torque more (1) Carry out drain piping. than the value. Carry out drain piping so that drainage can ensured. The drain hose (1), the socket or the metal clamp (2) may •... - Page 46 FXFSQ-AVM EDFMT391769A CAUTION • To avoid the attached drain hose (1) getting excessive force, do not bend nor twist it. It may cause water leakage. • In case of centralized drain piping, carry out piping work according to the procedure shown in the fol lowing Fig. 17.
-
Page 47: Electric Wiring Work
FXFSQ-AVM EDFMT391769A 2. Make sure the control box lid is closed before turning 8. ELECTRIC WIRING WORK on the power supply. • Throughout the whole process, carry out the work 8-1 GENERAL INSTRUCTIONS giving caution to the wiring around the control box •... - Page 48 FXFSQ-AVM EDFMT391769A 8-3 SPECIFICATION FOR FIELD SUPPLY FUSES UnitAs Power supply Fan motor AND WIRING Voltage Model Volts MCA MFA Remote controller wiring range Power supply wiring Transmission wiring 0.053 FXFSQ25AV4 Model 0.053 FXFSQ32AV4 Field 0.053 FXFSQ40AV4 fuses Wiring Size...
- Page 49 FXFSQ-AVM EDFMT391769A The lengths of remote controller wiring and transmission (Abnormal heating may occur if the wirings are not tightened securely.) wirings are as follows: Remote controller wiring • Use the required wirings, connect them securely and fix (indoor unit - remote controller).....Max. 500 m these wirings securely so that external force may not apply to Transmission wirings .....Total wiring length 2000 m...
- Page 50 FXFSQ-AVM EDFMT391769A [Remote controller wiring, Transmission wiring] Remote Transmission controller wiring wiring Sheathed part of P1 P2 F1 F2 T1 T2 remote controller wiring, transmission wiring Approx. Forced off Wiring 7 mm penetrating hole Strand the 10 - 15 mm...
- Page 51 FXFSQ-AVM EDFMT391769A < No. 2 system: When carrying out group control or 2 Wiring penetrating hole remote controller control. > Power supply wiring/earth Power supply wiring or remote controller 220-240 V wiring/transmission wiring 50 Hz Sealing material (Small) (13) 220-230 V...
-
Page 52: Mounting Decoration Panel
FXFSQ-AVM EDFMT391769A 9. MOUNTING DECORATION PANEL Terminal block (X1M) <<If test operation is required before mounting the decoration panel, “10. FIELD SETTING AND TEST Terminal for remote OPERATION” can be carried out before “9. MOUNTING controller wiring (P1, P2) DECORATION PANEL”.>>... - Page 53 FXFSQ-AVM EDFMT391769A 10-1 SETTING CEILING HEIGHT Table 7 • Set the SECOND CODE No. according to the ceiling height Hours until FIRST SECOND Contamination Mode No. indication CODE No. CODE No. as shown in the Table 5. Approx. Table 5...
- Page 54 FXFSQ-AVM EDFMT391769A CAUTION After test operation is completed, check the items mentioned in the clause 2 “2. Items to be checked at delivery” on page 4. If the interior work is not completed when the test operation is for protection of the air con ditioner,...
- Page 56 VRV is a trade mark of Daikin Industries, Ltd. VRV Air Conditioning System is the world’s first individual air conditioning system with variable refrigerant flow control and was commercialised by Daikin in 1982. VRV is the trade mark of Daikin Industries, Ltd., which is derived from the technology we call “variable refrigerant volume.”...
