Ada AngleMeter 30 Operating Manual

Application

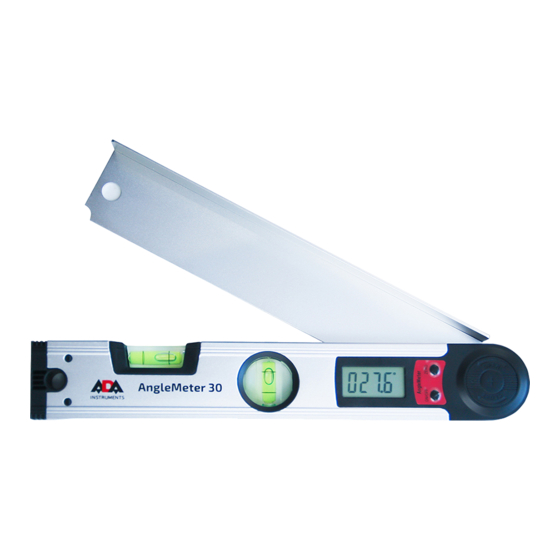

Digital angle meter ADA AngleMeter 30 / 40 has built-in electronic sensor
of slope. Data are displayed on LCD digital display. AngleMeter 30 / 40 has
adjustable aluminium angle for angle measurements.
Put the instrument on even surface. Set the adjustable angle to cover the
housing exactly.
Complete set
Digital angle meter ADA AngleMeter 30 / 40, batteries.
Batteries
Open battery cover and put batteries.
Note! Change the batteries if the symbol of battery is appeared on display!

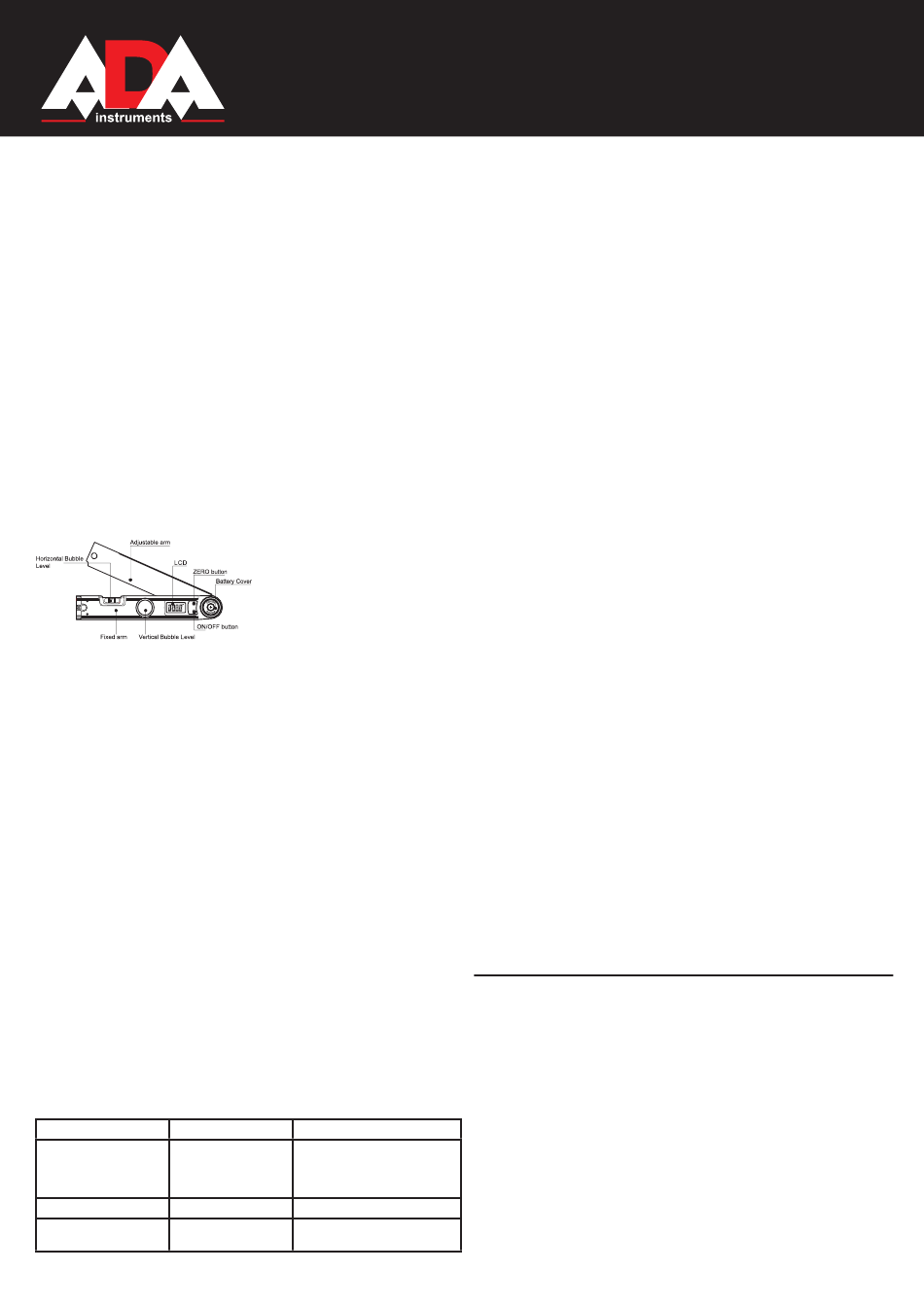

Display and keypad
Spesifications
Measuring range
Resolution
Accuracy
Power supply
Operaring temperature
Working humidity
Operation
On/Off
Move the scale or press button On/Off to switch on the instrument. Press
this button again to switch it Off.
Absolute Angle Measurement
Move adjustable arm to touch the surfaces and measure the desired angle
with the help of inner or outer part of the arm.
Relative Angle Measurement
Adjust the position between 2 arms to the selected angle. Press ZERO to re-
set the device. Move the adjustable arm to the surface of the measurement.
The difference between two angles is shown on the display. Use inner and
outer parts of the arms to take measurements.
Trouble shooting
Problem Possible cause
- display doesn't switch on - no battery,
- fuzzy display - wrong battery instal-
- disordered display lation or
low battery
Flashing digits low battery
Frozen display internal error
Manufacturer: ADAINSTRUMENTS
Operating manual
Digital angle meter
Model: AngleMeter 30 / 40
0.0° ~ 225.0°
0.1°
±0.3°
3V lithium battery
0°C ~ + 40°C
≤85%RH
Solution
- install battery again
- replace battery
replace battery
remove battery and install it again
in one minute
AngleMeter 30 / 40
