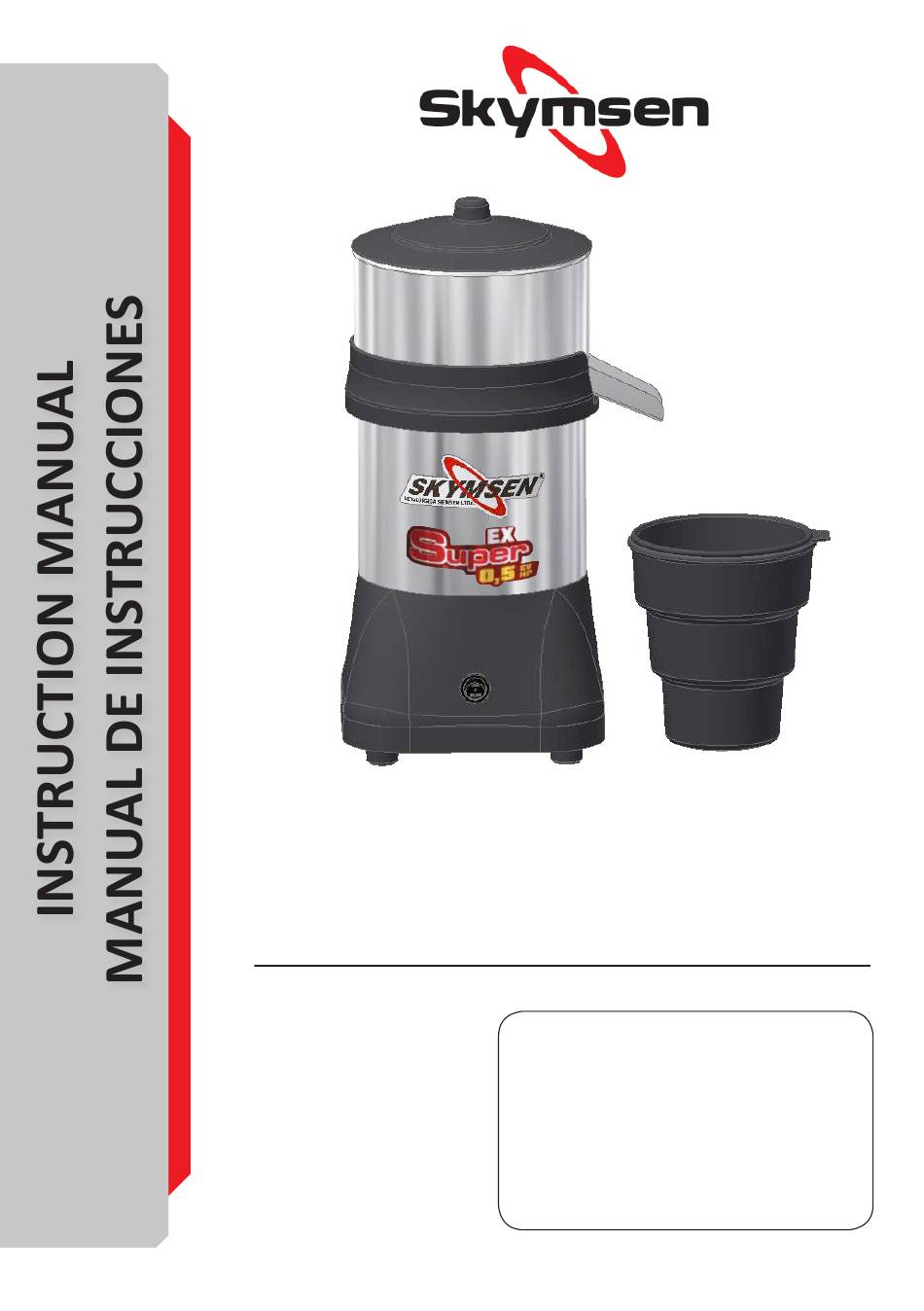

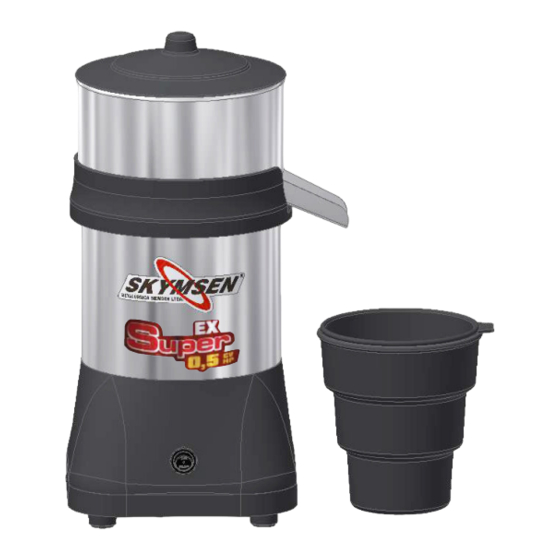

JUICE EXTRACTOR / EXTRACTOR DE JUCOS
MODEL / MODELO
EX SUPER
70275.1 - ENGLISH/ESPAÑOL
Data de Revisão: 02/03/2021
METALÚRGICA SKYMSEN LTDA.
Rodovia Ivo Silveira, nº 9525 - Volta Grande
88355-202 - Brusque - Santa Catarina
Fone: +55 47 3211 6000 - Fax: +55 47 3211 6020
www.skymsen.com - comercial@skymsen.com
THE INFORMATIONS CONTAINED IN THE PRESENT INSTRUCTION MANUAL MAY BE MODIFIED WITHOUT PREVIOUS NOTICE.
