Gojo Purell ES8 Installation And Use Instructions

Dispenser Installation

Open dispenser by pressing release buttons on side of
dispenser and slide the front cover down.
ff installing with tape
5
Clean installation surface with an alcohol pad. Allow
surface to dry for 60 seconds then peel paper oft
installation tape and press firmly on back plate for 10
seconds. For maximum adhesion, wait 24 hours before
loading refill or using dispenser.
9
Remove refill cap and push the new refill into
dispenser until it clicks in place.

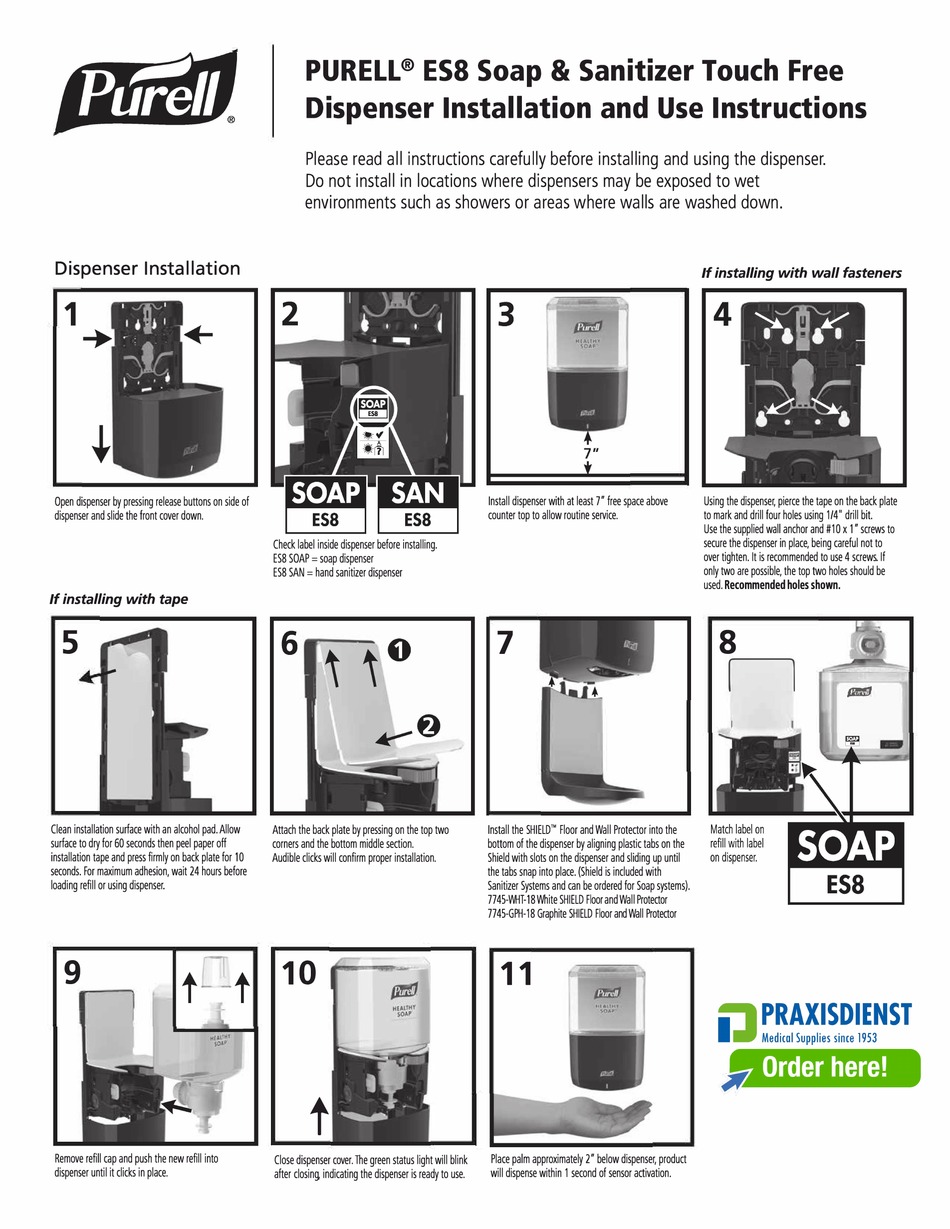

PURELL ES8 Soap & Sanitizer Touch Free
®
Dispenser Installation and Use lnstructions
Please read all instructions carefully before installing and using the dispenser.
Do not install in locations where dispensers may be exposed to wet
environments such as showers or areas where walls are washed down.
Check label inside dispenser before installing.
ES8 SOAP = soap dispenser
ES8 SAN = hand sanitizer dispenser
Altach the back plate by pressing on the top two
corners and the bottom middle section.
Audible clicks will confirm proper installation.
10
t
Close dispenser cover. The green status light will blink
after closing, indicating the dispenser is ready to use.
lnstall dispenser with at least 7" free space above
counter top to allow routine seivice.
7
lnstall the SHIELD" Floor and Wall Protector into the
bottom of the dispenser by aligning plastic tabs on the
Shield with slots on the dispenser and sliding up until
the tabs snap into place. (Shield is included with
Sanitizer Systems and can be ordered for Soap systems).
7745- W HT-18White SHIELD Floor andWall Protector
7745- G PH-18 Graphite SHIELD Floor and Wall Protector
11
Place palm approximately 2" below dispenser, product
will dispense within 1 second of sensor activation.
lf installing with wa/1 fasteners
Using the dispenser, pierce the tape on the back plate
to mark and drill four holes using 1/4" drill bit.
Use the supplied wall anchor and #1 O x 1" screws to
secure the dispenser in place, being careful not to
over tighten. lt is recommended to use 4 screws. lf
only two are possible, the top two holes should be
used. Recommended holes shown.
n
8
tmiJ
