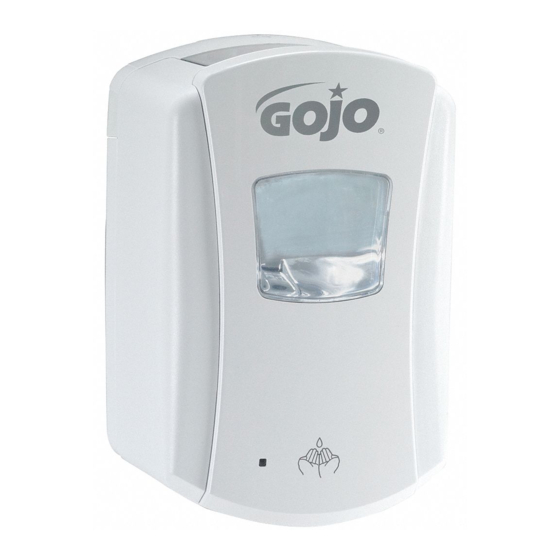

Gojo LTX-7 Installation Instructions

GOJO LTX-7

INSTALLATION INSTRUCTIONS

These instructions apply to GOJO
Please read all instructions carefully before installing and using the dispenser.
Do not install in locations where dispenser may be exposed to wet environments, such as showers or areas where walls are
washed down. Installer can complete installation using tape, fastners, or both to secure dispensing system to the wall.
1.
Open dispenser by by pushing
on one (or both) of the dual
side latches.
Fastener Installation
(Step 6)
6.
Using back plate as a template,
press a pencil through the
installation tape to mark holes.
Mark and drill holes. Install with
#10 x 1" anchors and type A
#10 x 1" screws.
Recycling
1.
Insert a at blade screwdriver into
the slots on the re ll collar and
twist to separate the collar from
the re ll. Unscrew the pump from
the bottle and discard.
AND LTX-12
™
® , PURELL ® , PROVON
2.
6"
15.24 cm
When installing above a
countertop, be sure at least 6"
clearance is provided.
7.
Remove cap from re ll pump. You
will notice a small knob (E-key)
protruding from the white pump
collar – DO NOT REMOVE THIS
E-KEY as its removal will prevent
the re ll from dispensing. Push
re ll with E-key facing the back
plate, into pump house.
2.
Bottle is recyclable.
DISPENSER
™
® and MICRELL ® brand LTX-7 and LTX-12 dispensers.
Tape Installation (Steps 3, 4 and 5)
3.
Clean installation surface with
an alcohol pad. Allow surface to
dry for 60 seconds. Peel paper
off installation tape.
8.
Install 4 fresh D-cell alkaline
batteries according to diagram
shown on dispenser.
4.
Press rmly on back plate for 10
seconds. For maximum adhesion,
do not load re ll for 24 hours.
9.
Close dispenser. Battery indicator
light will initially alternate
blinking red and green. After a
few moments, indicator light will
consistently blink green when
the re ll is properly loaded.
5.
Wait 24 hours before loading
re ll.
