PSA1200R/1201R
Advantium 120 Above-the-Cooktop Oven
®
Dimension Information (in inches)
Hood Exhaust Duct
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION:
The hood exhaust has been designed to mate with a standard 3-1/4" x 10"
rectangular duct.
If a round duct is required, a rectangular-to-round transition adaptor must be used.
Do not use less than a 6" diameter duct.
REAR EXHAUST:
If a rear or horizontal exhaust is to be used, care should be taken to align exhaust
with the space between studs, or wall should be prepared at the time it is constructed
by leaving enough space between the wall studs to accommodate exhaust.

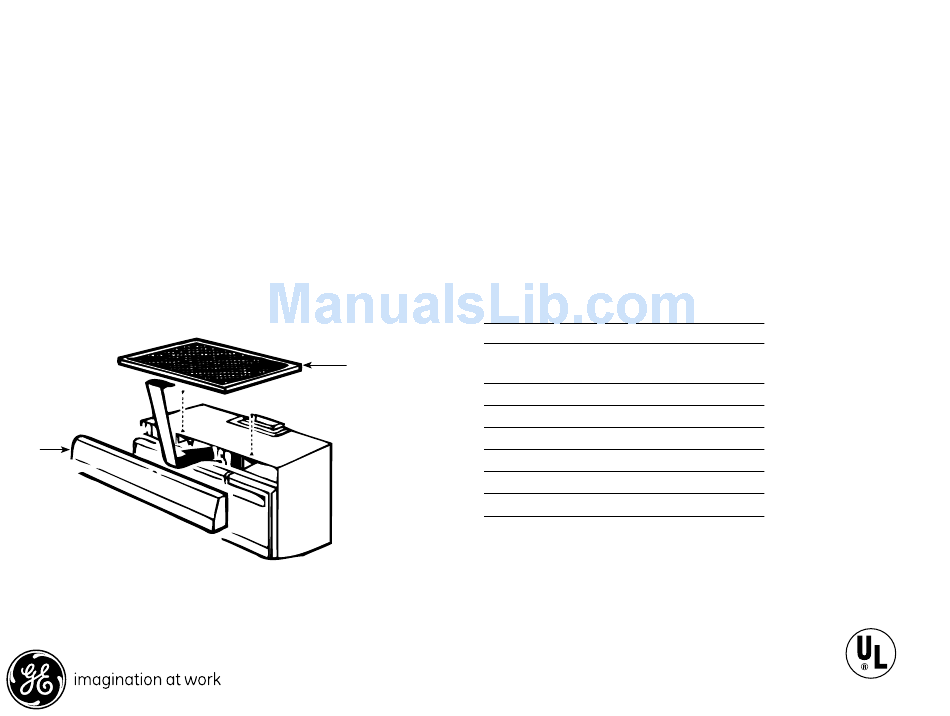

Filter Kit Accessory
Grille
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
Filter Kit
JX81D–Recirculating
Charcoal Filter Kit
To be used when
the Advantium oven
cannot be vented
to the outside.
or
™
®
MAXIMUM DUCT LENGTH:
For satisfactory air movement, the total duct length of
3-1/4" x 10" rectangular or 6" diameter round duct should
not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their
actual physical size. When calculating the total duct length,
add the equivalent length of all transitions and adaptors plus
the length of all straight duct sections. The chart below
shows the approximate feet of equivalent length of some
typical ducts.
Duct
A. Rectangular-To-Round
Transition Adaptor
B. Wall Cap
C. 90° Round Elbow
D. 45° Round Elbow
E. 90° Rectangular Elbow
F. 45° Rectangular Elbow
G. Roof Cap
Equivalent
5 Ft.
40 Ft.
10 Ft.
5 Ft.
25 Ft.
5 Ft.
24 Ft.
Specification Created 4/10
