GE Profile Advantium PSA1201RSS Dimensions And Installation Information

PSA1200R/1201R

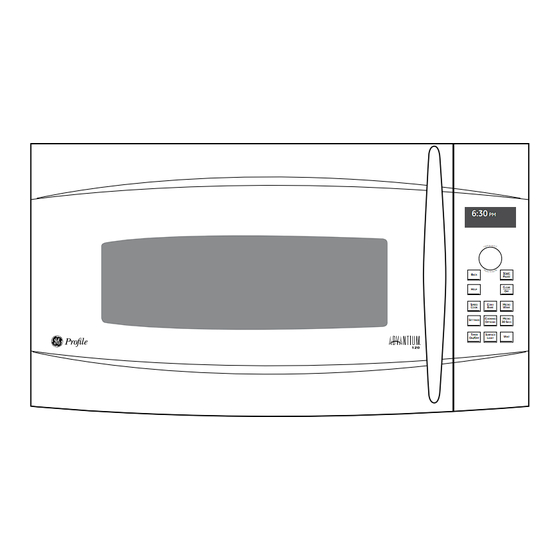

Advantium 120 Above-the-Cooktop Oven
®

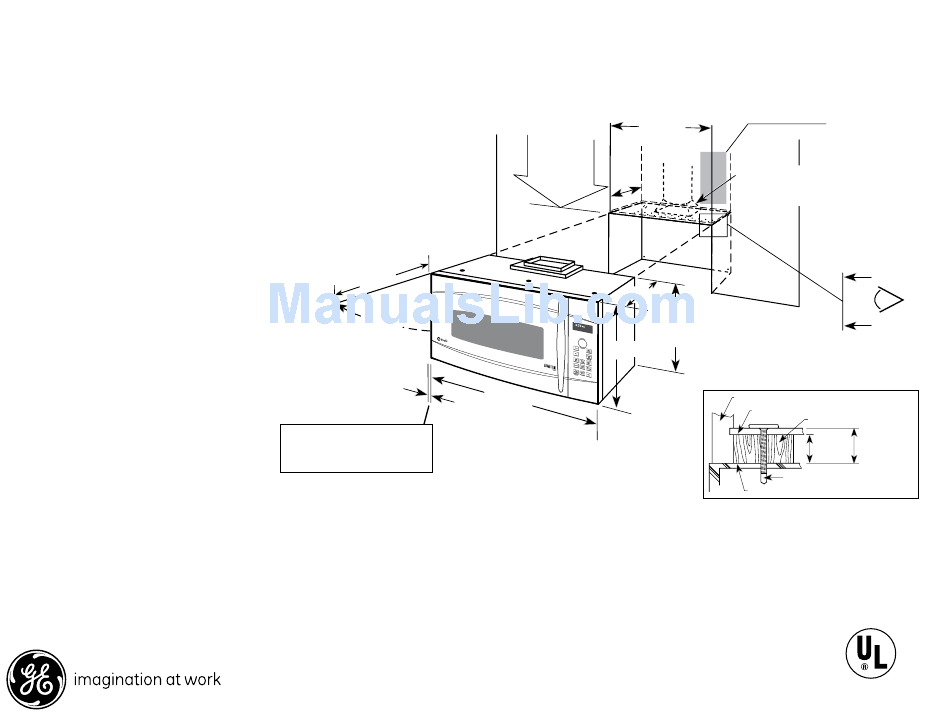

Dimension Information (in inches)
Important: Please read carefully. For personal safety,
this appliance must be properly grounded to avoid
severe or fatal shock.
Do not, under any circumstances, cut, deform, or
remove any of the prongs from the power cord.
Do not use with an extension cord.
Installation Information: This information is not
intended to be used for installing unit described.
Before installing, consult installation instructions
packed with product/kit for current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
Above-the-cooktop Advantium oven
Dimensions (in inches)
25-1/2
100˚
Door open
(without
obstruction)
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
Note: Outside venting is optional. Vent (duct) can be horizontal or vertical.
or
™
®
30" MIN.
width required
66" MIN.
13"
Mounting
MAX.
height
12"
from floor
MIN.
16 max
16-3/8 max
(Rear)
16 max
30 max
240V and 120V outlets
need to be spaced on
the side if the desire is
to setup with top
Exhaust outlet
exhaust.
connects to
3-1/4" X 10" duct
A
A
SIDE VIEW A-A
Cabinet Front
Cabinet Bottom Shelf
Filler Block
This distance can
NOT exceed 2" to
Equivalent
to Depth of ensure proper
Cabinet Recess
installation with
the provided
screws.
Self-Aligning Screw
Oven Top
Specification Created 4/10
Listed by
Underwriters
Laboratories
240447
