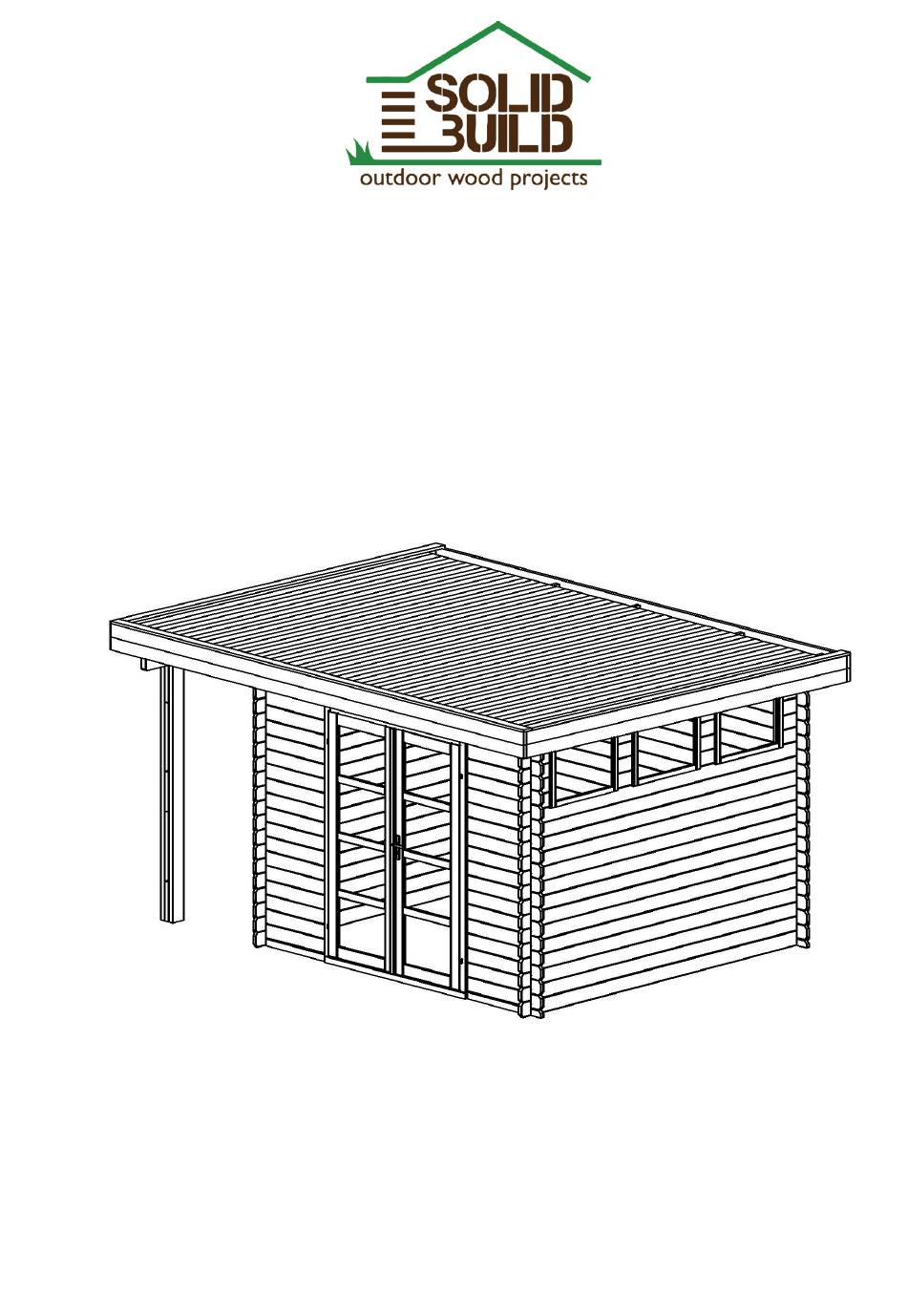

ASSEMBLY INSTRUCTIONS
GARDEN SHED "MODERNA 2"
Dimensions: 13 x 10 (1 1/8')''
IMPORTANT
Before beginning the assembly of your garden shed, please read the instructions carefully
and follow them closely. By doing so, you will avoid unnecessary problems and save
time. It is recommended to start the assembly process only once all the components
of your shed have been identified, sorted, and classified by size.
This notice also contains recommendations related to maintenance of your shed.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MODERNA 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solid Build MODERNA 2

Summary of Contents for Solid Build MODERNA 2

  • Page 1 ASSEMBLY INSTRUCTIONS GARDEN SHED “MODERNA 2” Dimensions: 13 x 10 (1 1/8’)’’ IMPORTANT Before beginning the assembly of your garden shed, please read the instructions carefully and follow them closely. By doing so, you will avoid unnecessary problems and save time.
  • Page 2 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) WHAT YOU NEED TO KNOW BEFORE ASSEMBLY Characteristics of wood. Wood has a set of specific traits that are natural and inherent to it. Those characteristics include color, density, and the extent to which it is affected by humidity.
  • Page 3 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) Protection. Assembling the shed should be carried out in dry weather conditions. If rain should start during the assembly process, the wood must be covered to avoid warping. Once you have erected the shed, let it settle for a couple of days and finish with a coat of paint, stain or other appropriate treatment.
  • Page 4 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) PREPARATION OF ASSEMBLY Tools needed for assembly: • Rubber mallet • Hammer • Tape measure • Pliers for removing staples • Philips screwdriver • 5M Allen wrench for hinge adjustment • Ladder •...
  • Page 5 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) STARTER WALL BOARDS POSITION DESIGNATION DIMENSION (inch) QUANTITY Nicked lower starter front 117.32 x 2.16 x 1.1 wall-board Lower back wall-board 117.32 x 2.16 x 1.1 Side wall-board 117.32 x 4.33 x 1.1 32 + (1*) To form the core framework, begin with a nicked lower starter front wall-board part...
  • Page 6 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) ASSEMBLY OF WALLS POSITION DESIGNATION DIMENSION QUANTITY (inch) Front wall-board 30.70 x 4.33 x 1.1 Back wall-board 117.32 x 4.33 x 1.1 19 + (1*) Short side wall-board 12.20 x 4.33 x 1.1 Intermediate side wall- 7.24 x 4.33 x 1.1 board...
  • Page 7 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) INSTALLING DOOR FRAME POSITION DESIGNATION DIMENSION (inch) QUANTIT Lower strip of double door 55.51 x 2.95 x 2.59 (horizontal) Side strip of double door 76.37 x 3.54 x 2.59 (vertical) Top strip of double door 55.51 x 3.54 x 2.59 (horizontal) It is time to install (slide in) the double door frame (part no.
  • Page 8 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) FIXING THE DOOR OPTIONAL. Install 2 barrel bolts to the door outside as pictured above. Fix them with 4 screws 0,118x0,984. You may install one at the bottom, and one at the top, or only one at the bottom.
  • Page 9 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) ASSEMBLY OF WALLS AND PILLARS POSITION DESIGNATION DIMENSION (inch) QUANTITY Window 24.56 x 29.48 Lower strip of double door 55.51 x 2.95 x 2.59 (horizontal) Side strip of double door (vertical) 75.19 x 3.54 x 2.59 Top strip of double door (horizontal) 55.51 x 3.54 x 2.59...
  • Page 10 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) CORNER REINFORCEMENT STUDS Ø M6 16 units Ø 0,15x1,5 inch Ø 0,31x0,13x0,13 inch Ø 0,12x0,12 inch 12-16 units 48 units 16 units POSITION DESIGNATION DIMENSION (inch) QUANTITY Corner Stud 76,77 x 1.57 x 1.57 Fasten the corner plates to the walls to create a pocket and slide in each stud through the top.

  • Page 11: Table Of Contents

    GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) FINISHING THE WALLS POSITION DESIGNATION DIMENSION (inch) QUANTITY Sustaining front fascia-board 16.53 x 4.33/4.21 x 1.73 Sustaining back fascia-board 16.53 x 2.28/1.93 x 1.73 Front part of gable 37.12 x 4.33/3.77 x 1.1 Back part of gable 37.12 x 2.67/1.93 x 1.1 Top front wall-board...

  • Page 12: Position Designation

    GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) ASSEMBLING ROOF BEAMS Fixing of protective wind studs Pic. 1 Fix the protective wind studs to the gable with 0.23x2.3 inch screw in the middle of groove Pic. 2 Fix the protective wind studs to the lower wall- board with a 0.15x1.5 inch screw.
  • Page 13 GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) INSTALLING THE ROOF BOARDS POSITION DESIGNATION DIMENSION QUANTITY (inch) Roof board 125.98 x 3.46 x 0.7 49+ (2*) Ensure that walls are assembled correctly. Start covering the roof with roof boards (part no.

  • Page 14: Dimension (Inch)

    GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) INSTALLING FASCIA POSITION DESIGNATION DIMENSION (inch) QUANTITY Front and back fascia-boards 170.39 x 8.66 x 0.74 Side fascia 130.70 x 8.66 x 0.74 Top front fascia 170.39 x 3.54 x 0.74 Top side fascia 128.66 x 3.54 x 0.74 Roof end boards...

  • Page 15: 4.33/4.21

    GARDEN SHED – MODERNA2 13 x 10 (1 1/8’’) LIST OF ALL PARTS OF THE LOG CABIN POSITION DESIGNATION DIMENSION (inch) QUANTITY Nicked lower starter front wall-board 117.32 x 2.16 x 1.1 Lower back wall-board 117.32 x 2.16 x 1.1 Side wall-board 117.32 x 4.33 x 1.1 32 + (1*)
