Solid Build ASPEN Assembly Instructions Manual

Garden shed 12 ft x 10 ft, 1 3/8 "
Hide thumbs Also See for ASPEN:

Advertisement

Quick Links

Download this manual

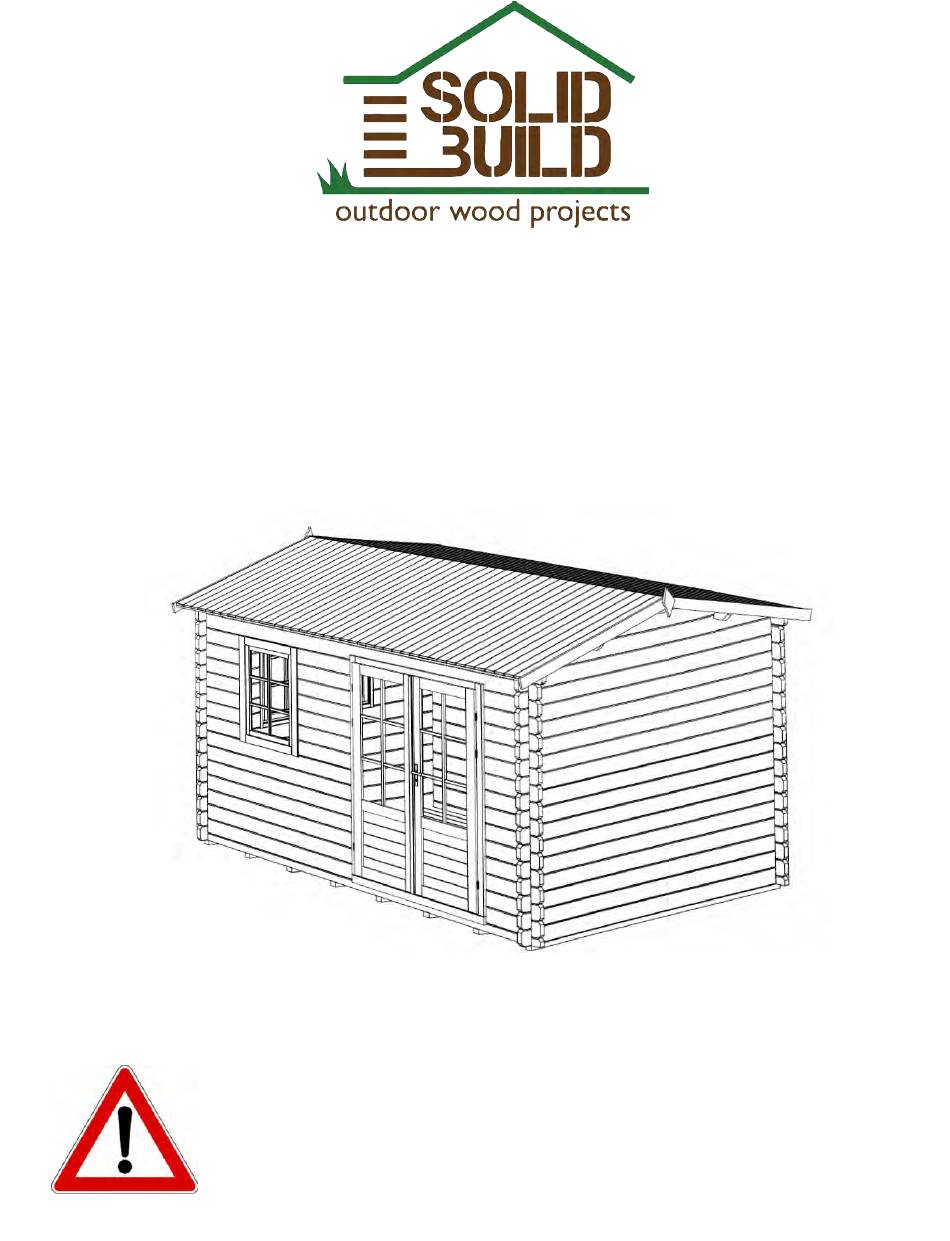

ASSEMBLY INSTRUCTIONS
ASPEN GARDEN SHED
12 ft x 10 ft, 1
/
"
3
8
IMPORTANT
Before beginning the assembly of your garden shed, please read the instructions
carefully and follow them closely. By doing so, you will avoid unnecessary
problems
and save time. It is recommended to start the assembly process only once all the
components of your shed have been identified, sorted, and classified by size. This
intro also contains recommendations related to the maintenance of your shed.
