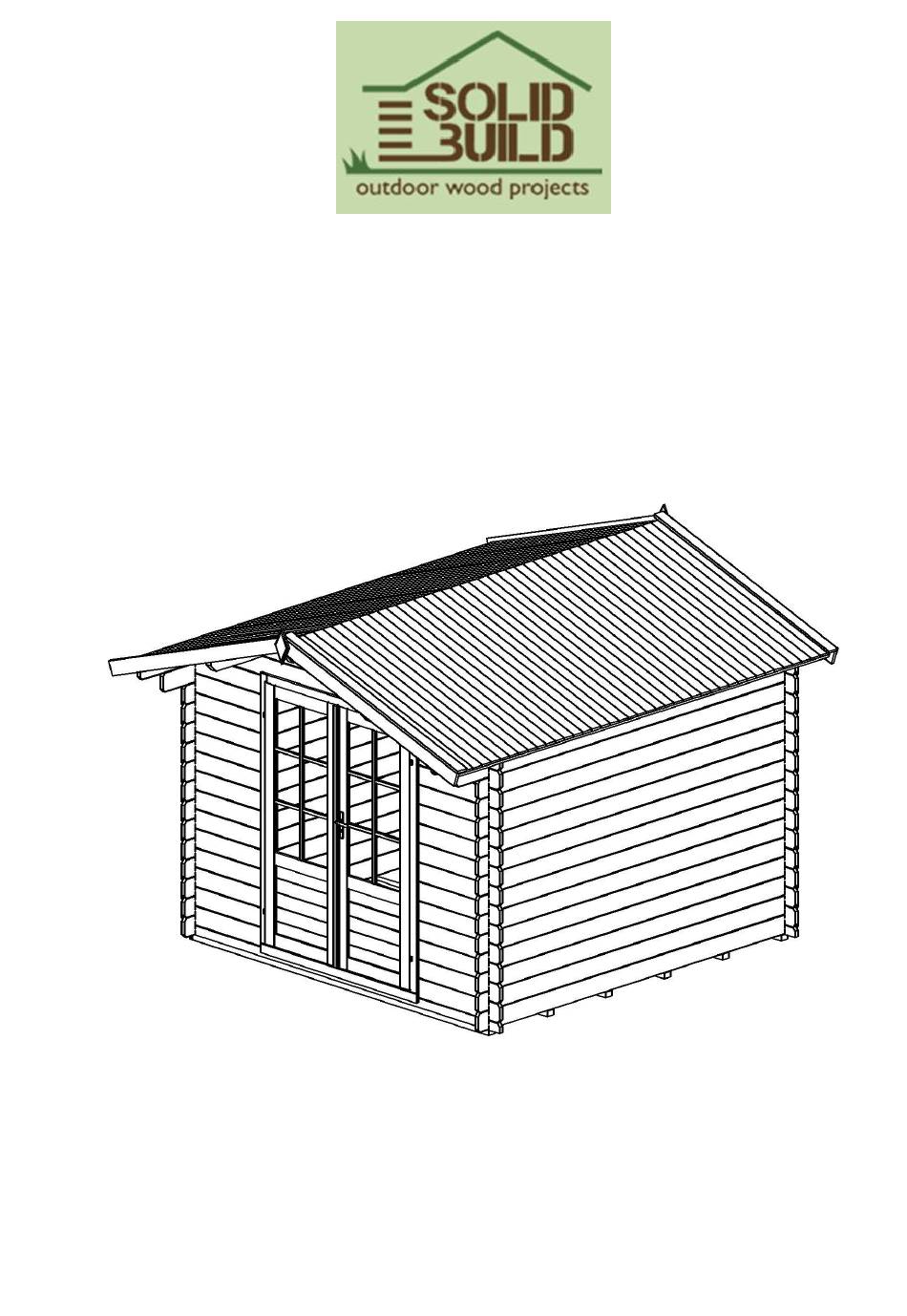

ASSEMBLY INSTRUCTIONS
GARDEN SHED - DOUGLAS-
Dimensions: 10x8 (1 3/8')"
IMPORTANT
Before beginning the assembly of your garden shed, please read the instructions
carefully and follow them closely. By doing so you will avoid unnecessary problems
and save time. It is recommended to start the assembly process only once all the
components of your shed identified have been identified, analyzed and classified. This
notice also contains recommendations related to maintenance of your shed.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DOUGLAS and is the answer not in the manual?

Questions and answers

Related Manuals for Solid Build DOUGLAS

Summary of Contents for Solid Build DOUGLAS

  • Page 1 ASSEMBLY INSTRUCTIONS GARDEN SHED - DOUGLAS- Dimensions: 10x8 (1 3/8')" IMPORTANT Before beginning the assembly of your garden shed, please read the instructions carefully and follow them closely. By doing so you will avoid unnecessary problems and save time. It is recommended to start the assembly process only once all the components of your shed identified have been identified, analyzed and classified.
  • Page 2 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD What you need to know prior to assembly Characteristics of wood. Wood has a set of specific characteristics that are natural and inherent to it. Those characteristics include colour, density and the extent to which it is affected by humidity.
  • Page 3 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD Timber may last a long time, but fluctuations in humidity and temperature of the environment reduces its longevity. A variety of cracks may emerge, which will then both damage the integrity of timber and will facilitate infection with (and rapid development of) fungus.
  • Page 4 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD PREPARATION OF ASSEMBLY First, begin to form 109.84 x 90.16 inch square treated foundation beams 1a). (part no. POSITION DESIGNATION DIMENSION (inch) QUANTITY Treated foundation beam 109.84 x 2.36 x 1.57 Lower front and back 117.71 x 2.66 x 1.34...
  • Page 5 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD ASSEMBLY OF WALLS POSITION DESIGNATION DIMENSION (inch) QUANTITY Front wall-board 30.90 x 5.31 x 1.34 Back wall- board 117.71 x 5.31 x 1.34 14 +(1*) Side Wall- board 105.90 x 5.31 x 1.34 Continue with front wall-boards part no.
  • Page 6 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD FINISHING OF WALLS POSITION DESIGNATION DIMENSION QUANTI (inch) Top wall-boards 114.17 x 5.51 x 1.34 Lower strip of double door 55.51 x 2.95 x 2.51 (horizontal) Side strip of double door (vertical) 75.19 x 3.54 x 2.51...
  • Page 7 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD MOUNTING THE GABLE POSITION DESIGNATION DIMENSION (inch) QUANTITY Double door 69.88 x 25.98 1 + 1 Gable 117.63 x 20.27 x 1.34 After having built the frame, you can position the double door (part no. 10) in the space created.
  • Page 8 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD ASSEMBLING ROOF BEAMS Fixing of protective wind studs Pick. 1 Fix the protective wind studs to the gable with 0.23x3.15 inch screw in the middle of groove Pick. 2 Fix the protective wind studs to the lower wall- board with a 0.15x1.5 inch...
  • Page 9 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD INSTALLING THE ROOF BOARD POSITION DESIGNATION DIMENSION QUANTITY (inch) Roof board 65.55 x 3.34 x 0.7 70 +(2*) Before installing the roofing, ensure that walls are quite right and nail roof boards (part no.
  • Page 10 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD INSTALLING FASCIA POSITION DESIGNATION DIMENSION QUANTITY (inch) Fascia 66.93 x 3.54 x 0.74 Top fascia 65.55 x 3.54 x 0.74 Roof decoration 8.66 x 3.93 x 0.74 Roof end boards 57.08 x 1.57 x 0.63 After installing the chosen roofing, fix fascia (part no.
  • Page 11 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD INSTALLING THE FLOOR POSITION DESIGNATION DIMENSION QUANTITY (inch) Floor board 87.00 x 3.34 x 0.7 32 +(2*) Baseboard 53.54 x 1.10 x 0.75 Floor boards (part no. 20) are fitted last, with nails provided. Finish floor installation with baseboards (part no.
  • Page 12 GARDEN SHED – DOUGLAS 10x8(1 1/3')" SOLID BUILD LIST OF ALL PARTS OF THE GARDEN SHED POSIT DESIGNATION DIMENSION QUANTITY (inch) Treated foundation beam 109.84 x 2.36 x 1.57 Lower front and back wall-board 117.71 x 2.66 x 1.34 Side wall-board 98.03 x 5.31 x 1.34...
