Solid Build Aspen Assembly Instructions Manual

Garden shed
Hide thumbs Also See for Aspen:

Advertisement

Quick Links

Download this manual

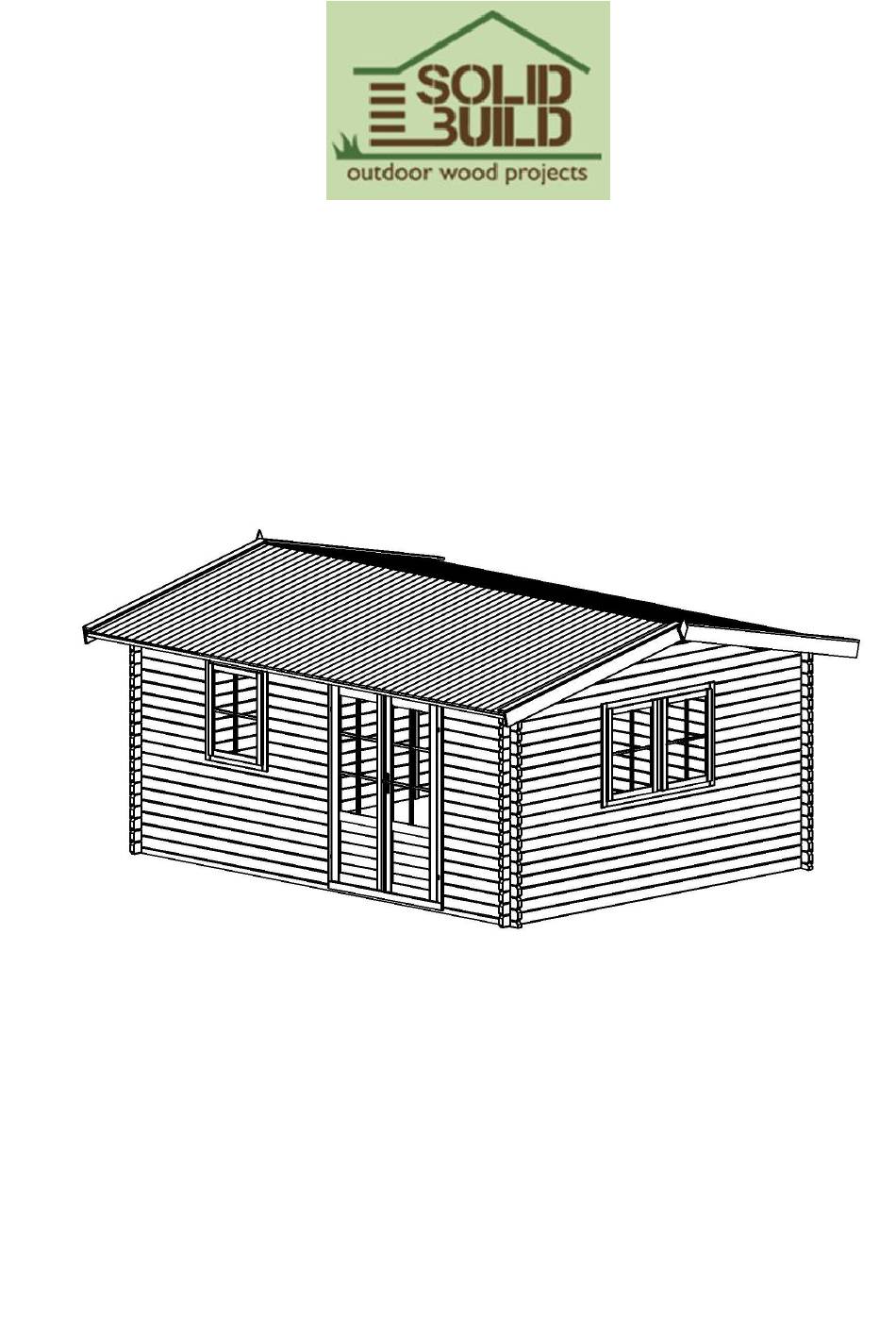

ASSEMBLY INSTRUCTIONS
GARDEN SHED - ASPEN-
Dimensions: 12x10 (1 1/8')"
IMPORTANT
Before beginning the assembly of your garden shed, please read the instructions
carefully and follow them closely. By doing so you will avoid unnecessary problems
and save time. It is recommended to start the assembly process only once all the
components of your shed identified have been identified, analyzed and classified. This
notice also contains recommendations related to maintenance of your shed.
