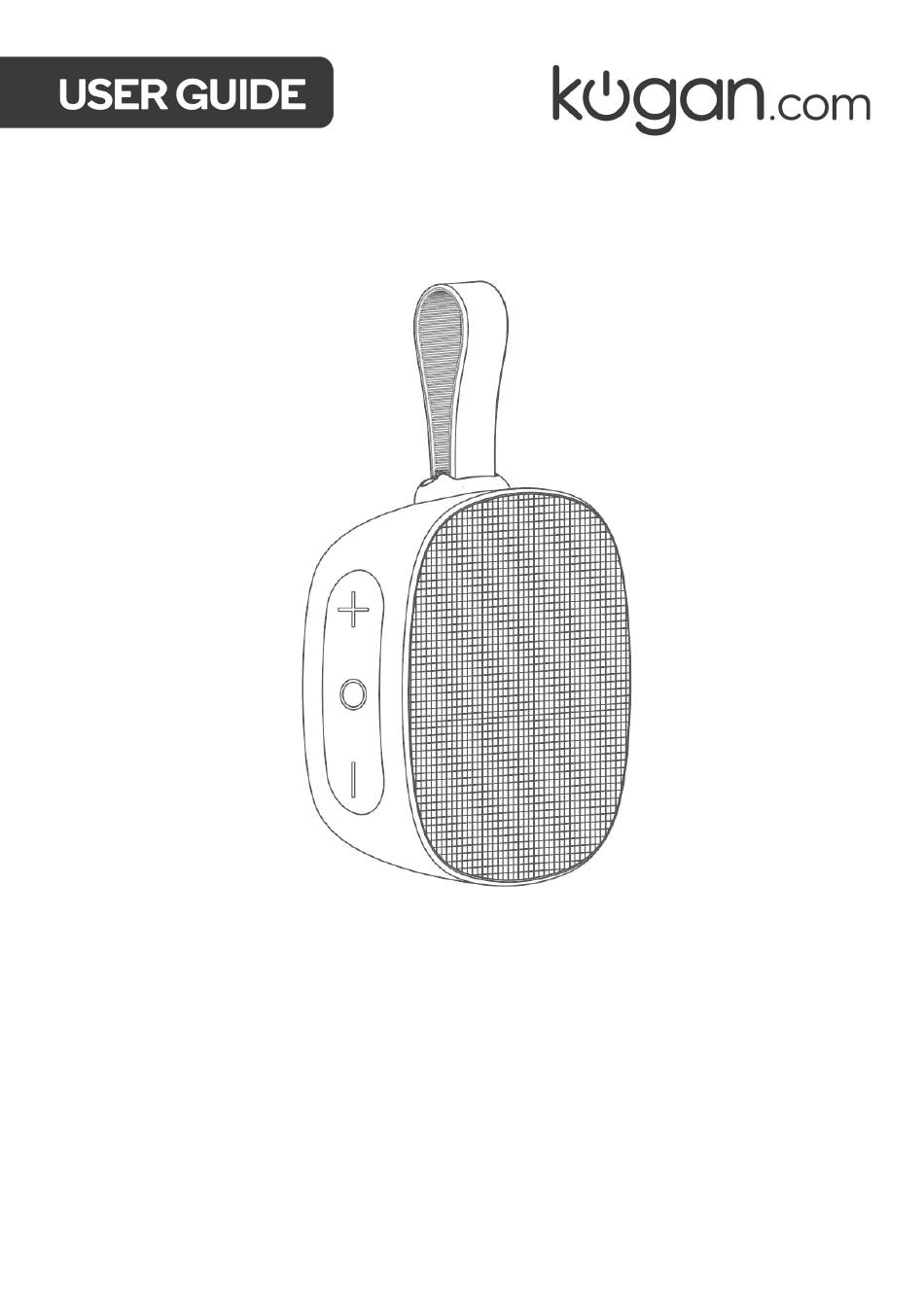

- Page 1 IPX7 WATERPROOF PORTABLE WIRELESS BLUETOOTH SPEAKER KASPIPX7BKA & KASPIPX7GYA...
-
Page 3: Safety And Warnings
This product has a waterproof rating of IPX7. • If this product shows any sign of damage, cease use immediately and contact Kogan.com for support. • When the product is fully charged, do not leave it plugged in for an extended period of time. - Page 4 OVERVIEW + button Power button - button microSD card slot USB charging port Mode button Indicator...
-
Page 5: Operation
OPERATION Charging the Speaker • Plug the supplied USB cable into the charging port on the speaker. • Connect the cable to a USB power adapter (mobile phone charger) and connect it to a power outlet. • The speaker will be fully charged in approximately 2-3 hours. Pairing with Bluetooth Device •... - Page 6 TWS Mode This speaker can be linked to a second speaker (sold separately) to function in TWS “True Wireless Stereo” mode. To activate TWS mode: Turn on both speakers and ensure the blue indicators are flashing. Press both the “+” and “-” buttons simultaneous on one of the speakers. The speaker will play an audio tone and enter into TWS pairing mode.
-
Page 7: Button Functions
Button Functions + Button • Press to increase volume • Long press to switch to next track during playback • Switch to next radio station (FM mode only) Power Button • Press and hold for 2 seconds to power on/off •... - Page 8 Indicator Indicator Power on Indicator will rapidly flash blue. Indicator will be solid blue when Bluetooth connects successfully. Bluetooth Indicator will rapidly flash blue when Bluetooth signal is out of range. mode Speaker will turn off automatically if not connected for 10mins. Insert SD card, indicator will slowly flash blue during playback.
-
Page 9: Specifications
SPECIFICATIONS Bluetooth version Battery capacity 1200mAh 4-6 hours @70% volume Operating time 10-12 hours @50% volume Charging time 2-3 hours Driver units 5W/4Ω Charging current 5V=0.5A Dimensions 143.4 x 94.8 x 45.6mm Weight 210g±10... - Page 10 Q: What kind of charger should I use for the speaker? A: All common USB chargers can be used, we recommend using 5V/2A or above 2A. Q: Why is there audio interference or discontinuous sound during playback? A: The speaker has a range of 10m without obstructions. If it is used outside of a 10m range or if there are obstructions between the speaker and the device, you may experience audio interference or discontinuous sound.
- Page 11 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com.
