Summary of Contents for Kogan KASBD16CA

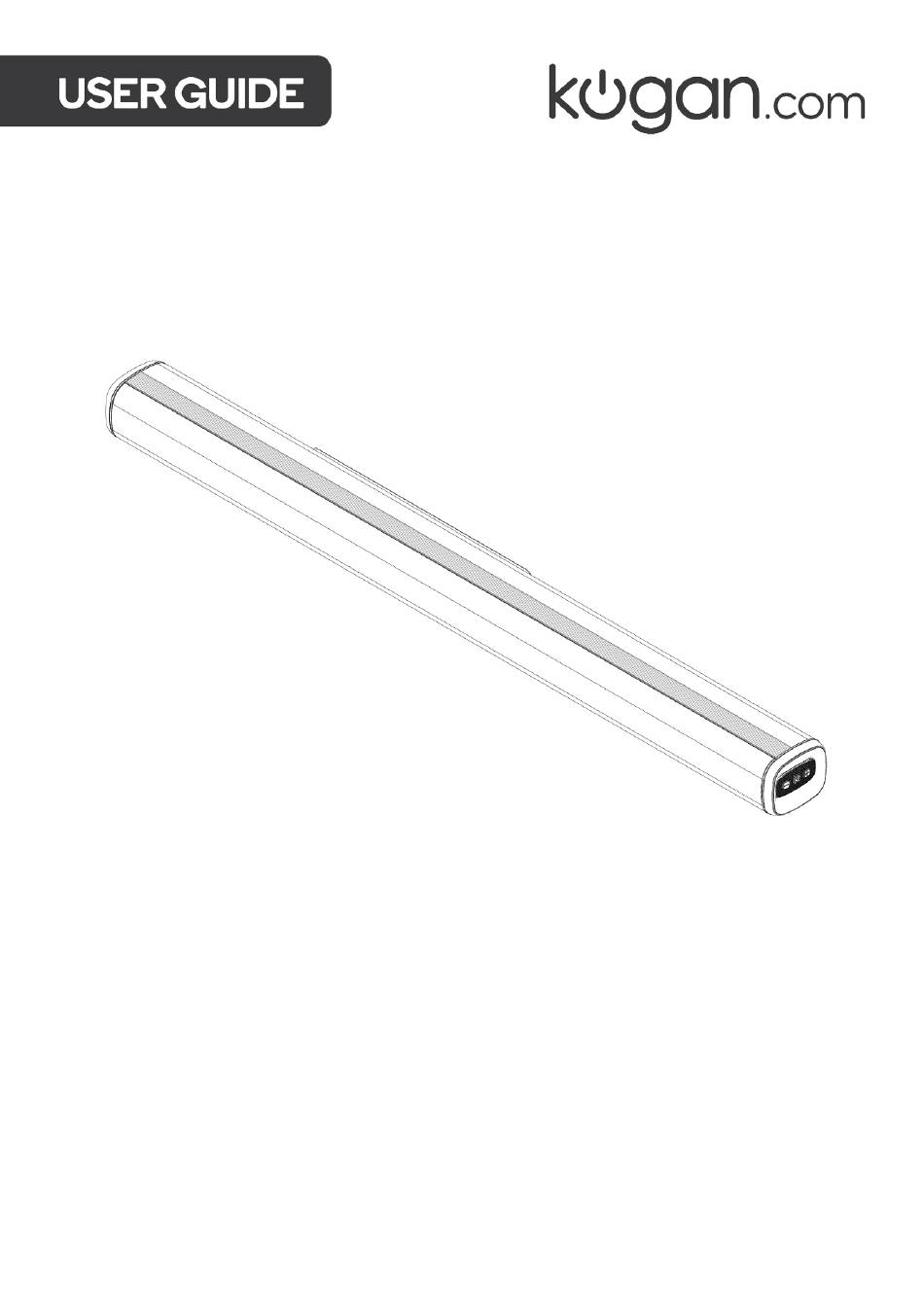

- Page 1 2.1 DOLBY SOUNDBAR WITH WIRELESS SUBWOOFER (160W RMS) KASBD16CA...
-
Page 3: Safety And Warnings
To reduce the risk of electric shock, do not remove the outer casing. To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to Kogan.com only. - Page 4 The appliance is not intended to be operated by means of an external timer or separate remote-control system. • If the supply cord is damaged, it must be replaced by Kogan.com in order to avoid a hazard. • Ensure the voltage of this system is identical to the voltage of your household power supply before use.
- Page 5 • Refer all servicing to Kogan.com. Servicing is required when the apparatus has been damaged in any way, for example, when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
- Page 6 Power source This soundbar is designed to operate on normal AC power source. For Australia and New Zealand, it operates only under SMPS 110V-240V~50Hz/60Hz. Do not attempt to operate the soundbar on any other power source, as this may cause damage to the product that is not covered by your warranty.
- Page 7 OVERVIEW 8888 Optical HDMI TV (ARC) Optical HDMI TV (ARC Subwoofer LED display HDMI TV(ARC) VOL- Power/Standby Optical AC IN VOL+ Subwoofer LED indicator for pairing WPS auto pair button USB (for updates only) AC IN...
- Page 8 Remote control Power Switches the unit on/off (Standby) 2 VOL+ Volume increase 3 Previous Previous song (USB and BT mode) 4 VOL- Volume decrease 5 BASS- Bass decrease 6 TRE+ Treble increase 7 TRE- Treble decrease 8 Input Change input mode Play/Pause/RESET Play/Pause: Play or pause current program (USB and BT mode) Reset: Press and hold to restore manufacturer defaults...
- Page 9 ASSEMBLY Positioning the soundbar Place on a flat surface: Place the soundbar horizontally on a flat surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Don’t place the soundbar inside a cabinet or on a walled shelf.
- Page 10 Make 2 holes on the wall with the same distance as the wall bracket on the soundbar. Put the plastic anchors onto the wall and secure the screws to the plastic clip. Do not tighten the screws all the way; make sure to leave some space. Once the screws are securely fastened, hang the soundbar by placing the wall mount bracket over the screws.
-
Page 11: Operation
OPERATION Setting up the soundbar Plug in the power cord and the display will light up (standby mode). Switch on the soundbar by using the power button on the soundbar or remote. After switching on, the default input mode will appear on display. The input mode can be changed by pressing the power button again, or by using the INPUT button on remote. - Page 12 Notes: • If your pairing device is switched off or manually disconnected, the soundbar will automatically enter pairing mode. • The connection to the device will be re-established once you re-enter wireless range (10m). To connect to other devices, repeat the above pairing steps. •...
- Page 13 Optical mode Use this mode to play music from the optical digital input, i.e. from a TV on your soundbar. The TV must have an optical digital output. Use the optical cable supplied to make this connection. • Connect the optical cable to the optical digital output of your TV. •...
- Page 14 HDMI mode The soundbar supports HDMI with Audio Return Channel (ARC). If your TV is HDMI ARC compliant, you will be able to hear the TV audio through your soundbar by using a single HDMI cable. Using a high-speed HDMI cable, connect the HDMI TV (ARC) connector on the soundbar to the HDMI ARC connector on the TV.
- Page 15 Notes on operation • If the wireless subwoofer is turned on, but the soundbar is in standby or is turned off/not connected to AC power, the flashing blue LED indicator on the wireless subwoofer will turn a constant red after a few minutes to signify that the subwoofer has also entered standby.
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
