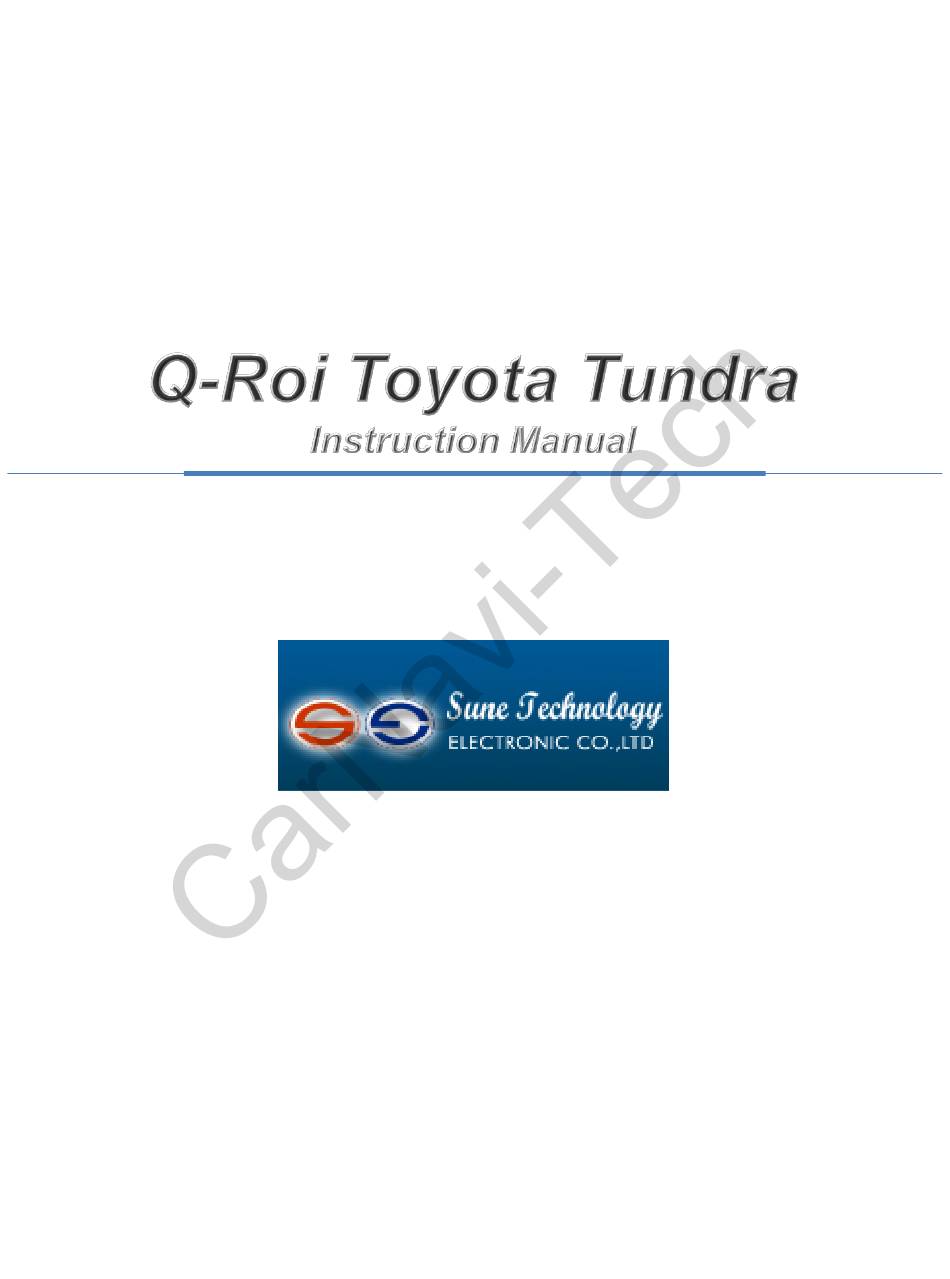

Sune Technology QROI Instruction Manual

Navigation system for toyota tundra
Hide thumbs Also See for QROI:
Table of Contents

Advertisement

Quick Links

Download this manual
Your best partner for better driving
SUNE TECHNOLOGY CO.,LTD
No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN
TEL:+88662292246 FAX:+88662288104
Http://www.sune-tech.com
Shop http://www.carnavi-tech.com
SKYPE:sune_tech or hsin_han99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QROI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sune Technology QROI

Summary of Contents for Sune Technology QROI

  • Page 1 Your best partner for better driving SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104 Http://www.sune-tech.com Shop http://www.carnavi-tech.com SKYPE:sune_tech or hsin_han99...

  • Page 2: Warning / Caution

    Warning / Caution  When installing the main unit, do not remove or alter existing vehicle fasteners, including nuts, bolts, screw, clips, and fittings. Never detach, move or alter existing vehicle wiring, including electrical grounds and straps. Alteration of existing vehicle Warning components may make vehicle unsafe to operate.
  • Page 3 Index 1. General spec 2. System Diagram 3. Components 4. Setting up Dip S/W 5. Installation diagram 6. Pin Specification of Connector Installation Diagram 7. Cautions before Installation 8. Installation 9. Quality Warranty...

  • Page 4: General Spec

    1. General Spec Android 4.2.2 (Jelly Bean) Telechips TCC8930 (1GHz Cortex A9 DualCore) Display OEM LCD Internal Memory DDR3 1GB RAM + 8GB eMMC External Memory SDHC Slot Support (up to 64GB) A/V Input x 3, Rear Cam Input x 1, CAN(Controller Area Network) x 2, Function Mic x 1,...

  • Page 5: System Diagram

    2. System Diagram LCD Display eMMC LVDS Flash USB HUB Transmitter Memory USB Devices - USB memory - Hard Disc - Wifi dongle - BlueTooth dongle - 3G / LTE dongle - Other USB Touch Accessories DDR3 Screen Application Touch Image Scaler Controller Processor...
  • Page 6 3. Components Bolt* 4ea Bolt* 3ea FFC cable* 1ea 3G dongle * 1ea(Option) (FFCABL0000) (ETCETC0116) WIFI dongle * 1ea(Option) LVDS cable* 1ea Sub-bard * 1ea (ETCETC0110) (QCPASS0000) (HALVDSC0020) TOUCH cable * 1ea (HTOUCH0007) Power cable 16P * 1ea (HPOWER0041) AV/BT Cable * 1ea USB cable * 2ea (HAVCAB0016) (HARETC0027)
  • Page 7 4. Setting up Dip Switch(I/F) ※ ON : DOWN / OFF : UP Function Dip S/W Selection No Use No Use No Use No Use No Use No Use No Use ON : Start with Q-ROI Booting options OFF : Start with OEM ※...

  • Page 8: Installation Diagram

    5. Installation Diagram It will be Plug Monitor & Play Speaker FRONT SAFE CAN1- REAR CAN2- CAN1-L CAN2-L AUX-ON AUX-GND REAR CAM A OUT(L) A OUT(R) POWER POWER cable TOGGLE cable Provided LVDS cable SD Card...
  • Page 9 6. Pin Specification of Connector AUDIO OUT (L) AUDIO OUT (L) AUDIO OUT (R) AUDIO OUT (R) VIDEO IN1 VIDEO IN1 AUDIO OUT(L) AUDIO L Input REAR-C AUDIO OUT(R) AUDIO R Inut REAR-C FRONT-C VIDEO IN1 VIDEO Input1 FRONT-C Connect Rear Camera VIDEO OUT2 REAR-C VIDEO OUT2...

  • Page 10: Cautions Before Installation

    7. Cautions before Installation Ignition key should be taken off before starting installation, interface  power connection must be the last step in installation. Power cable should be separated when connecting interface.  Should be no any electronic devices or magnetic pole around ...
  • Page 11 8. Installation - Please dismantle a monitor and head unit as above.
  • Page 12 8. Installation - Disconnect a FFC cable connected between a command and a monitor.
  • Page 13 8. Installation - Take away the cover of the board -10-...
  • Page 14 8. Installation - Disconnect the OEM FFC from the connector. - Disconnect the OEM FFC from the connector. -11-...
  • Page 15 8. Installation Supplied FFC cable Supplied FFC cable - Connect supplied FFC cable to connectors where OEM FFC were connected. -12-...
  • Page 16 8. Installation - Please screw 3 numbers of supports as above. -12-...
  • Page 17 8. Installation Supplied FFC - Please connect FFC cables as above. -12-...
  • Page 18 8. Installation FFC cables pass through pointed spaces ① Please the original FFC cables(CN101/CN102)pass through the supplied board. ② Please connect the original FFC cable(CN102) to LCD out. ③ Please connect OEM FFC to touch in and supplied cables to touch out. -12-...
  • Page 19 8. Installation Supplied FFC cable - Please connect FFC cables -12-...
  • Page 20 8. Installation - Please screw bolts ※ Remove the cover - Please do not put the cover of the board -12-...
  • Page 21 8. Installation - Please dismantle head unit as above. -12-...
  • Page 22 8. Installation ① Please dismantle a Fan as above. ② Pass through the supplied LVDS cable on the top left of Fan. ③ Reassemble the unit -12-...
  • Page 23 8. Installation - After reassembling the unit -12-...
  • Page 24 8. Installation - Connect FFC cables and LVDS cable . -12-...

  • Page 25: Quality Warranty

    9. Quality Warranty This product has been tested and have passed under our strict quality control. If the failure occurred due to the carelessness of workmanship within one year after the purchase, we are responsible to repair free of charge. Please bring this warranty to dealer whom you purchased this product from at the repair time.

This manual is also suitable for:

Q-roi-main-1404-017
