ASSEMBLY INSTRUCTIONS
ITEM NO.
164WAITRS1BK
164WAITRS1WL

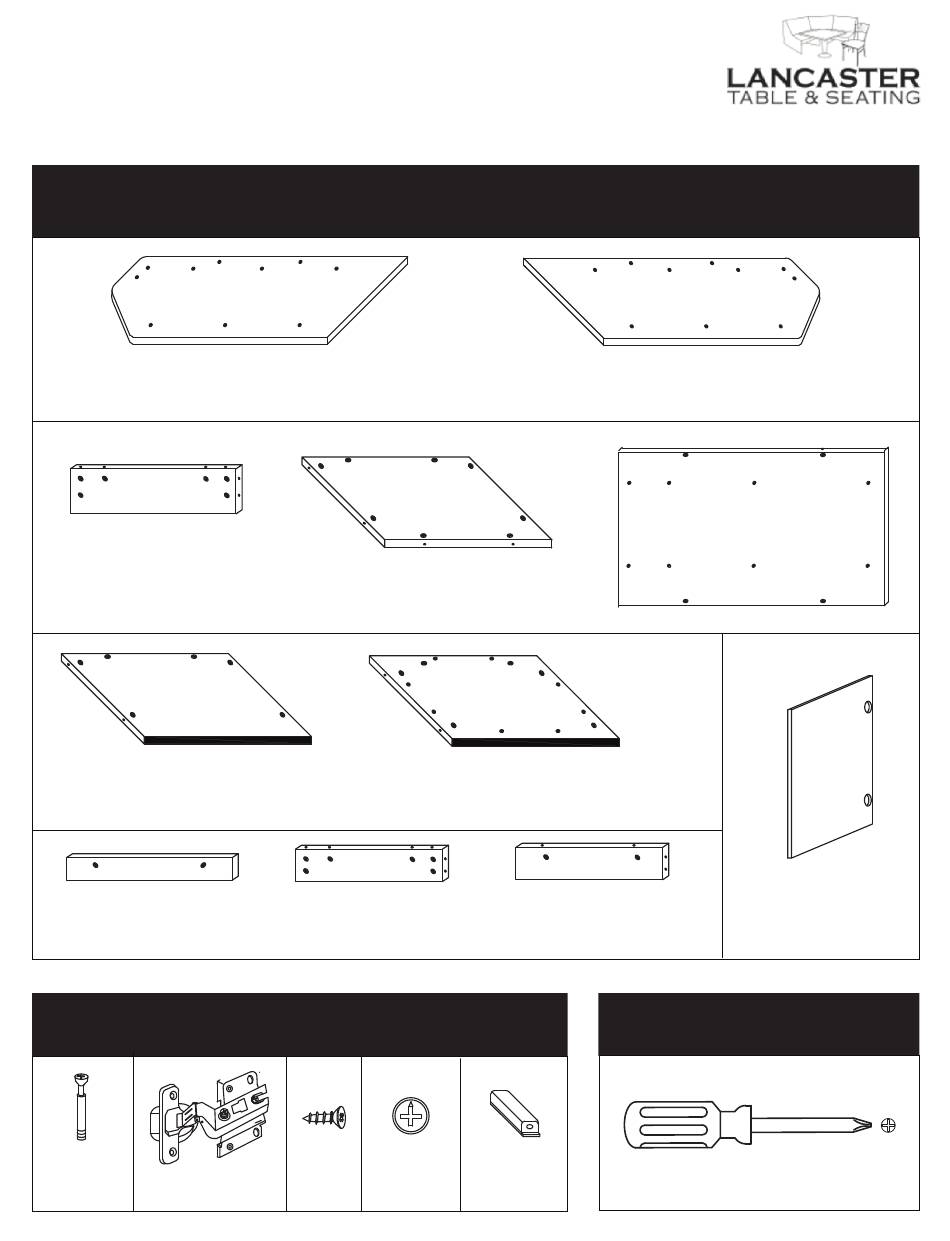

PART LIST:
ADEXA DIRECT LIMITED
(1) /1PC
Left Side Board
SIZE: 43in. x 23in.
(3) /1PC
Top Ledge
SIZE: 24in. x 8in.
(6)/1PC
Middle Shelf
SIZE: 24in. x 21in.
(9) /1PC
Top Shelf Ledge
SIZE: 24in. x 2in.
HARDWARE LIST:
(A)
Cam Lock
(B)
Screw (46PCS)
Hinge (4PCS)
(4)/1PC
Top Shelf
SIZE: 24in. x 21in.
SIZE: 24in. x 21in.
(10) /2PC
Base Board A
SIZE: 19in. x 4in.
(C)
(D)
Screws
Cam Lock
Magnetic Door
(24PCS)
(46PCS)
Catch (2PCS)
(2) /1PC
Right Side Board
SIZE: 43in. x 23in.
(7) /1PC
Bottom Shelf
(11) /2PC
Base Board B
SIZE: 23in. x 4in.
TOOLS REQUIRED:
(E)
Phillip's Head Screwdriver (not included)
(5) /1PC
Back Board
SIZE: 43in. x 24in.
(8) /2PC
Cabinet Doors
SIZE: 19in. x 12in.
Advertisement
Related Manuals for Lancaster 164WAITRS1BK
Summary of Contents for Lancaster 164WAITRS1BK
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO. 164WAITRS1BK 164WAITRS1WL PART LIST: ADEXA DIRECT LIMITED (1) /1PC (2) /1PC Left Side Board Right Side Board SIZE: 43in. x 23in. SIZE: 43in. x 23in. (5) /1PC Back Board (3) /1PC SIZE: 43in. x 24in. (4)/1PC Top Ledge SIZE: 24in.
- Page 2 ITEM NO. : 30194 STEP 1. Screw Cam Lock Screws (Ax28) onto left and right side boards (1) & (2), and back board (5). A=10PCS A=8PCS A=10PCS STEP 2. Insert cam lock nuts (Dx28) into Top Ledge (3), Top, Middle & Bottom Shelves (4,6 &...
- Page 3 ITEM NO. : 30194 STEP 4. STEP 7. Align left and right-side boards (1) and (2) onto the Attach 2 magnetic door catches (Ex2) to corresponding sides of shelves (3,4,6 and 7). underside of middle shelf with screws (Cx4). a. Once boards (1) and (2) are placed with cam lock screws (A) in corresponding cam lock nuts (D), tighten nuts with screw driver.
- Page 4 ITEM NO. : 30194 STEP 10. Use the rectangular piece made from step 9 to attach to bottom shelf (7) with shorter base board (10) parallel to the front of the waitress station. STEP 11. Finally, place door hinges (Bx2) onto the predrilled holes in cabinet door (8x1). Use screwdriver to screw (Cx4) into the predrilled holes.
