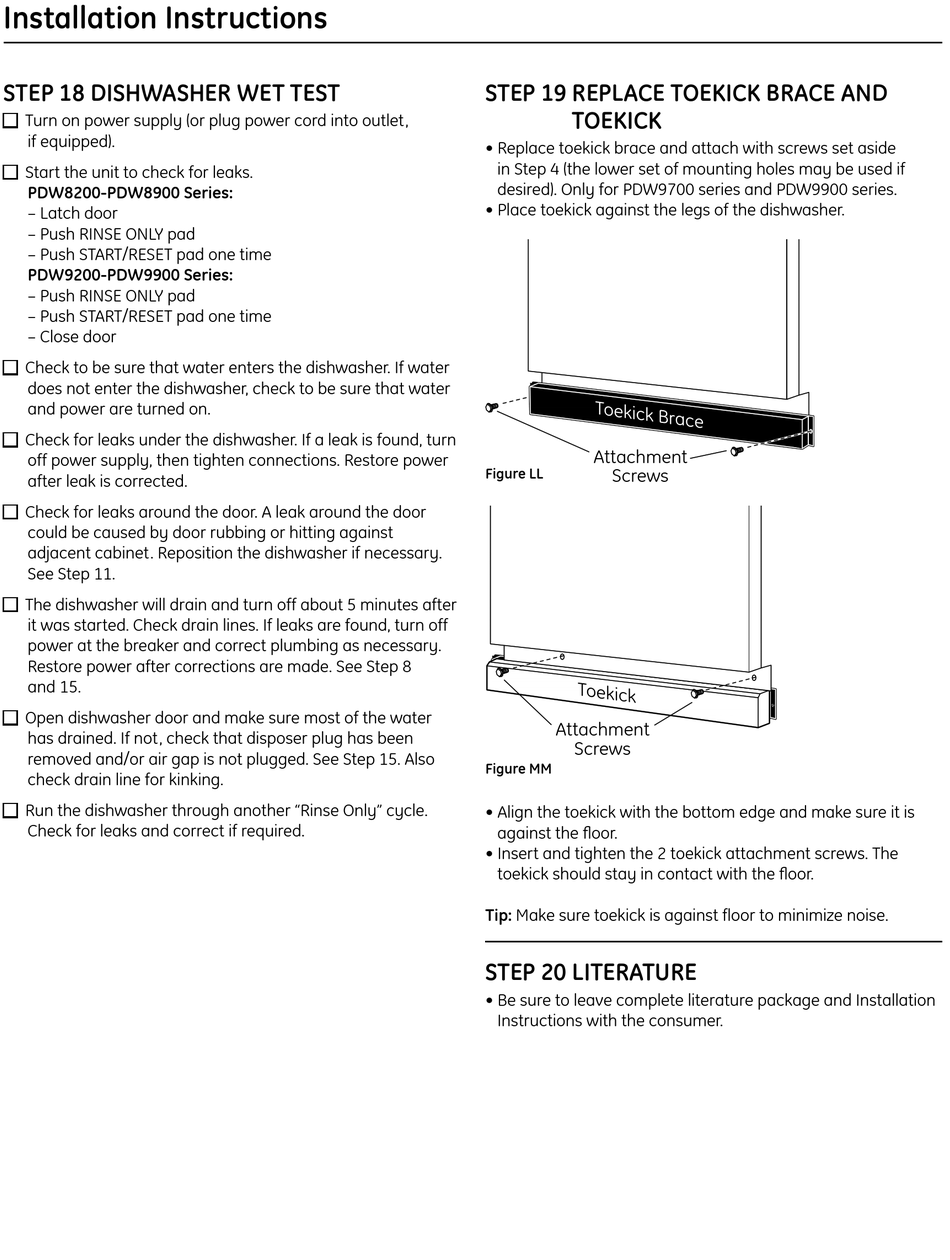

Installation Instructions
STEP 18 DISHWASHER WET TEST
Turn on power supply (or plug power cord into outlet,
■
if equipped).
Start the unit to check for leaks.
■
PDW8200-PDW8900 Series:
– Latch door
– Push RINSE ONLY pad
– Push START/RESET pad one time
PDW9200-PDW9900 Series:
– Push RINSE ONLY pad
– Push START/RESET pad one time
– Close door
Check to be sure that water enters the dishwasher. If water
■
does not enter the dishwasher, check to be sure that water
and power are turned on.
Check for leaks under the dishwasher. If a leak is found, turn
■
off power supply, then tighten connections. Restore power
after leak is corrected.
Check for leaks around the door. A leak around the door
■
could be caused by door rubbing or hitting against
adjacent cabinet. Reposition the dishwasher if necessary.
See Step 11.
The dishwasher will drain and turn off about 5 minutes after
■
it was started. Check drain lines. If leaks are found, turn off
power at the breaker and correct plumbing as necessary.
Restore power after corrections are made. See Step 8
and 15.
Open dishwasher door and make sure most of the water
■
has drained. If not, check that disposer plug has been
removed and/or air gap is not plugged. See Step 15. Also
check drain line for kinking.
Run the dishwasher through another "Rinse Only" cycle.
■
Check for leaks and correct if required.
STEP 19 REPLACE TOEKICK BRACE AND
TOEKICK
• Replace toekick brace and attach with screws set aside
in Step 4 (the lower set of mounting holes may be used if
desired). Only for PDW9700 series and PDW9900 series.
• Place toekick against the legs of the dishwasher.
� � � � � � � � �
����������
Figure LL
������
���������
� � � � � � �
����������
������
Figure MM
• Align the toekick with the bottom edge and make sure it is
against the floor.
���������
• Insert and tighten the 2 toekick attachment screws. The
toekick should stay in contact with the floor.
Tip: Make sure toekick is against floor to minimize noise.
STEP 20 LITERATURE
• Be sure to leave complete literature package and Installation
Instructions with the consumer.
� � � �
