Installation Instructions

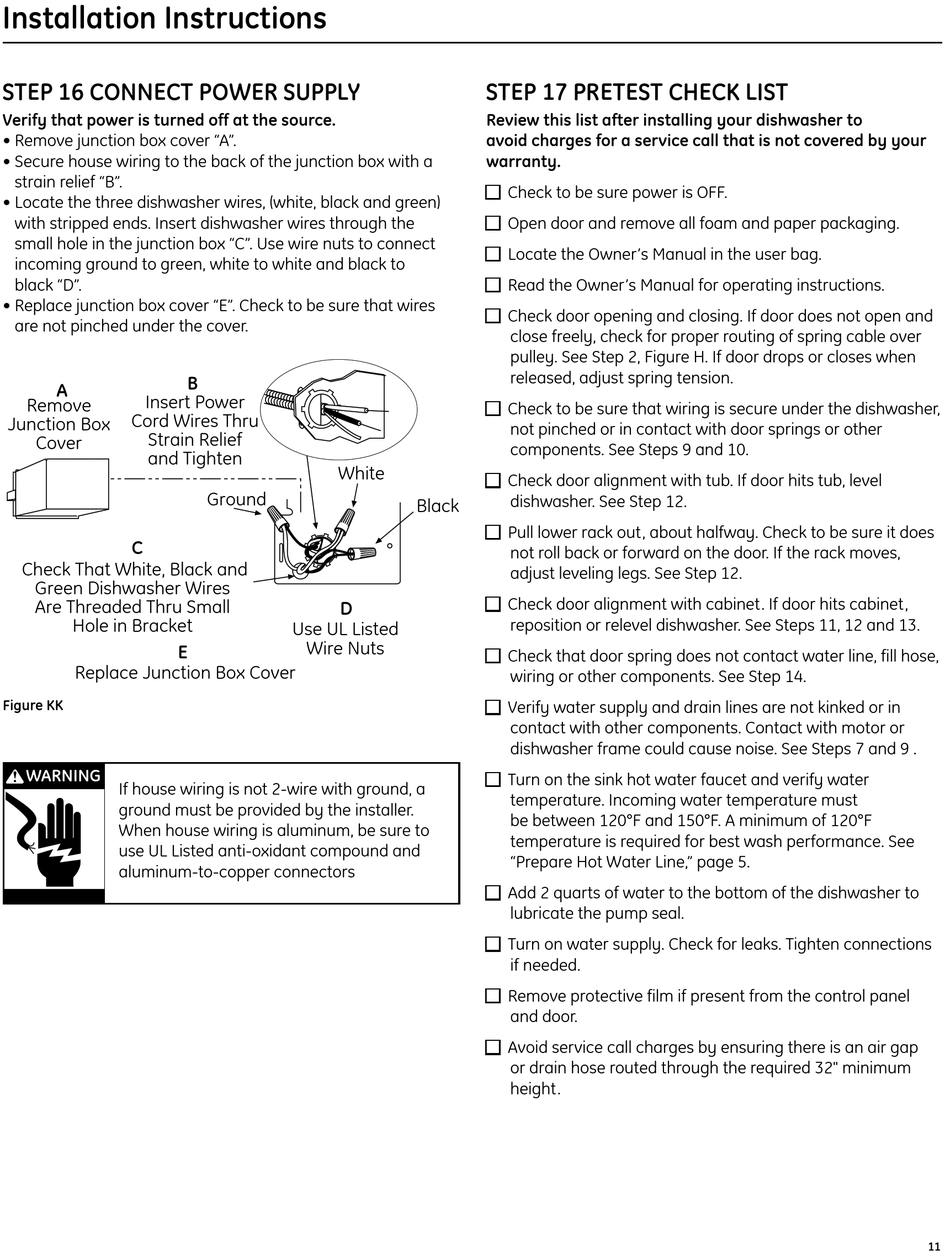

STEP 16 CONNECT POWER SUPPLY

Verify that power is turned off at the source.
• Remove junction box cover "A".
• Secure house wiring to the back of the junction box with a
strain relief "B".
• Locate the three dishwasher wires, (white, black and green)
with stripped ends. Insert dishwasher wires through the
small hole in the junction box "C". Use wire nuts to connect
incoming ground to green, white to white and black to
black "D".
• Replace junction box cover "E". Check to be sure that wires
are not pinched under the cover.
�
������������
������
���������������
������������
�������������
�����
�����������
�
����������������������������
����������������������
�����������������������
���������������
�
��������������������������
Figure KK
����������
WARNING
If house wiring is not 2-wire with ground, a
ground must be provided by the installer.
When house wiring is aluminum, be sure to
use UL Listed anti-oxidant compound and
aluminum-to-copper connectors
#282 French
�
�����
������
�
�������������
���������

STEP 17 PRETEST CHECK LIST

Review this list after installing your dishwasher to
avoid charges for a service call that is not covered by your
warranty.
Check to be sure power is OFF.
■
Open door and remove all foam and paper packaging.
■
Locate the Owner's Manual in the user bag.
■
Read the Owner's Manual for operating instructions.
■
Check door opening and closing. If door does not open and
■
close freely, check for proper routing of spring cable over
pulley. See Step 2, Figure H. If door drops or closes when
released, adjust spring tension.
Check to be sure that wiring is secure under the dishwasher,
■
not pinched or in contact with door springs or other
components. See Steps 9 and 10.
Check door alignment with tub. If door hits tub, level
■
dishwasher. See Step 12.
�����
Pull lower rack out, about halfway. Check to be sure it does
■
not roll back or forward on the door. If the rack moves,
adjust leveling legs. See Step 12.
Check door alignment with cabinet. If door hits cabinet,
■
reposition or relevel dishwasher. See Steps 11, 12 and 13.
Check that door spring does not contact water line, fill hose,
■
wiring or other components. See Step 14.
Verify water supply and drain lines are not kinked or in
■
contact with other components. Contact with motor or
dishwasher frame could cause noise. See Steps 7 and 9 .
Turn on the sink hot water faucet and verify water
■
temperature. Incoming water temperature must
be between 120°F and 150°F. A minimum of 120°F
temperature is required for best wash performance. See
"Prepare Hot Water Line," page 5.
Add 2 quarts of water to the bottom of the dishwasher to
■
lubricate the pump seal.
Turn on water supply. Check for leaks. Tighten connections
■
if needed.
Remove protective film if present from the control panel
■
and door.
Avoid service call charges by ensuring there is an air gap
■
or drain hose routed through the required 32" minimum
height.
